Digital name tag

dragonruler1000·Digital-name-tag·PCB/digital-name-tag.kicad_pcb

Digital name tag PCB layout, top view — open source Raspberry Pi board by dragonruler1000

About the Digital name tag PCB

Digital name tag is an open source Raspberry Pi PCB design by dragonruler1000, published on GitHub. It is a 2-layer board measuring 99 × 99 mm, with 16 components from 13 distinct parts.

Its main chip is the Primordia_Devboard, from the Raspberry Pi family. By type, the board carries 5 resistors, 4 switches, 3 diodes, 1 module, 1 connector and 1 battery holder.

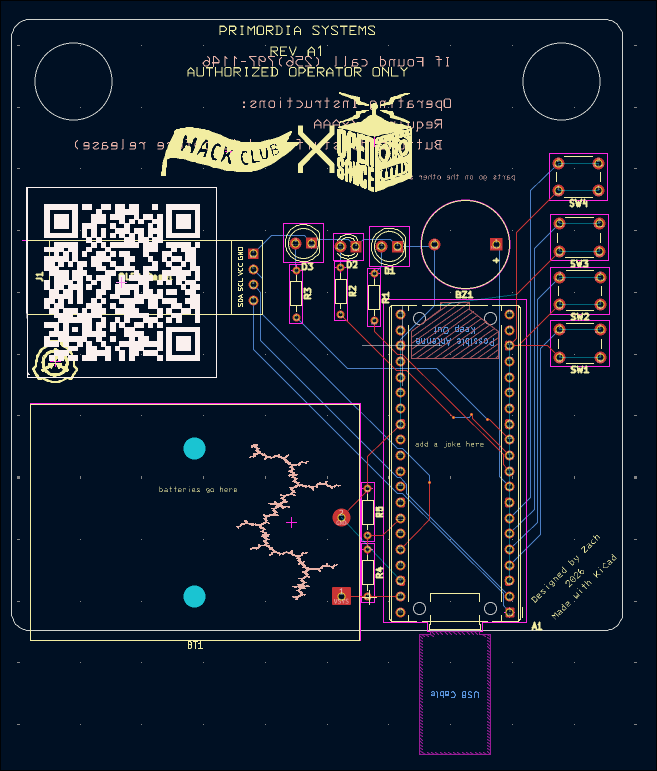

Digital name tag, from the project README
From the project README

Main components on the Digital name tag

Primordia_Devboard

Digital name tag bill of materials (BOM)

16 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Primordia_Devboard
A1
1
Conn_01x04
J1
1
Battery
BT1
1
Buzzer
BZ1
4
SW_Push
SW1, SW2, SW3, SW4
1
BLUE
D1
1
RED
D2
1
GREEN
D3
1
5.1Ω
R1
1
56Ω
R2
1
120Ω
R3
1
100kΩ
R4
1
68kΩ
R5

Digital name tag design files

The KiCad project lives in the dragonruler1000/Digital-name-tag repository on GitHub; these links point at the commit this page was built from.

Digital name tag: common questions

What microcontroller does the Digital name tag use?

The Digital name tag is built around the Primordia_Devboard, from the Raspberry Pi family.

How big is the Digital name tag PCB?

The Digital name tag measures 99 × 99 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Digital name tag?

16 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Digital name tag design files?

From the dragonruler1000/Digital-name-tag repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Digital name tag design in my own project?

The repository has no license, so all rights stay with dragonruler1000. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Digital name tag without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
