Haxo hw
cardonabits·haxo-hw
About the Haxo hw PCB
Haxo hw is an open source Raspberry Pi PCB design by cardonabits, published on GitHub under the Custom license license. It is a 2-layer board measuring 102.4 × 211.3 mm, with 38 components from 14 distinct parts.
Its main chip is the RASPBERRY_PI_2_3, from the Raspberry Pi family. Other key parts include the MPXV7007DP, MCP3221 and MAX98357. By type, the board carries 22 diodes, 5 resistors, 4 capacitors, 3 ICs, 3 connectors and 1 inductor.
It belongs with the audio, test & measurement and keyboards designs in this gallery.
From the project

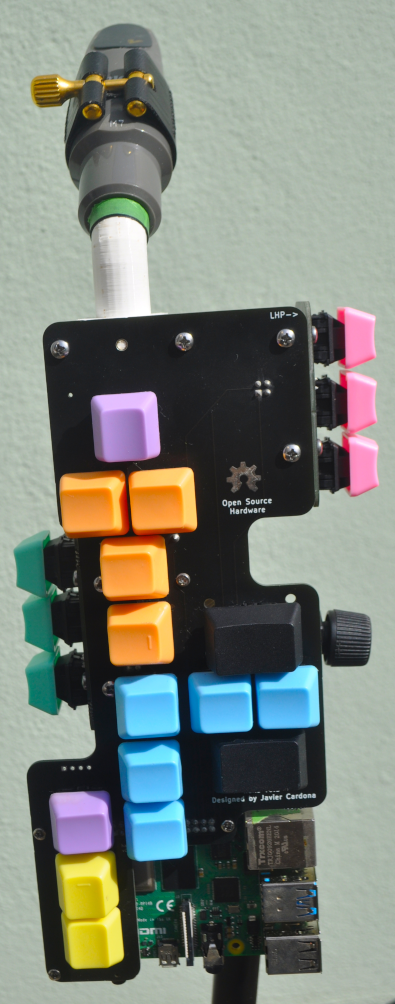

Haxophone, an electronic musical instrument that resembles a saxophone
- What is a haxophone - Project Goals Goals Non-Goals - How does it work? - Mechanical Design - Electrical Design Keyboard Audio Amplifier * Pinout - Tools/Stack - Software - Manufacturing - Bill of Materials - Assembly Instructions - TODO list - License and Contributions - Acknowledgements
A haxophone is an electronic musical instrument that resembles a saxophone. It is designed to be an inexpensive and fully customizable travel saxophone. You will never get the same expressiveness or depth of sound of a real saxophone. But with a haxophone you should be able to play alone or with friends…

Main components on the Haxo hw
Haxo hw bill of materials (BOM)
38 components, 14 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MPXV7007DP | SOT1693 | U1 |
| 1 | MCP3221 | SOT-23-5_HandSoldering | U2 |
| 1 | MAX98357 | TQFN-16-1EP_3x3mm_P0.5mm_EP1.23x1.23mm_ThermalVias | U4 |
| 1 | RASPBERRY_PI_2_3 Raspberry_Pi_2_3 | PinSocket_2x20_P2.54mm_Vertical | J3 |
| 1 | CONN_01X03_MALE Conn_01x03_Male | PinHeader_1x03_P2.54mm_Vertical | J4 |
| 1 | C18594 Line Out | C18594 | J5 |
| 22 | C8598 D_Small | D_SOD-123 | D1, D2, D3, D4, D5, D6, D7, D8 +14 |
| 1 | 600 | L_0805_2012Metric | FB1 |
| 1 | 470PF 470pF | C_0603_1608Metric | C1 |
| 1 | 0.1UF 0.1uF | C_0603_1608Metric | C2 |
| 1 | 10UF 10uF | C_0603_1608Metric | C3 |
| 1 | 220PF 220pF | C_0603_1608Metric | C4 |
| 2 | 4.7K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2 |
| 3 | 0805W8F1002T5E 10K | R_0805_2012Metric | R3, R4, R5 |
Haxo hw design files
The KiCad project lives in the cardonabits/haxo-hw repository on GitHub; these links point at the commit this page was built from.
Haxo hw: common questions
What microcontroller does the Haxo hw use?
The Haxo hw is built around the RASPBERRY_PI_2_3, from the Raspberry Pi family.
How big is the Haxo hw PCB?
The Haxo hw measures 102.4 × 211.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Haxo hw?
38 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Haxo hw design files?
From the cardonabits/haxo-hw repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Haxo hw design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
Can I test firmware for the Haxo hw without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
