About the Outsider PCB

Outsider is an open source RP2040/RP2350 PCB design by DreaM117er, published on GitHub under the MIT license. It is a 2-layer board measuring 278.8 × 76.2 mm, with 130 components from 19 distinct parts.

Its main chip is the Default: RP2040, from the RP2040/RP2350 family. By type, the board carries 49 relays, 49 diodes, 11 connectors, 4 jumpers, 4 switches and 2 resistors.

It belongs with the keyboards designs in this gallery.

From the project

OLKB Plank like with Trackpad mod.

「先鋒系列」是我個人基於「探索者三號」開發架構上的一個分支點，因爲在探索者三號的設計裡，在探索者三號的設計中，我將鍵盤主控區域「模組化」，使其觸控板與 ProMicro 主控模組能徹底沿用至後續作品。

先鋒一號的代號叫做 Mono，中文代號叫做「雙子姐妹」，考慮到有人在敲碗 zmk 韌體的開發，因此我另開了一把鍵盤先嘗試研究 zmk，順勢做出一套屬於無線版的韌體，成功之後就會回頭將「一號」的開發完成。

因爲是基於「探索者系列」，先鋒雖然比較侷限在「模組化」的區域做開發，但我不會捨棄掉「探索者」的自由度。相對的，這份自由反而讓我在開發的時候產生錯亂，算是一個小小的意外。

Plank 一直都是我非常喜歡的直列始祖，3 號也是基於 Plank 開發的鍵盤，我的想法很簡單：

- 輔助搭配： - about-zmk-XXX 教學文本。 - QMK Firmware：https://qmk.fm/ - VIAL：https://get.vial.today/ - ZMK Firmware：https://zmk.dev/ - KLE：https://www.keyboard-layout-editor.com/#/ - nRF Connect SDK： - Android…

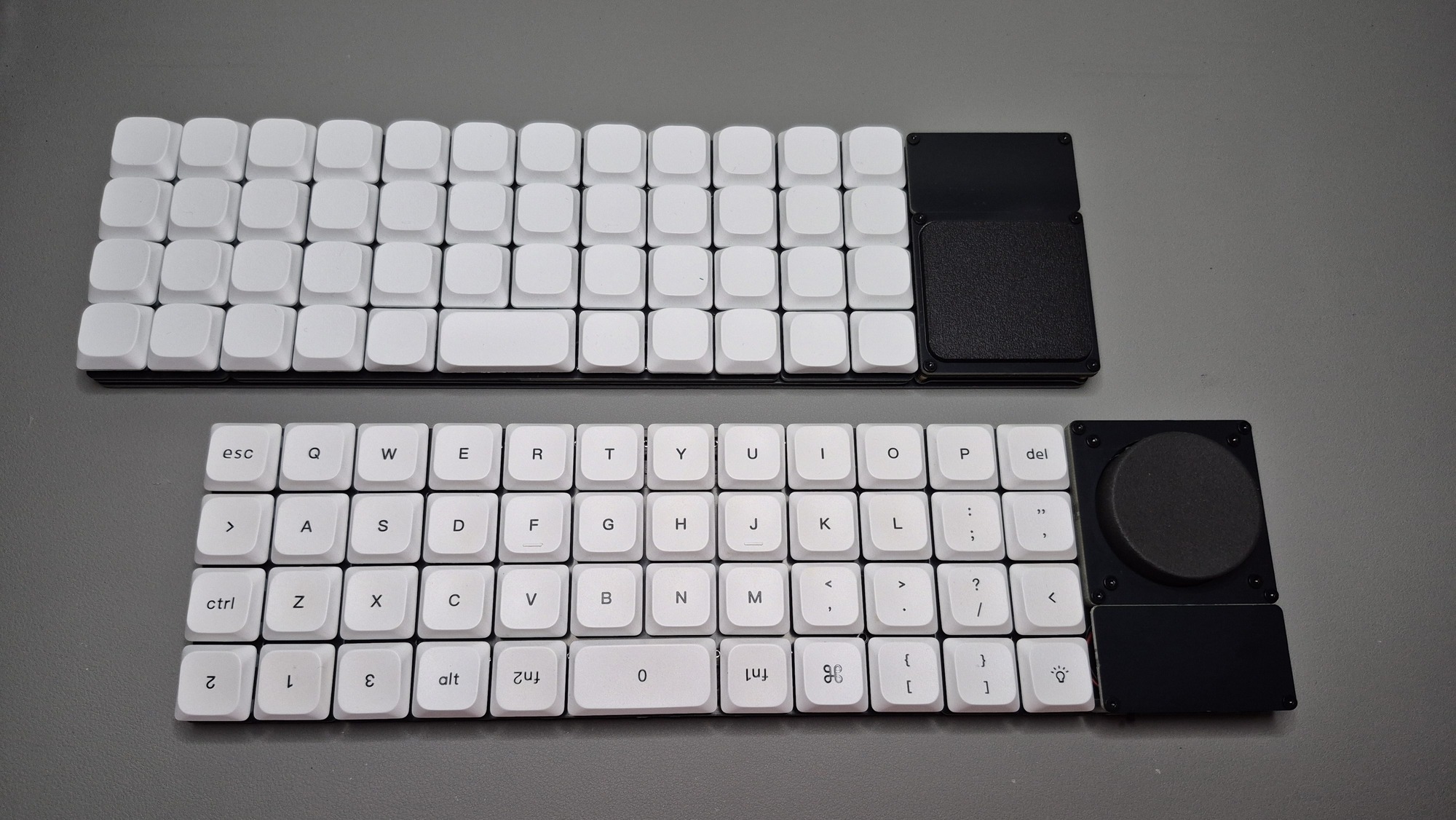

Outsider, from the project README — From the project README

Main components on the Outsider

Default: RP2040

Outsider bill of materials (BOM)

130 components, 19 distinct parts.

Qty	Part	Footprint	Refs
1	Default: RP2040	MCU_ProMicro_13p_dual_3rd	U1
1	Test1	PinHeader_1x04_P2.54mm_Vertical	J1
2	FFC-0.5mm, 12p	Hirose_FH12-12S-0.5SH_1x12-1MP_P0.50mm_Horizontal	J2, J3
1	PH2.0-2pin	JST_PH_S2B-PH-K_1x02_P2.00mm_Horizontal_dual	J4
2	FFC-0.5mm, 6p	Hirose_FH12-6S-0.5SH_1x06-1MP_P0.50mm_Horizontal	J5, J6
1	~	PinHeader_1x02_P2.54mm_Vertical	J7
1	Test2	PinHeader_1x04_P2.54mm_Vertical	J8
2	Conn_01x04_Socket	PinHeader_1x04_P2.54mm_Vertical	J9, J10
1	Conn_01x02_Socket	PinHeader_1x02_P2.54mm_Vertical	J11
2	PWR	Jumper_1-3_SingleSide	JP1, JP2
2	VCC	SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm	JP3, JP4
48	LP	SW_KLP12_GLP3.0_MX_1.00u_dual_oneside3	K1, K2, K3, K4, K5, K6, K7, K8 +40
1	TrackPad_Module	Explorerkb_Trackpad_Module_with_EC11	K49
10	LP	SW_KLP12_GLP3.0_MX_1.00u_dual_oneside3	KE1, KE2, KE3, KE4, KE5, KE6, KE7, KE8 +2
1	RST	ResetSW_1side	SW1
2	MSKT-12D14	SW_SPDT_MSKT-12D14_SMD_dual	SW2, SW3
1	BAT	SW_Push_SPST_NO_Alps_SKRK_handsolder_dual	SW4
49	1N4148_SMD	D_SOD-123_handsolder_dual	D1, D2, D3, D4, D5, D6, D7, D8 +41
2	4.7k	R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal	R1, R2

Outsider design files

The KiCad project lives in the DreaM117er/Vanguard-Keyboard-Outsider repository on GitHub; these links point at the commit this page was built from.

Layoutfile/pcb/v1/pcb/outsider.kicad_pcb
Schematicfile/pcb/v1/pcb/outsider.kicad_sch

Outsider: common questions

What microcontroller does the Outsider use?

The Outsider is built around the Default: RP2040, from the RP2040/RP2350 family.

How big is the Outsider PCB?

The Outsider measures 278.8 × 76.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Outsider?

130 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the Outsider design files?

From the DreaM117er/Vanguard-Keyboard-Outsider repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Outsider design in my own project?

Yes, under the terms of its MIT license, which DreaM117er chose for the repository.

Can I test firmware for the Outsider without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
