S11639-01 TeensyCarrier

drmcnelson·S11639-01-Linear-CCD-PCB-and-Code·Rev0Boards/TeensyCarrier/S11639-01_TeensyCarrier.kicad_pcb

S11639-01 TeensyCarrier PCB layout, top view — open source NXP board by drmcnelson

About the S11639-01 TeensyCarrier PCB

S11639-01 TeensyCarrier is an open source NXP PCB design by drmcnelson, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 70 × 50 mm, with 38 components from 9 distinct parts.

Its main chip is the Teensy4.0, from the NXP family. By type, the board carries 19 resistors, 10 diodes, 5 connectors, 2 capacitors, 1 IC and 1 inductor.

It belongs with the sensors designs in this gallery.

From the project

PCB and Code (Teensy 4) for the Hamamatsu S11639-01 Linear CCD with 16 bit ADC and SPI interface

Original repository github.com/drmcnelson/S11639-01-Linear-CCD-PCB-and-Code

This repo provides electronics, firmware and host software for the Hamamatsu S11639-01, a linear CCD sensor that has high sensitivity at 1300V/lx s and low dark noise at 0.2mV (for a 10msec exposure). With saturation at 2V, the dynamic range is 10,000. The electrical design is implemented as a two board set, sensor and controller, for mechanical stability and interchangeability. The sensor board has the socketed sensor, logic gates to drive the pins, and a low noise all differential analog section with a high…

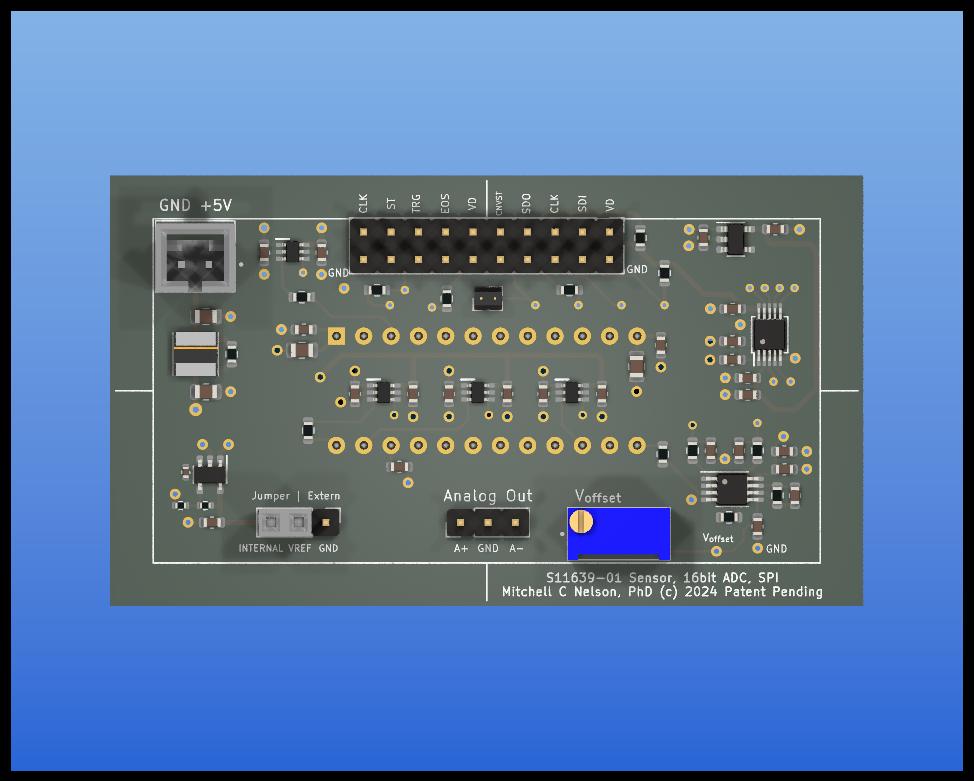

S11639-01 TeensyCarrier, from the project README
From the project README

Main components on the S11639-01 TeensyCarrier

Teensy4.0

S11639-01 TeensyCarrier bill of materials (BOM)

38 components, 9 distinct parts.

QtyPartRefs
1
Teensy4.0
U1
2
Conn_02x10_Odd_Even
J1, J2
1
Conn_01x16_Male
J3
2
0705430001
705430001
J4, J5
10
BAV99
D1, D2, D3, D4, D5, D6, D7, D8 +2
1
10uH
L1
2
22uF
C1, C5
11
100R
R1, R2, R3, R4, R5, R6, R7, R8 +3
8
49.9
R12, R13, R14, R15, R16, R17, R18, R19

S11639-01 TeensyCarrier design files

The KiCad project lives in the drmcnelson/S11639-01-Linear-CCD-PCB-and-Code repository on GitHub; these links point at the commit this page was built from.

S11639-01 TeensyCarrier: common questions

What microcontroller does the S11639-01 TeensyCarrier use?

The S11639-01 TeensyCarrier is built around the Teensy4.0, from the NXP family.

How big is the S11639-01 TeensyCarrier PCB?

The S11639-01 TeensyCarrier measures 70 × 50 mm, has 4 copper layers and is 4.69 mm thick.

How many components are on the S11639-01 TeensyCarrier?

38 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the S11639-01 TeensyCarrier design files?

From the drmcnelson/S11639-01-Linear-CCD-PCB-and-Code repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the S11639-01 TeensyCarrier design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the S11639-01 TeensyCarrier without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
