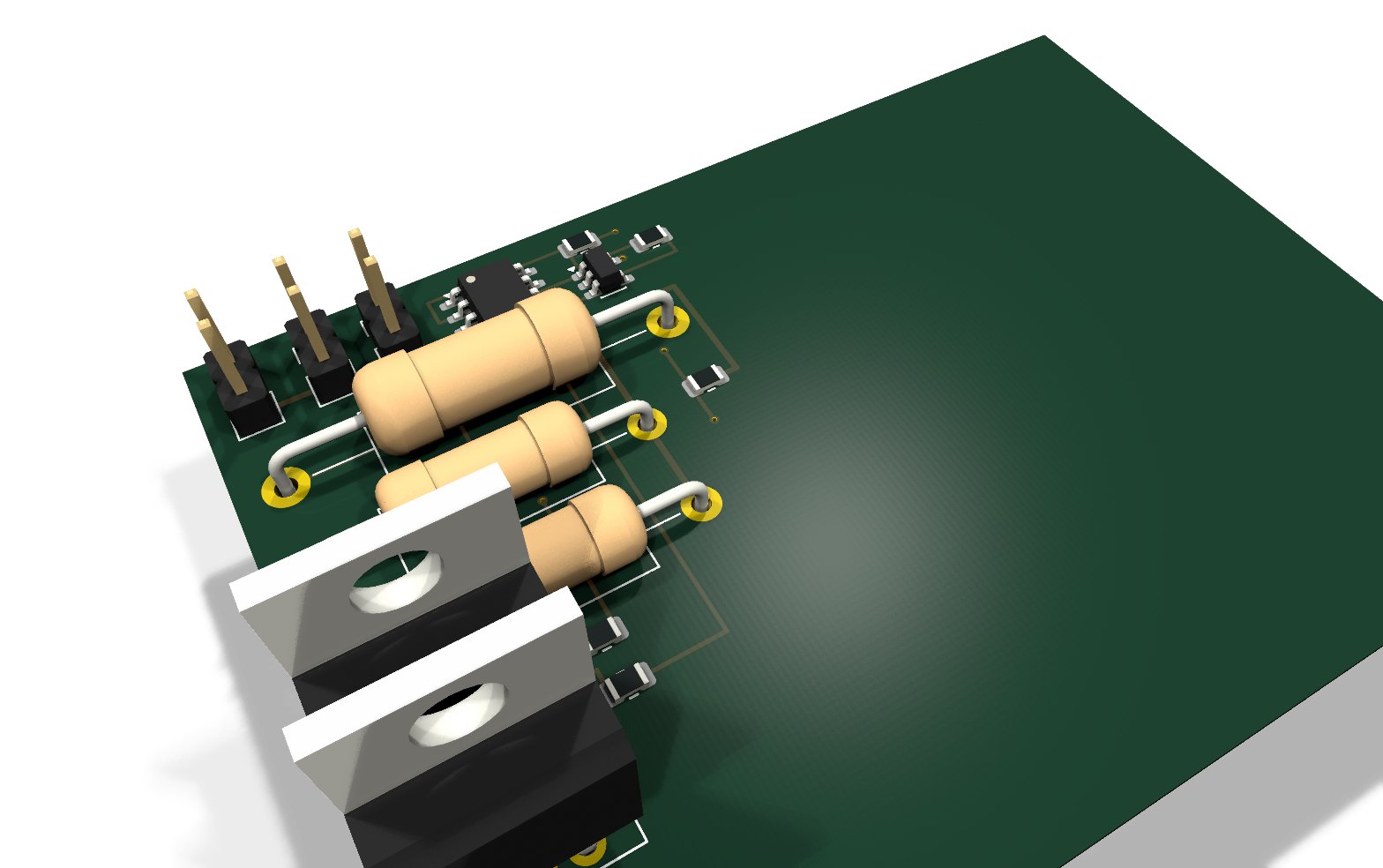

About the Protected programmable current output PCB
Protected programmable current output is an open source PCB design by dshills, published on GitHub under the MIT license. It is a 2-layer board measuring 70 × 50 mm, with 15 components from 10 distinct parts.
Other key parts include the LM358DR and OPA992IDBVR. By type, the board carries 8 resistors, 3 connectors, 2 ICs and 2 transistors.
From the project
AI-assisted KiCad design toolkit with Go CLI, direct schematic/PCB writers, validation, and pinmap checks.
This is KiCadAI's featured public demonstration: a behavior-only request for a 0.1 A/V programmable current output, evaluated across supply, load, startup, temperature, and safe-operating-area constraints.
The input contains no components, topology, internal nets, values, placement, or routes. KiCadAI derives and ranks physical architectures, selects catalog parts and values, generates native KiCad files, routes the board, invokes KiCad ERC and strict DRC, checks connectivity and writer round trips, and then repeats the complete physical run to prove deterministic output.

Main components on the Protected programmable current output
Protected programmable current output bill of materials (BOM)
15 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM358DR Texas Instruments | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | OPA992IDBVR Texas Instruments | SOT-23-5 | U2 |
| 2 | D45H11G onsemi | TO-220-3_Vertical | Q1, Q2 |
| 1 | TSW-102-07-L-S 1x02 2.54 mm pin header Samtec | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | TSW-104-07-L-S 1x02 2.54 mm pin header Samtec | PinHeader_1x02_P2.54mm_Vertical | J2 |
| 1 | TSW-106-07-L-S 1x02 2.54 mm pin header Samtec | PinHeader_1x02_P2.54mm_Vertical | J3 |
| 2 | AC03000002207JAC00 220m Vishay | R_Axial_DIN0414_L11.9mm_D4.5mm_P20.32mm_Horizontal | R1, R2 |
| 1 | CPF310R000BE14 10ohm Vishay | R_Axial_DIN0614_L14.3mm_D5.7mm_P25.40mm_Horizontal | R3 |
| 4 | TNPW080510K0BEEA 10k Vishay | R_0805_2012Metric | R4, R5, R6, R7 |
| 1 | CRCW080547R0FKEA 47ohm Vishay | R_0805_2012Metric | R8 |
Protected programmable current output design files
The KiCad project lives in the dshills/KiCadAI repository on GitHub; these links point at the commit this page was built from.
Protected programmable current output: common questions
How big is the Protected programmable current output PCB?
The Protected programmable current output measures 70 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Protected programmable current output?
15 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Protected programmable current output design files?
From the dshills/KiCadAI repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Protected programmable current output design in my own project?
Yes, under the terms of its MIT license, which dshills chose for the repository.
