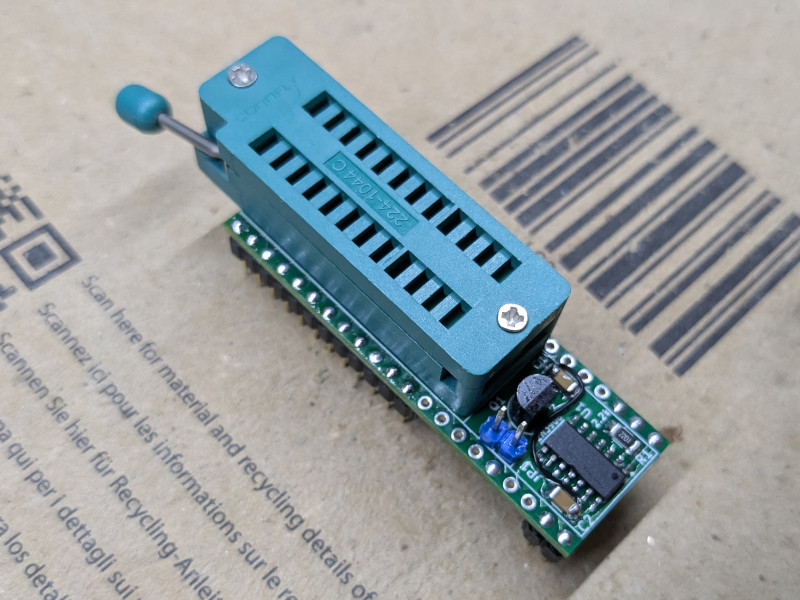

Pod pal
About the Pod pal PCB
Pod pal is an open source PCB design by DuPAL-PAL-DUmper, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 17.4 × 53.9 mm, with 8 components from 7 distinct parts.
Other key parts include the 74ACT04. By type, the board carries 2 connectors, 2 capacitors, 1 IC, 1 transistor, 1 jumper and 1 resistor.
From the project
This repository contains the KiCad files and the gerber files for the DuPAL boards.
Any use of this project is under your own responsibility. You will be responsible of checking the correct construction and functionality of your board and the compatiblity of the chips You will insert into it. By using this project You will agree that I cannot be held responsible if it will destroy any of your devices, damage your computer, burn down your house or whatever.
Main components on the Pod pal
Pod pal bill of materials (BOM)
8 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74ACT04 | SO-14_3.9x8.65mm_P1.27mm | U1 |
| 1 | 2N3906 | TO-92_Inline | Q1 |
| 1 | dupico | DIP-42_W15.24mm | J1 |
| 1 | GAL | DIP_Socket-24_W4.3_W5.08_W7.62_W10.16_W10.9_3M_224-5248-00-0602J | J2 |
| 1 | Force VCC | PinSocket_1x02_P2.54mm_Vertical | JP1 |
| 2 | 100nF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C2 |
| 1 | 1k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1 |
Pod pal design files
The KiCad project lives in the DuPAL-PAL-DUmper/DuPAL_Board repository on GitHub; these links point at the commit this page was built from.
Pod pal: common questions
How big is the Pod pal PCB?
The Pod pal measures 17.4 × 53.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pod pal?
8 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pod pal design files?
From the DuPAL-PAL-DUmper/DuPAL_Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Pod pal design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which DuPAL-PAL-DUmper chose for the repository.
