DuPal DIP

DuPAL-PAL-DUmper·DuPAL_Board·board/DuPal_DIP/DuPal_DIP.kicad_pcb

DuPal DIP PCB layout, top view — open source AVR/Arduino board by DuPAL-PAL-DUmper

About the DuPal DIP PCB

DuPal DIP is an open source AVR/Arduino PCB design by DuPAL-PAL-DUmper, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 113 × 78.7 mm, with 50 components from 25 distinct parts.

Its main chip is the ATmega8A-PU, from the AVR/Arduino family. Other key parts include the 74HC595, 20 Pin PAL, MAX232, L7805 and 74HC166. By type, the board carries 17 capacitors, 14 resistors, 9 ICs, 5 diodes, 2 connectors and 2 switches.

From the project

This repository contains the KiCad files and the gerber files for the DuPAL boards.

Any use of this project is under your own responsibility. You will be responsible of checking the correct construction and functionality of your board and the compatiblity of the chips You will insert into it. By using this project You will agree that I cannot be held responsible if it will destroy any of your devices, damage your computer, burn down your house or whatever.

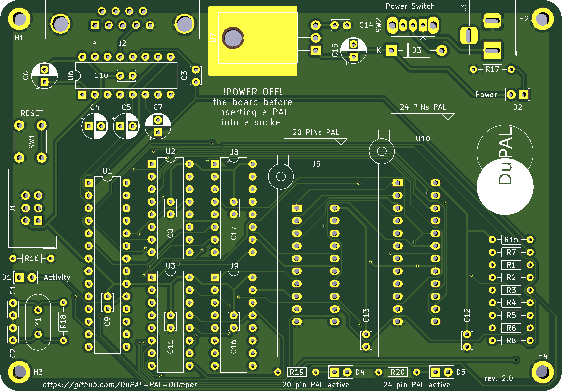

DuPal DIP, from the project README
From the project README

Main components on the DuPal DIP

ATmega8A-PU74HC59520 Pin PALMAX232L780574HC16624 Pin PAL

DuPal DIP bill of materials (BOM)

50 components, 25 distinct parts.

QtyPartRefs
1
ATmega8A-PU
U1
3
74HC595
U2, U3, U9
1
20 Pin PAL
U5
1
MAX232
U6
1
L7805
U7
1
74HC166
U8
1
24 Pin PAL
U10
1
8Mhz
Y1
1
AVR-ISP-6
J1
1
Power IN
J3
1
SW_Push
SW1
1
Power
SW2
1
DATA_LED
D1
1
POWER_LED
D2
1
1N4001
D3
1
PAL20_LED
D4
1
PAL24_LED
D5
2
22pF
C1, C2
10
100nF
C3, C8, C9, C10, C11, C12, C13, C14 +2
4
1.0uF
C4, C5, C6, C7
Show 5 more
QtyPartRefs
1
0.22uF
C15
9
10K
R1, R2, R3, R4, R5, R6, R7, R8 +1
3
680
R16, R19, R20
1
1.2K
R17
1
1M
R18

DuPal DIP design files

The KiCad project lives in the DuPAL-PAL-DUmper/DuPAL_Board repository on GitHub; these links point at the commit this page was built from.

DuPal DIP: common questions

What microcontroller does the DuPal DIP use?

The DuPal DIP is built around the ATmega8A-PU, from the AVR/Arduino family.

How big is the DuPal DIP PCB?

The DuPal DIP measures 113 × 78.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DuPal DIP?

50 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the DuPal DIP design files?

From the DuPAL-PAL-DUmper/DuPAL_Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DuPal DIP design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which DuPAL-PAL-DUmper chose for the repository.

Can I test firmware for the DuPal DIP without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
