Re5-macropad

e3w2q·re5-macropad·pcb/re5.kicad_pcb

Re5-macropad PCB layout, top view — open source AVR/Arduino board by e3w2q

About the Re5-macropad PCB

Re5-macropad is an open source AVR/Arduino PCB design by e3w2q, published on GitHub under the MIT license. It is a 2-layer board measuring 95.3 × 57.2 mm, with 7 components from 3 distinct parts.

Its main chip is the ProMicro, from the AVR/Arduino family. By type, the board carries 5 switches, 1 IC and 1 connector.

It belongs with the keyboards designs in this gallery.

From the project

Macropad with 5 rotary encoders

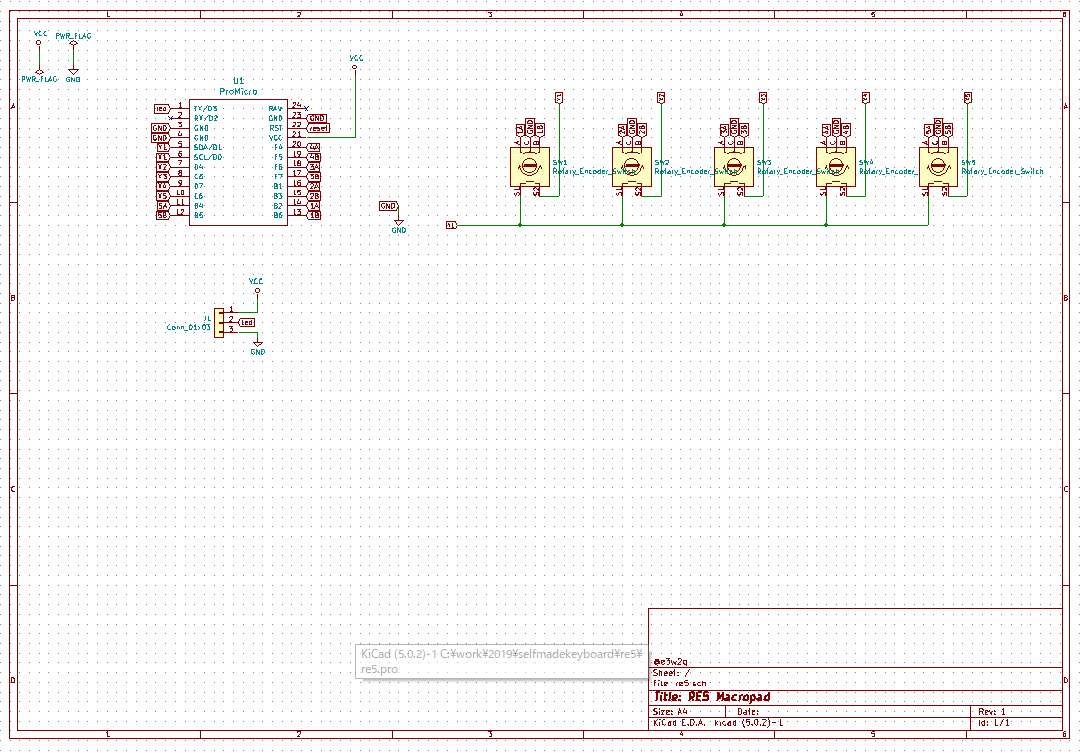

Re5-macropad, from the project README
From the project README

Main components on the Re5-macropad

ProMicro

Re5-macropad bill of materials (BOM)

7 components, 3 distinct parts.

QtyPartRefs
1
ProMicro
U1
1
Conn_01x03
J1
5
Rotary_Encoder_Switch
SW1, SW2, SW3, SW4, SW5

Re5-macropad design files

The KiCad project lives in the e3w2q/re5-macropad repository on GitHub; these links point at the commit this page was built from.

Re5-macropad: common questions

What microcontroller does the Re5-macropad use?

The Re5-macropad is built around the ProMicro, from the AVR/Arduino family.

How big is the Re5-macropad PCB?

The Re5-macropad measures 95.3 × 57.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Re5-macropad?

7 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Re5-macropad design files?

From the e3w2q/re5-macropad repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Re5-macropad design in my own project?

Yes, under the terms of its MIT license, which e3w2q chose for the repository.

Can I test firmware for the Re5-macropad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
