About the EduSpectro4X PCB

EduSpectro4X is an open source RP2040/RP2350 PCB design by EduSpectro, published on GitHub under the MIT license. It is a 2-layer board measuring 57 × 47 mm, with 13 components from 10 distinct parts.

Its main chip is the RP2350-Zero, from the RP2040/RP2350 family. Other key parts include the NJM2732 and NSI45020JZ-D. By type, the board carries 4 connectors, 3 capacitors, 2 ICs, 2 resistors and 1 switch.

From the project

ファームウェア・電子回路

概要: 「RP2350とC12880MAを組み合わせた分光器の心臓部です」分光性能諸元: 測定波長範囲: 340 nm 〜 850 nm（紫外線〜可視光〜近赤外線）物理画素数: 288 画素（センサー本来の受光素子数）論理出力点数: 1149 点（4倍オーバーサンプリング間）波長分解能 (FWHM): 約 10 nm 〜 15 nm 階調分解能: 16bit相当（12bit ADC × 10回累積処理）最短露光時間: 20 ms（0.02秒）データ更新間隔: 約 20 ms 〜（露光設定に依存）特徴: PIOによる高速制御、10回累積計測してによるノイズ軽減、Catmull-Rom補間など。必要な環境: Arduino IDEのバージョン1.8.19 導入が必要なボードマネージャー（Raspberry Pi Pico/RP2350）ボード：Waveshare RP2350 Zero、ハードウェアについて**:

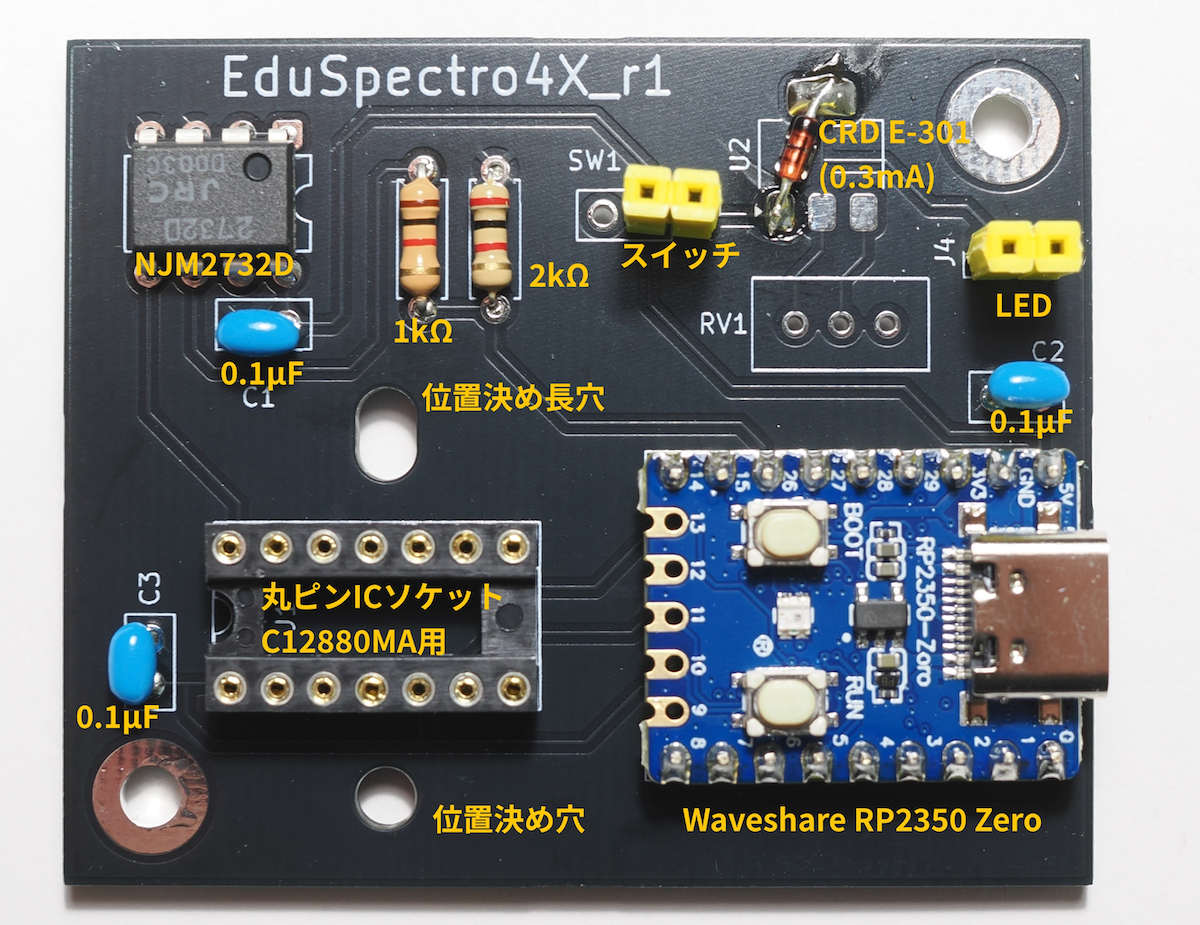

EduSpectro4X, from the project README — From the project README

Main components on the EduSpectro4X

NJM2732NSI45020JZ-D

EduSpectro4X bill of materials (BOM)

13 components, 10 distinct parts.

Qty	Part	Footprint	Refs
1	NJM2732	DIP-8_W7.62mm	U1
1	NSI45020JZ-D	SOT-223-3_TabPin2	U2
1	Conn_02x07_Counter_Clockwise	DIP-14_W7.62mm_Socket	J1
2	RP2350-Zero	PinHeader_1x09_P2.54mm_Vertical	J2, J3
1	Conn_01x02_Pin	PinHeader_1x02_P2.54mm_Vertical	J4
1	500	Potentiometer_Bourns_3296W_Vertical	RV1
1	SW_SPDT	PinHeader_1x03_P2.54mm_Vertical	SW1
3	0.1u	C_Disc_D5.0mm_W2.5mm_P2.50mm	C1, C2, C3
1	1k	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R1
1	2k	R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal	R2

EduSpectro4X design files

The KiCad project lives in the EduSpectro/EduSpectro4X repository on GitHub; these links point at the commit this page was built from.

EduSpectro4X: common questions

What microcontroller does the EduSpectro4X use?

The EduSpectro4X is built around the RP2350-Zero, from the RP2040/RP2350 family.

How big is the EduSpectro4X PCB?

The EduSpectro4X measures 57 × 47 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the EduSpectro4X?

13 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the EduSpectro4X design files?

From the EduSpectro/EduSpectro4X repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the EduSpectro4X design in my own project?

Yes, under the terms of its MIT license, which EduSpectro chose for the repository.
