About the Emrick PCB

Emrick is an open source TI MSP430/CC PCB design by eduxstad, published on GitHub. It is a 4-layer board measuring 44.4 × 59.3 mm, with 90 components from 59 distinct parts.

Its main chip is the C84353, from the TI MSP430/CC family. Other key parts include the C436096, C376005, C964632, C152596 and C140288. By type, the board carries 34 capacitors, 25 resistors, 10 inductors, 6 ICs, 4 connectors and 3 transistors.

It belongs with the wearables designs in this gallery.

From the project

AAMB wearable light strip redesign

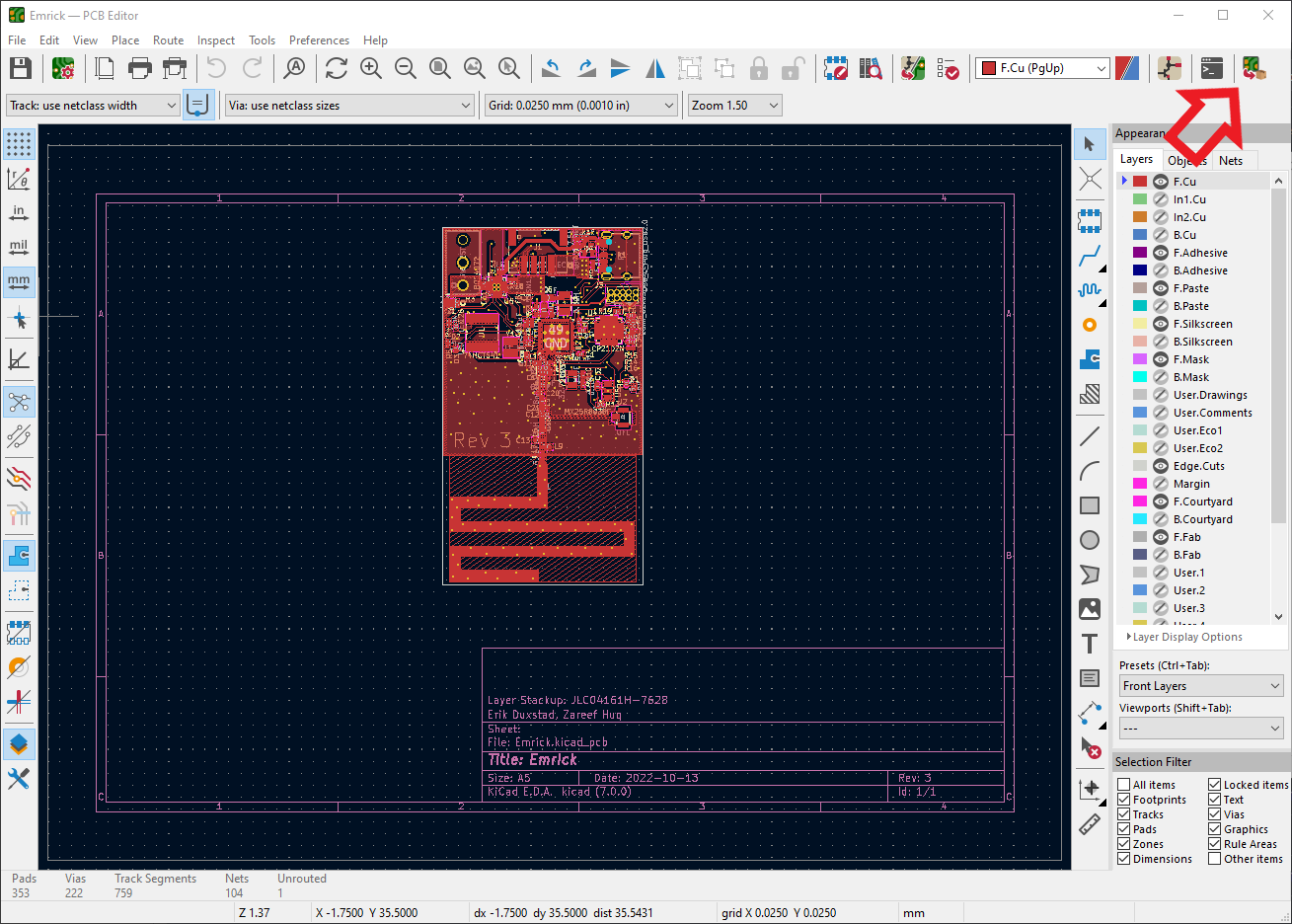

1. Install the Fabrication Toolkit plugin. This automates the PCB fabrication process. 2. Once you've verified that the board has no unexpected errors in the electrical rules check and that the silkscreen is correct (any labels/versions updated, etc), press the fabrication button to generate the gerber and placement files in the production folder. Note that this will also create a bill of materials (BOM) for the PCB. However, the JLCPCB part numbers are not currently added to schematic (there are instructions here) so the latest BOM is kept in bom.xls. 3. Update the BOM file in bom.xsl with…

Emrick, from the project README
From the project README

Main components on the Emrick

C436096C84353C376005C964632C152596C140288

Emrick bill of materials (BOM)

90 components, 59 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C436096
74HCT541
U1
1
C84353
CC1312R1F3RGZ
U2
1
C376005
TPS61230ARNSR
U3
1
C964632
CP2102N
U4
1
C152596
MX25R8035F
U5
1
C140288
BQ24072
U6
3
C435876
Q_NMOS_GSD
Q1, Q2, Q3
1
C5160135
48MHz
Y1
1
C32346
32.768kHz
Y2
1
C265073
LED_STRIP_CONNECTOR
J1
1
C2895038
Conn_02x05_Odd_Even
J3
1
BATT_CONN
J4
1
C2927037
USB_C_Plug_USB2.0
P1
1
Antenna
AE1
1
C2876010
SW_SPST
SW1
1
C2921116
SW_Push_LED
SW2
2
C2856703
LED
D2, D3
1
C3040626
SP0503BAHT
D4
1
C82155
BLM18HE152SN1
FB1
1
C89023
6.8uH
L1
Show 39 more
QtyPartRefs
2
C162546
7.5nH
L2, L7
1
C275278
27nH
L3
2
C32041
6.8nH
L4, L5
1
C531332
3.3nH
L6
1
C910040
1.5uH
L8
1
?
L9
11
C1525
0.1uF
C1, C2, C3, C5, C7, C8, C15, C26 +3
4
C59461
22uF
C4, C6, C29, C30
1
C1547
12pF
C9
1
C1548
15pF
C10
2
C52052
3.6pF
C11, C18
1
?
C13
3
C23733
4.7uF
C14, C31, C34
2
C1546
100pF
C16, C23
1
C1574
5.1pF
C17
1
C1561
2.7pF
C19
1
C82154
6.2pF
C20
1
C1564
3pF
C21
1
C52923
1uF
C22
1
C19702
10uF
C25
1
C15195
10nF
C27
1
C32949
10pF
C28
1
C1550
1 uF
C33
1
C11702
1.0K
R1
2
C25741
100k
R2, R12
3
C171694
309k
R3, R10, R21
2
C25867
1.5k
R4, R5
1
C25905
5.1k
R6
1
C22833
1.13k
R7
1
C273748
2.21k
R8
1
C3016328
8.87k
R9
4
C25744
10k
R11, R14, R15, R16
1
C25879
2.2k
R13
1
C3015846
22.1k
R17
1
C273709
1.18k
R18
1
C11702
1k
R19
1
C3015870
47.5k
R20
3
10k
R22, R23, R24
1
5.1k
R25

Emrick design files

The KiCad project lives in the eduxstad/Emrick repository on GitHub; these links point at the commit this page was built from.

Emrick: common questions

What microcontroller does the Emrick use?

The Emrick is built around the C84353, from the TI MSP430/CC family.

How big is the Emrick PCB?

The Emrick measures 44.4 × 59.3 mm, has 4 copper layers and is 4.69 mm thick.

How many components are on the Emrick?

90 components, from 59 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Emrick design files?

From the eduxstad/Emrick repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Emrick design in my own project?

The repository has no license, so all rights stay with eduxstad. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Emrick without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug TI MSP430/CC firmware against it before you order a PCB.
