Toniebox

toniebox-reverse-engineering·toniebox-pcb·v1-v2/hardware/toniebox-v1v2.kicad_pcb

Toniebox PCB layout, top view — open source TI MSP430/CC board by toniebox-reverse-engineering

About the Toniebox PCB

Toniebox is an open source TI MSP430/CC PCB design by toniebox-reverse-engineering, published on GitHub. It is a 2-layer board measuring 88 × 102 mm, with 11 components from 7 distinct parts.

Its main chip is the CC3200R1M2RGCR, from the TI MSP430/CC family. Other key parts include the TLV320DAC3100, IS25LQ032B-JNLE, MMA8451QT, AP2112K-3.3 and AP2120N-1.8. By type, the board carries 6 ICs and 5 transformers.

It belongs with the power & battery designs in this gallery.

From the project

KiCad schematic of the Toniebox PCB (including datasheets).

Repository which will lead to a complete schematic of a Toniebox PCB. The schematic is done with KiCad.

Source of CC3200 footprint: https://raw.githubusercontent.com/Turegano/CC3200/master/lib/CC3200.lib

datasheets doc: documentation * library: KiCad libraries

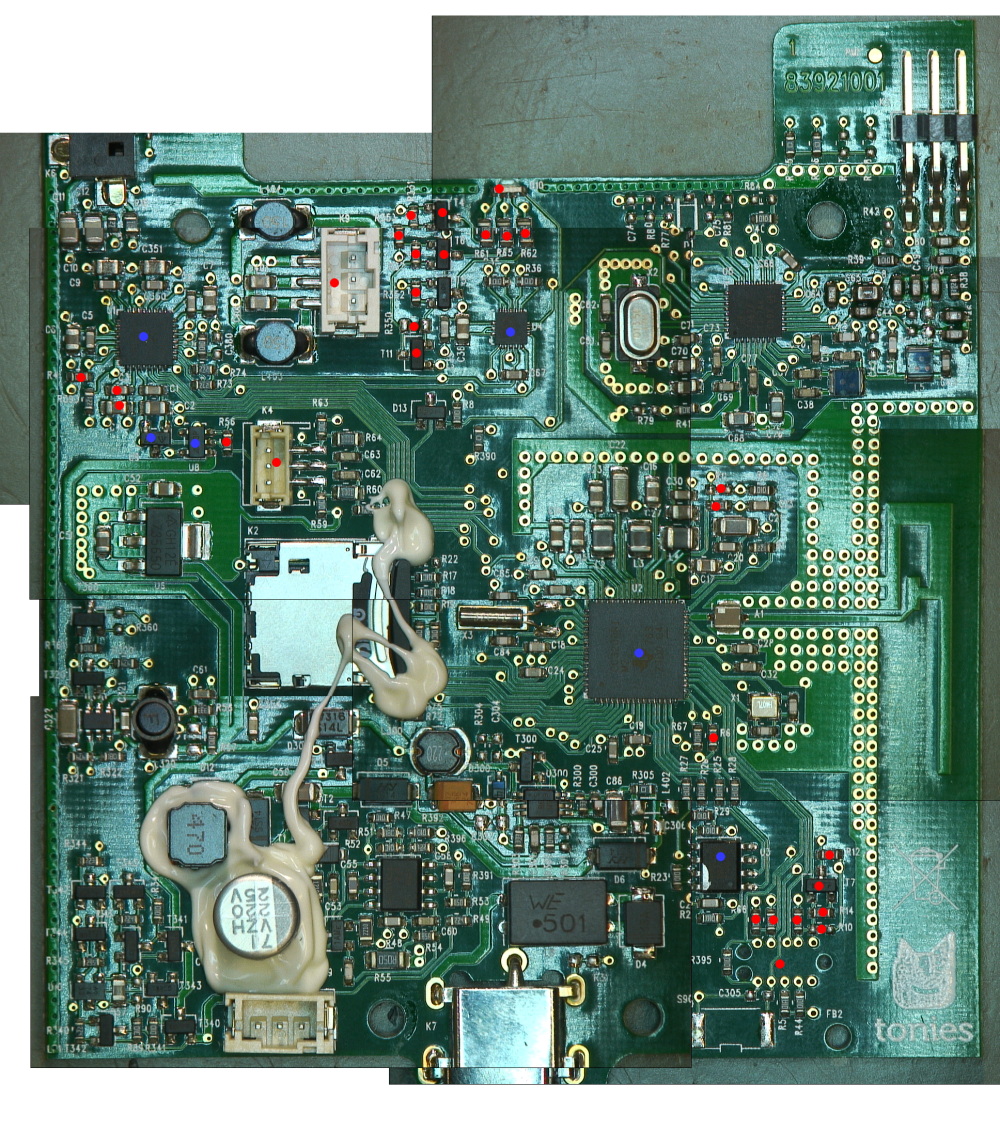

red dot: fully documented blue dot: partially documented

create subsheets for logical blocks create pinout of ASICs * document remaining testpoints

Toniebox, from the project README
From the project README

Main components on the Toniebox

TLV320DAC3100CC3200R1M2RGCRIS25LQ032B-JNLEMMA8451QTAP2112K-3.3AP2120N-1.8

Toniebox bill of materials (BOM)

11 components, 7 distinct parts.

QtyPartRefs
1
TLV320DAC3100
U1
1
CC3200R1M2RGCR
Texas Instruments
U2
1
IS25LQ032B-JNLE
U3
1
MMA8451QT
NXP USA Inc.
U4
1
AP2112K-3.3
U8
1
AP2120N-1.8
U9
5
FDV301N
ON Semiconductor
T4, T5, T6, T7, T11

Toniebox design files

The KiCad project lives in the toniebox-reverse-engineering/toniebox-pcb repository on GitHub; these links point at the commit this page was built from.

Toniebox: common questions

What microcontroller does the Toniebox use?

The Toniebox is built around the CC3200R1M2RGCR, from the TI MSP430/CC family.

How big is the Toniebox PCB?

The Toniebox measures 88 × 102 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Toniebox?

11 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Toniebox design files?

From the toniebox-reverse-engineering/toniebox-pcb repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Toniebox design in my own project?

The repository has no license, so all rights stay with toniebox-reverse-engineering. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Toniebox without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug TI MSP430/CC firmware against it before you order a PCB.
