EEZ DIB AUX-PS
eez-open·modular-psu·aux-ps/EDA files/KiCad/EEZ DIB AUX-PS.kicad_pcb

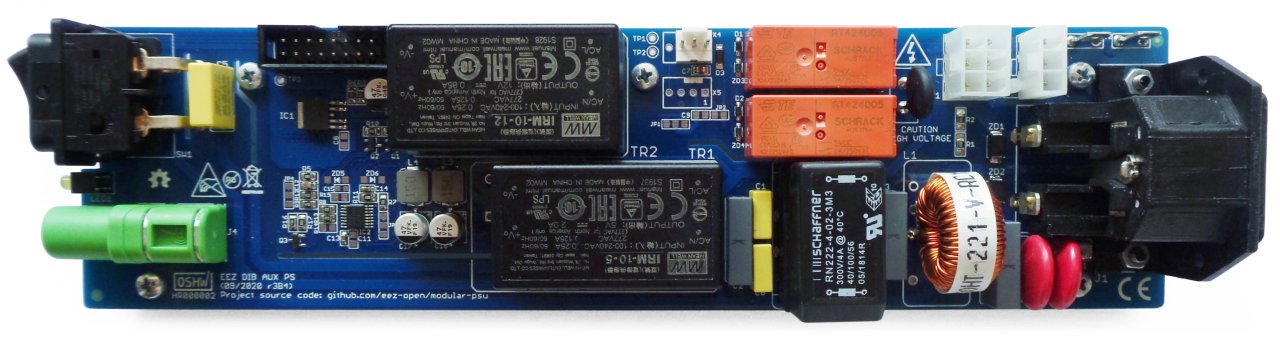

About the EEZ DIB AUX-PS PCB
EEZ DIB AUX-PS is an open source PCB design by eez-open, published on GitHub under the TAPR-OHL-1.0 license. It is a 2-layer board measuring 230.5 × 60 mm, with 63 components from 38 distinct parts.
Other key parts include the MAX31760AEE+ and BD00FC0W. By type, the board carries 16 capacitors, 15 resistors, 4 crystals, 4 connectors, 4 inductors and 3 transistors.
It belongs with the power & battery, iot & wireless and displays & leds designs in this gallery.
From the project
EEZ Bench Box 3 (BB3) Modular T&M chassis
IMPORTANT: A crowdfunded version of the AUX-PS (r3B3) can be found here).
AUX Power supply board for powering MCU board and backplane. It includes fan controller and AC power control with softstart (inrush current limiter) for power modules like DCP405 and DCM224.
On-board IEC C14 AC inlet with dual 20 x 5 mm fuses On-board AC power switch AC input protection (SAR, MOV) AC input filter for EMI compliance 3 x AC power outputs Soft-start/standby relay control +5 V, 10 W (optional 20 W) +12 V, 10 W I2C DC fan controller with temperature sensor and speed control Two 3-wire or 4-wire 12V DC fans…

Main components on the EEZ DIB AUX-PS
EEZ DIB AUX-PS bill of materials (BOM)
63 components, 38 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MAX31760AEE+ | DBQ16 | IC1 |
| 1 | BD00FC0W | TO-252-5 | IC2 |
| 2 | MMBT5551-7-F MMBT5551 | SOT23-BEC | Q1, Q2 |
| 1 | 2N7002LT1G 2N7002 | SOT103P240X110-3N | Q3 |
| 1 | DS1013-16SSIB1 | ZL231-16PG | X1 |
| 1 | MX-5566-06A 39-28-1063 | MINIFIT_5566-06A_CRE | X2 |
| 1 | MX-5566-03A3 39-30-1039 | MINIFIT_39301039_CRE | X3 |
| 1 | MX-6410-03A 22-27-2031 | 22-27-2041 (3-pin only) | X4 |
| 1 | SWEB 8094 AU/GN | SWEB 8094_AU_GN | J1 |
| 2 | 61-1560-21/0030 1-726388-2 | 1-726388-2 | J2, J3 |
| 1 | PF0030/PC | PF0030_PC | J4 |
| 2 | ALQ105 | PAN_ALQ1XX | K1, K2 |
| 1 | B57236S0200 B57236S0200M | NTC_11.5X6_RM5 | NTC1 |
| 1 | 2051-47-SM-RPLF | SAR_4.5MM | SAR1 |
| 1 | DF62J12S2AHQA | DF62J12S2 | SW1 |
| 1 | IRM-10-5 IRM-10-5 (optional IRM-20-5) | IRM-10_20_COMBO | TR1 |
| 1 | IRM-10-12 | IRM-10 | TR2 |
| 3 | V275LA20AP ERZE14A431 | VARISTOR_14MM_RM7.5MM | VAR1, VAR2, VAR3 |
| 1 | MM3Z18VT1G | SOD-323_1P8X1P35_ONS-M | ZD1 |
| 1 | L-934CB/1YD WP934CB/YD | WP934CB_YD | LED1 |
Show 18 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | BAS316 | SOD-323_1P8X1P35_ONS-M | D3, D4 |
| 1 | SKL14-DIO SKL14 | SOD123 | D6 |
| 2 | HPI0630-3R3 VLS6045AF-3R3N | COILCRAFT_HPI0630 | L1, L2 |
| 1 | 2200HT-221-V-RC | BOURNS_2200 | L3 |
| 1 | RN222-4-02-3M3 | BOURNS_7100_COMBO | L4 |
| 5 | GRM219R7YA105KA12D 1u | C_0805_2012Metric | C1, C2, C16, C18, C19 |
| 3 | R46KI310000M1M 100n/X2 | C150-054X183 | C3, C6, C9 |
| 3 | EEEFK1V470P | CAPAE660X610N | C4, C5, C17 |
| 2 | R66PD1220AA10K 2n2/Y2 | C075-042X103 | C7, C8 |
| 1 | MKP-X2-47NR10/310 47n/400V (X2) | C102-054X133 | C10 |
| 2 | CL10B104KA8NNNC 100n | C_0603_1608Metric | C13, C14 |
| 2 | 0805S8J0474T5E 470K | R_0805_2012Metric | R1, R2 |
| 5 | RC0805FR-071K 1K | R_0805_2012Metric | R3, R4, R11, R12, R17 |
| 2 | 0805S8F4701T5E 4K7 | R_0805_2012Metric | R5, R13 |
| 1 | 10R | R_0805_2012Metric | R8 |
| 2 | 0805S8J0393T5E 39K | R_0805_2012Metric | R14, R18 |
| 2 | 805S8F3301T5E 3K3 | R_0805_2012Metric | R15, R16 |
| 1 | RC0805FR-07470R 470R | R_0805_2012Metric | R19 |
EEZ DIB AUX-PS design files
The KiCad project lives in the eez-open/modular-psu repository on GitHub; these links point at the commit this page was built from.
EEZ DIB AUX-PS: common questions
How big is the EEZ DIB AUX-PS PCB?
The EEZ DIB AUX-PS measures 230.5 × 60 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the EEZ DIB AUX-PS?
63 components, from 38 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EEZ DIB AUX-PS design files?
From the eez-open/modular-psu repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the EEZ DIB AUX-PS design in my own project?
Yes, under the terms of its TAPR-OHL-1.0 license, which eez-open chose for the repository.
