EEZ DIB B3C
eez-open·modular-psu·bp3c/EDA files/KiCad/EEZ DIB B3C.kicad_pcb

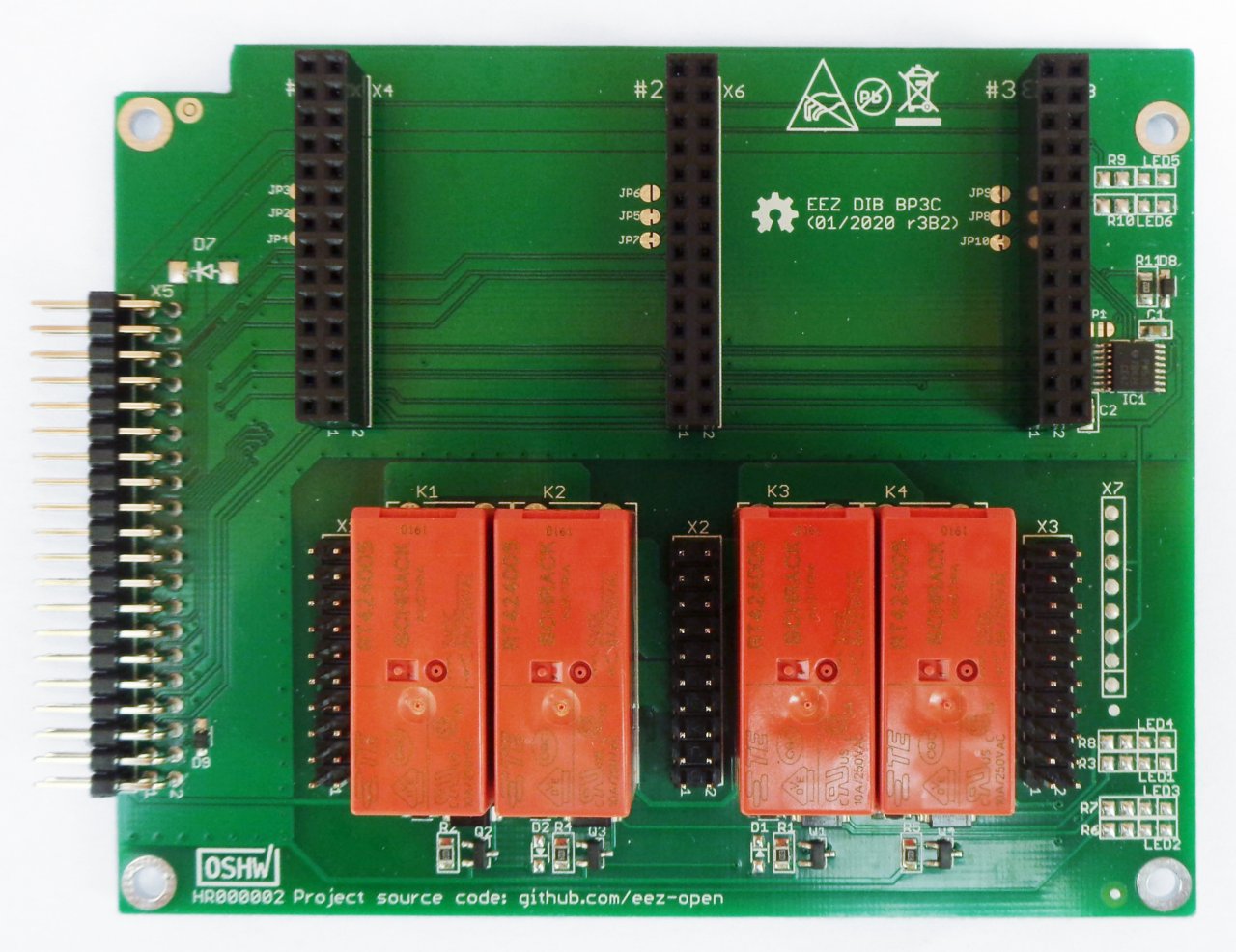

About the EEZ DIB B3C PCB
EEZ DIB B3C is an open source PCB design by eez-open, published on GitHub under the TAPR-OHL-1.0 license. It is a 2-layer board measuring 110 × 90 mm, with 30 components from 12 distinct parts.
Other key parts include the TCA9534PWR. By type, the board carries 7 crystals, 6 diodes, 5 resistors, 4 transistors, 4 relays and 2 capacitors.
It belongs with the iot & wireless, displays & leds and power & battery designs in this gallery.
From the project
EEZ Bench Box 3 (BB3) Modular T&M chassis
EEZ DIB BP3C is backplane for connecting up to three EEZ DIB peripheral modules. When power modules (e.g. DCP405) are plugged into slot #1 and #2, their outputs can be combined under firmware control in one of the following way:
- Serial coupling to double max. output voltage - Parallel coupling to double max. output current - Ch#1 Out- and Ch#2 Out+ coupling for split rail output

Main components on the EEZ DIB B3C
EEZ DIB B3C bill of materials (BOM)
30 components, 12 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TCA9534PWR | PW(R-PDSO-G16) | IC1 |
| 4 | 2N7002 | SOT103P240X110-3N | Q1, Q2, Q3, Q4 |
| 3 | 77313-802-20LF | 77313-802-20LF | X1, X2, X3 |
| 3 | S7082 DS1023-2*14S21 | TSW-114-07-F-D | X4, X6, X7 |
| 1 | 68020-140HLF | 68020-140HLF | X5 |
| 4 | RT424005 | RT424005 | K1, K2, K3, K4 |
| 1 | MM3Z18VT1G | SOD-323_1P8X1P35_ONS-M | ZD1 |
| 6 | BAS316 | SOD-323_1P8X1P35_ONS-M | D3, D4, D5, D6, D8, D9 |
| 1 | 100N 100n | C_0603_1608Metric | C1 |
| 1 | 1n | C_0805_2012Metric | C2 |
| 4 | 100K | R_0805_2012Metric | R1, R2, R3, R4 |
| 1 | 10K | R_0805_2012Metric | R11 |
EEZ DIB B3C design files
The KiCad project lives in the eez-open/modular-psu repository on GitHub; these links point at the commit this page was built from.
EEZ DIB B3C: common questions
How big is the EEZ DIB B3C PCB?
The EEZ DIB B3C measures 110 × 90 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the EEZ DIB B3C?
30 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the EEZ DIB B3C design files?
From the eez-open/modular-psu repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the EEZ DIB B3C design in my own project?
Yes, under the terms of its TAPR-OHL-1.0 license, which eez-open chose for the repository.
