Electricui arena PCB layout, top view — open source board by electricui

About the Electricui arena PCB

Electricui arena is an open source PCB design by electricui, published on GitHub under the MIT license. It is a 4-layer board measuring 220 × 120 mm, with 253 components from 29 distinct parts.

Other key parts include the AP2112K-3.3, MCP23008-E_SS, MAX4999ETJ, SN74LV4051APW and AP2553A. By type, the board carries 85 capacitors, 73 resistors, 39 ICs, 20 diodes, 18 connectors and 16 inductors.

It belongs with the iot & wireless and usb & debug tools designs in this gallery.

From the project

Hardware for continuous integration testing of serial interfaces and microcontrollers

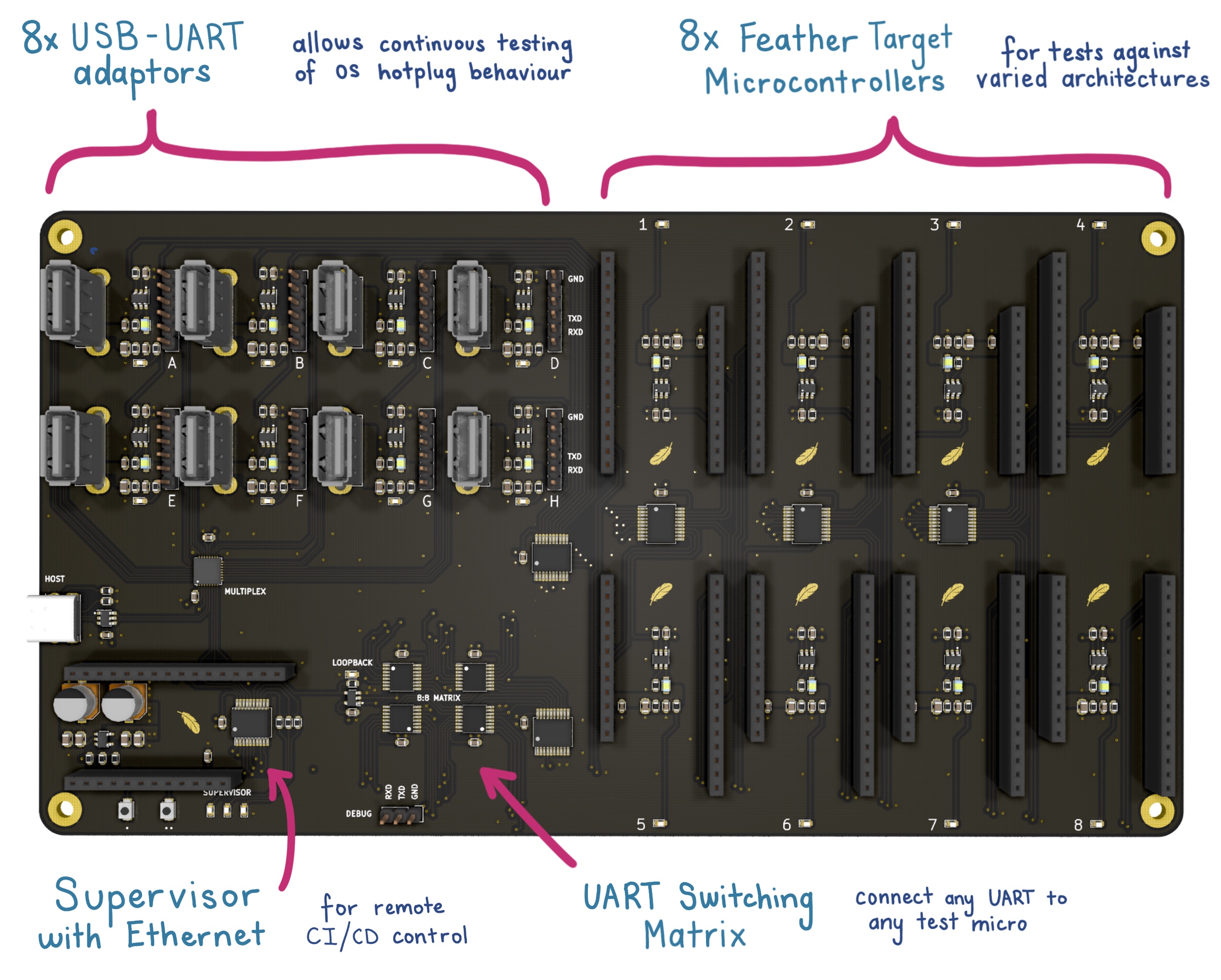

The board (KiCAD files in /hardware) exposes control to a CI build worker to power up any of the USB-UART adaptors in either loopback mode, or connected to any one of the hardware targets for a total test matrix of 72 combinations.

Intended to run tests for hot-plug detection (by controlling the mux or USB power control), disconnection handling (by re-routing serial to the void) and to validate a wide range of microcontroller architectures and their corresponding toolchains.

Electricui arena, from the project README
From the project README

Main components on the Electricui arena

AP2112K-3.3MCP23008-E_SSMAX4999ETJSN74LV4051APWAP2553AADAFRUIT_FEATHER_BREAKOUTUSBLC6SN74LVC1G66

Electricui arena bill of materials (BOM)

253 components, 29 distinct parts.

QtyPartRefs
1
AP2112K-3.3
U1
6
MCP23008-E_SS
U2, U3, U5, U6, U7, U8
1
MAX4999ETJ
U4
4
SN74LV4051APW
U9, U10, U11, U12
16
AP2553A
U13, U15, U17, U19, U21, U23, U25, U27 +8
9
ADAFRUIT_FEATHER_BREAKOUT
U14, U16, U18, U20, U22, U24, U26, U28 +1
1
USBLC6
U38
1
SN74LVC1G66
U39
8
USB_A_FEMALE_VERTICAL
J1, J2, J3, J4, J5, J6, J7, J8
1
USB_C_SOCKET_RA_PTH_SIMPLE
J9
8
CONN_01X06
P1, P2, P3, P4, P5, P6, P7, P8
1
CONN_01X03
P9
2
B3U-1000P_SPST-NO_SMD
SW1, SW2
18
LED_YELLOW_1608M
D1, D2, D3, D4, D5, D6, D7, D8 +10
1
LED_RED_1608M
D9
1
LED_GREEN_1608M
D11
16
220R_2012M
FB1, FB2, FB3, FB4, FB5, FB6, FB7, FB8 +8
31
100n_X7R_1608M
C1, C3, C4, C5, C6, C7, C8, C9 +23
20
4u7_X7R_2012M
C2, C16, C18, C20, C22, C24, C26, C28 +12
2
100u_ELEC_35V_660X580M
C62, C63
Show 9 more
QtyPartRefs
16
470n_X7R_1608M
C64, C66, C68, C70, C72, C74, C76, C78 +8
16
4n7_X7R_1608M
C65, C67, C69, C71, C73, C75, C77, C79 +8
20
1K00_1608M
R1, R2, R3, R4, R6, R8, R10, R12 +12
8
43K_1608M
R5, R7, R9, R11, R13, R15, R17, R19
2
4K7_1608M
R21, R22
17
10K0_1608M
R23, R57, R61, R63, R65, R67, R69, R71 +9
8
100K_1608M
R27, R29, R31, R33, R35, R37, R39, R41
2
5K76_1608M
R43, R44
16
10R_1608M
R60, R62, R64, R66, R68, R70, R72, R74 +8

Electricui arena design files

The KiCad project lives in the electricui/electricui-arena repository on GitHub; these links point at the commit this page was built from.

Electricui arena: common questions

How big is the Electricui arena PCB?

The Electricui arena measures 220 × 120 mm, has 4 copper layers and is 2 mm thick.

How many components are on the Electricui arena?

253 components, from 29 distinct parts. The full bill of materials is listed on this page.

Where can I download the Electricui arena design files?

From the electricui/electricui-arena repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Electricui arena design in my own project?

Yes, under the terms of its MIT license, which electricui chose for the repository.
