Rc2014-82c55-ide
About the Rc2014-82c55-ide PCB
Rc2014-82c55-ide is an open source PCB design by electrified, published on GitHub. It is a 2-layer board measuring 100 × 50 mm, with 22 components from 15 distinct parts.
Other key parts include the 82C55A_PLCC, 74HCT688 and 74HCT04. By type, the board carries 5 connectors, 5 resistors, 4 jumpers, 3 ICs, 3 capacitors and 1 switch.
It belongs with the retro computing designs in this gallery.
From the project

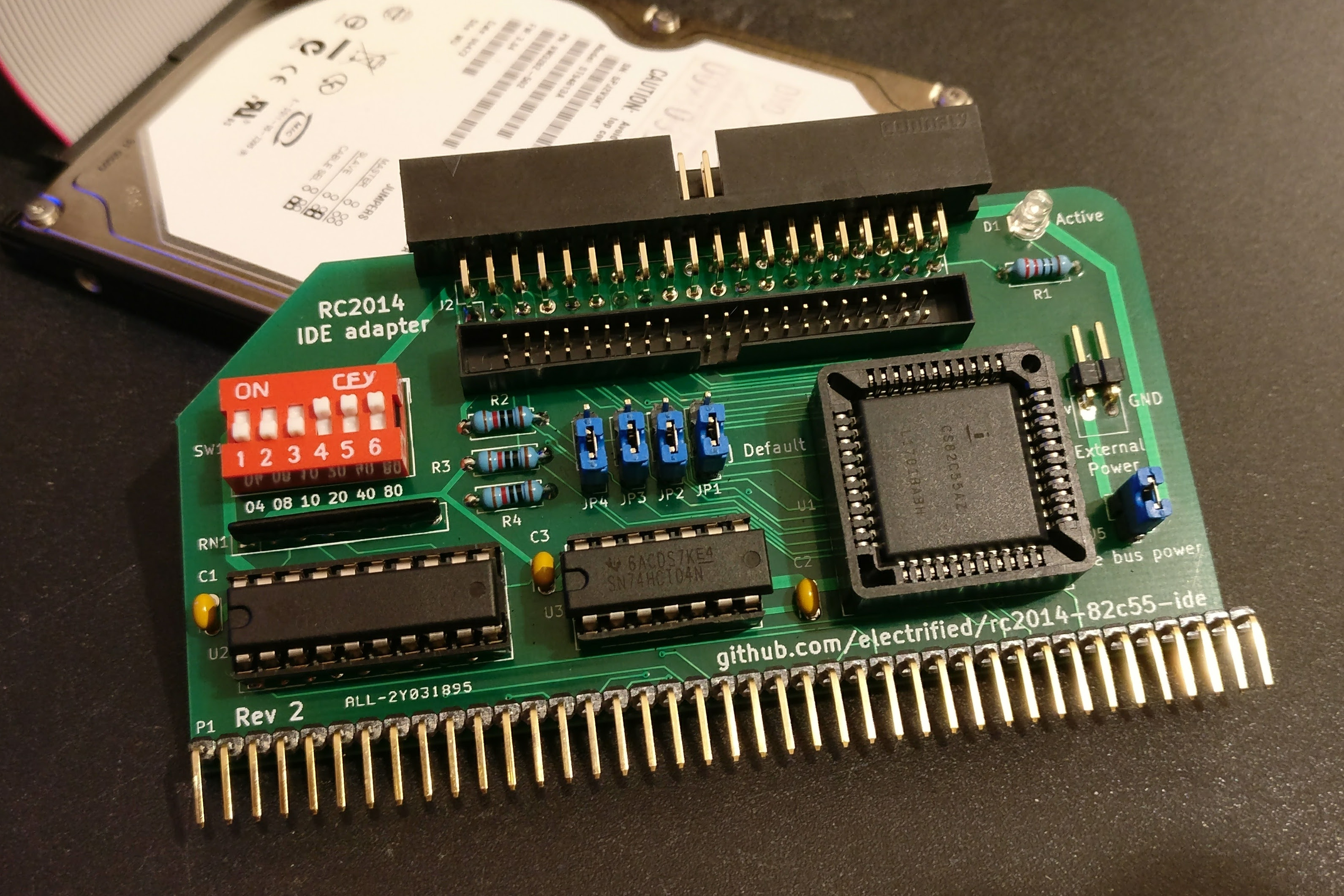

KiCad schematics and gerbers for an IDE adapter for the RC2014.
* Connecting an IDE hard drive to your RC2014 and using it in RomWBW, CP/M-IDE or in C programs built with z88dk.
40 pin IDE for normal 3.5" hard drives 44 pin IDE header for 2.5" laptop hard drives Pins for supplying external 5v for the laptop HD if necessary IO port selectable via DIP switch
Read the RomWBW readme (Source/ReadMe.txt) if you are unfamiliar with the configuration and build process.
Main components on the Rc2014-82c55-ide
Rc2014-82c55-ide bill of materials (BOM)
22 components, 15 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 82C55A_PLCC | PLCC-44_THT-Socket | U1 |
| 1 | 74HCT688 | DIP-20_W7.62mm_Socket_LongPads | U2 |
| 1 | 74HCT04 | DIP-14_W7.62mm_Socket_LongPads | U3 |
| 2 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J1, J5 |
| 1 | Conn_02x20_Odd_Even | PinHeader_2x20_P2.54mm_Vertical | J2 |
| 1 | Conn_02x22_Odd_Even | PinHeader_2x22_P2.00mm_Vertical | J3 |
| 1 | Conn_01x39 | Pin_Header_Straight_1x39_Pitch2.54mm_NoSilk | P1 |
| 4 | Jumper_3_Bridged12 | PinHeader_1x03_P2.54mm_Vertical | JP1, JP2, JP3, JP4 |
| 1 | SW_DIP_x06 | SW_DIP_SPSTx06_Slide_9.78x17.42mm_W7.62mm_P2.54mm | SW1 |
| 1 | LED | LED_D3.0mm | D1 |
| 2 | 0.1uF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C1, C3 |
| 1 | C_Small | C_Disc_D3.0mm_W2.0mm_P2.50mm | C2 |
| 1 | 270R | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 3 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2, R3, R4 |
| 1 | R_Network07 | R_Array_SIP8 | RN1 |
Rc2014-82c55-ide design files
The KiCad project lives in the electrified/rc2014-82c55-ide repository on GitHub; these links point at the commit this page was built from.
- Layoutrc2014-82c55-ide.kicad_pcb
- Schematicrc2014-82c55-ide.kicad_sch
Rc2014-82c55-ide: common questions
How big is the Rc2014-82c55-ide PCB?
The Rc2014-82c55-ide measures 100 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rc2014-82c55-ide?
22 components, from 15 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rc2014-82c55-ide design files?
From the electrified/rc2014-82c55-ide repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Rc2014-82c55-ide design in my own project?
The repository has no license, so all rights stay with electrified. Use it as a reference, and ask the author before reusing the design.
