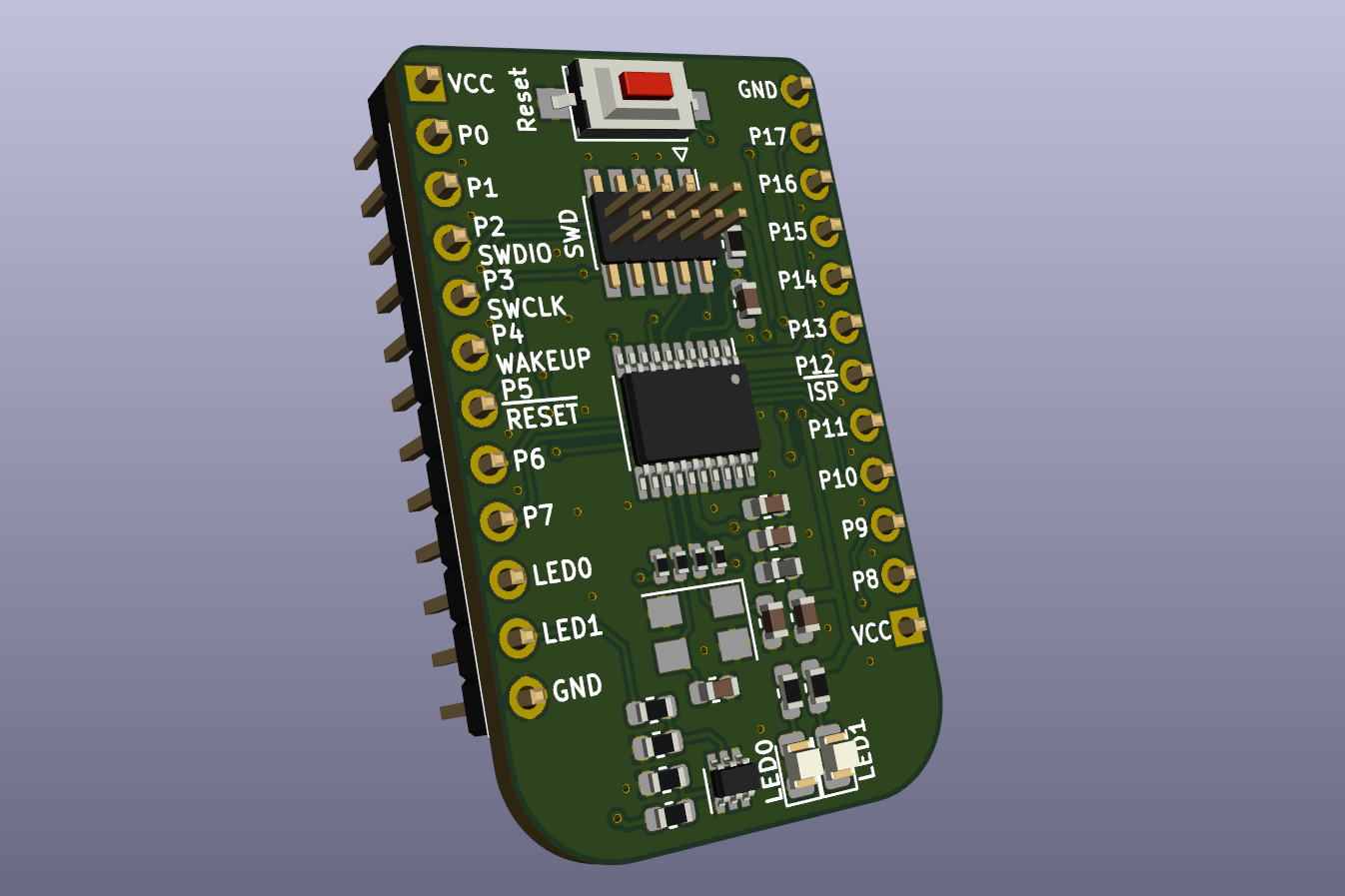

Lpc812-breakout layout, top view — open source NXP board by elevendroids

About the Lpc812-breakout

Lpc812-breakout is an open source NXP PCB design by elevendroids, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 23 × 37.5 mm, with 27 components from 18 distinct parts.

Its main chip is the LPC812M101JDH20, from the NXP family. By type, the board carries 11 resistors, 6 capacitors, 3 connectors, 2 diodes, 1 IC and 1 transistor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

LPC812 Breakout Board

Small breakout board designed for the LPC812 ARM Cortex-M0+ microcontrollers from NXP

- minimal subset of components, no power regulation etc. - optional external crystal - if not used, its GPIO pins can be connected to the user header by soldering relevant 0R resistors (see schematic) - two buffered user LEDs, connected to the header - no reserved GPIOs - reset button - standard 0.05" pitch SWD programming header, SWD signals also present on the pin headers

Lpc812-breakout, from the project README
From the project README

Main components on the Lpc812-breakout

LPC812M101JDH20

Lpc812-breakout bill of materials (BOM)

27 components, 18 distinct parts.

QtyPartRefs
1
LPC812M101JDH20
NXP
U1
1
BC847CDW1T1G
BC847BDW1
ON Semiconductor
Q1
1
ECS-80-10-30B-CWN-TR
8MHz
ECS
Y1
1
20021121-00010C4LF
SWD
Amphenol
J1
1
Left
J2
1
Right
J3
1
Reset
SW1
1
LED0
D1
1
LED1
D2
1
BLM18AG221SN1D
220R/100MHz
Murata
FB1
2
18p
C1, C2
2
100n
C3, C5
1
10n
C4
1
1u
C6
4
0R
R1, R2, R3, R4
2
47k
R5, R8
3
100k
R6, R9, R11
2
330R
R7, R10

Lpc812-breakout design files

The KiCad project lives in the elevendroids/lpc812-breakout repository on GitHub; these links point at the commit this page was built from.

Lpc812-breakout: common questions

What microcontroller does the Lpc812-breakout use?

The Lpc812-breakout is built around the LPC812M101JDH20, from the NXP family.

How big is the Lpc812-breakout?

The Lpc812-breakout measures 23 × 37.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Lpc812-breakout?

27 components, from 18 distinct parts. The full bill of materials is listed on this page.

Where can I download the Lpc812-breakout design files?

From the elevendroids/lpc812-breakout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Lpc812-breakout design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which elevendroids chose for the repository.

Can I test firmware for the Lpc812-breakout without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
