Pca9634-breakout layout, top view — open source board by elevendroids

About the Pca9634-breakout

Pca9634-breakout is an open source PCB design by elevendroids, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 40 × 25 mm, with 12 components from 9 distinct parts.

Other key parts include the PCA9634PW. By type, the board carries 6 resistors, 2 connectors, 2 capacitors, 1 IC and 1 switch.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

PCA9634 Breakout Board

Small board for the 8 channel I2C-bus PWM LED driver from NXP - PCA9634 Datasheet

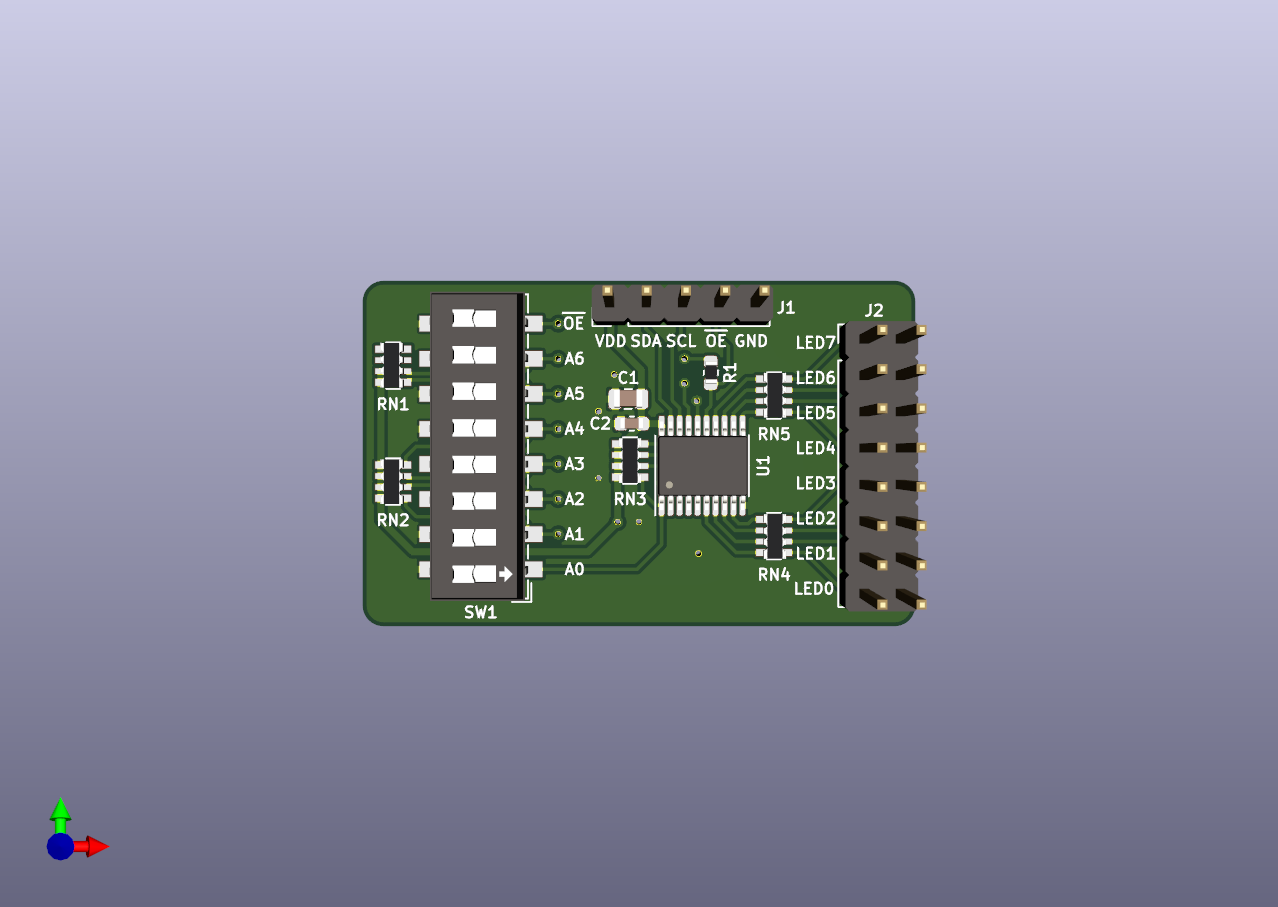

Pca9634-breakout, from the project README
From the project README

Main components on the Pca9634-breakout

PCA9634PW

Pca9634-breakout bill of materials (BOM)

12 components, 9 distinct parts.

QtyPartRefs
1
PCA9634PW
U1
1
Input
J1
1
Output
J2
1
Address/~OE
SW1
1
10u
C1
1
100n
C2
1
150R
R1
3
10k
RN1, RN2, RN3
2
150R
RN4, RN5

Pca9634-breakout design files

The KiCad project lives in the elevendroids/pca9634-breakout repository on GitHub; these links point at the commit this page was built from.

Pca9634-breakout: common questions

How big is the Pca9634-breakout?

The Pca9634-breakout measures 40 × 25 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pca9634-breakout?

12 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pca9634-breakout design files?

From the elevendroids/pca9634-breakout repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Pca9634-breakout design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which elevendroids chose for the repository.
