RoProp

embeddedalpha·PCB-Design·6_Axis_Robot_Controller/RoProp.kicad_pcb

RoProp PCB layout, top view — open source STM32 board by embeddedalpha
Simulate this board

About the RoProp PCB

RoProp is an open source STM32 PCB design by embeddedalpha, published on GitHub under the MIT license. It is a 2-layer board measuring 75.6 × 65.2 mm, with 85 components from 31 distinct parts.

Its main chip is the STM32F103C8Tx, from the STM32 family. Other key parts include the TPS53318DQPR, CP2102N-A01-GQFN24 and LM3480-3.3. By type, the board carries 26 capacitors, 24 resistors, 8 diodes, 6 transistors, 3 ICs and 1 inductor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Repository for PCB Design Projects

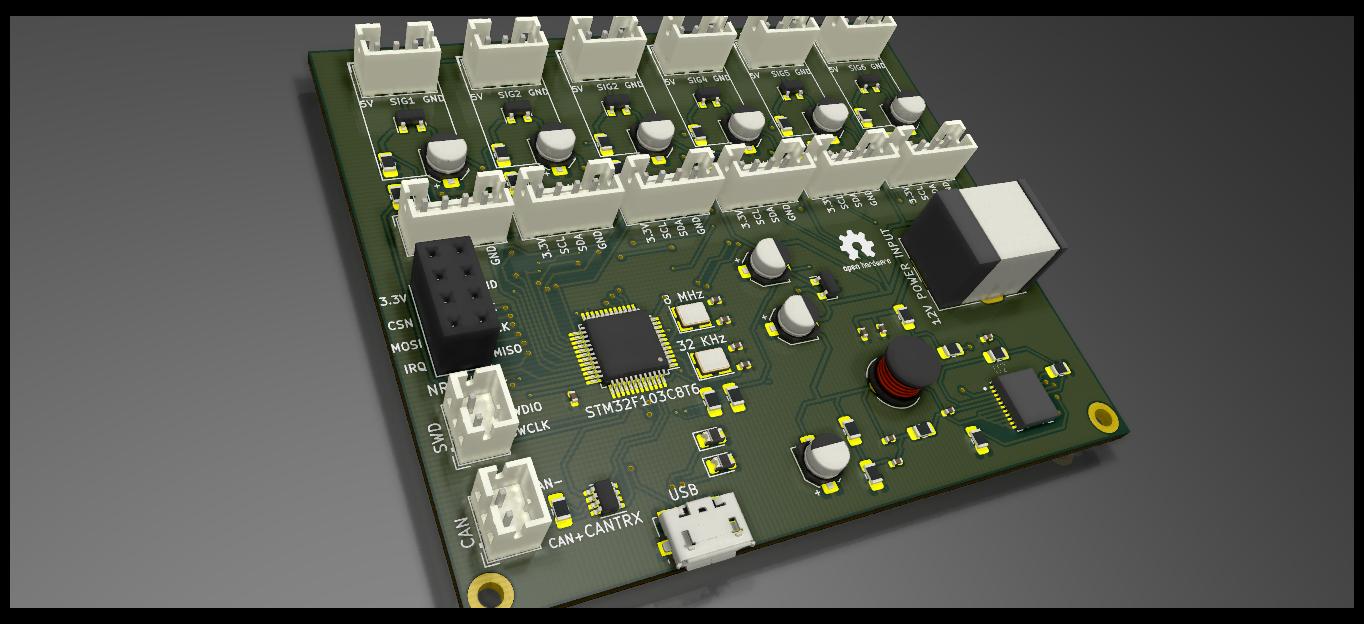

RoProp, from the project README
From the project README

Main components on the RoProp

TPS53318DQPRCP2102N-A01-GQFN24LM3480-3.3

RoProp bill of materials (BOM)

85 components, 31 distinct parts.

QtyPartRefs
1
TPS53318DQPR
U2
1
CP2102N-A01-GQFN24
U3
1
LM3480-3.3
U4
6
DMN2056U
Q1, Q2, Q3, Q4, Q5, Q6
2
Crystal_GND23
8 MHz, 32 KHz
1
Barrel_Jack
12V POWER INPUT
6
Conn_01x04
IMU1, IMU2, IMU3, IMU4, IMU5, IMU6
1
Conn_02x04_Odd_Even
NRF24L01
6
Conn_01x03
SERVO1, SERVO2, SERVO3, SERVO4, SERVO5, SERVO6
1
STM32F103C8Tx
STM32F103C8T6
6
LED
D1, D2, D3, D4, D5, D6
2
D_TVS
D7, D8
1
4.7U
L1
2
4.7U
C1, C2
5
10N
C3, C4, C5, C6, C7
1
1U
C8
2
100N
C9, C17
7
1N
C10, C11, C12, C13, C14, C15, C16
1
100U
C18
2
1N
C19, C23
Show 11 more
QtyPartRefs
6
2U
C20, C21, C22, C24, C25, C26
2
4.7K
R1, R2
1
854K
R3
1
86.6K
R4
1
1K
R5
3
105K
R6, R7, R11
7
1.91K
R8, R9, R10, R12, R13, R14, R15
1
69.8K
R16
1
10K
R17
6
2k
R18, R19, R20, R21, R22, R23
1
120
R24

RoProp design files

The KiCad project lives in the embeddedalpha/PCB-Design repository on GitHub; these links point at the commit this page was built from.

RoProp: common questions

What microcontroller does the RoProp use?

The RoProp is built around the STM32F103C8Tx, from the STM32 family.

How big is the RoProp PCB?

The RoProp measures 75.6 × 65.2 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RoProp?

85 components, from 31 distinct parts. The full bill of materials is listed on this page.

Where can I download the RoProp design files?

From the embeddedalpha/PCB-Design repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the RoProp design in my own project?

Yes, under the terms of its MIT license, which embeddedalpha chose for the repository.

Can I test firmware for the RoProp without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
