PWM Isolator

EmbeddedDesign·GotT-Translation-Circuit·Electrical/Test Boards/PWM_Isolator/PWM_Isolator.kicad_pcb

PWM Isolator PCB layout, top view — open source board by EmbeddedDesign

About the PWM Isolator PCB

PWM Isolator is an open source PCB design by EmbeddedDesign, published on GitHub under the MIT license. It is a 2-layer board measuring 30 × 10.1 mm, with 6 components from 6 distinct parts.

Other key parts include the SN74LVC1G34 and FOD817D3SD. By type, the board carries 2 ICs, 2 connectors and 1 resistor.

It belongs with the iot & wireless designs in this gallery.

From the project

A Bluetooth voice modulator for Dalek speech

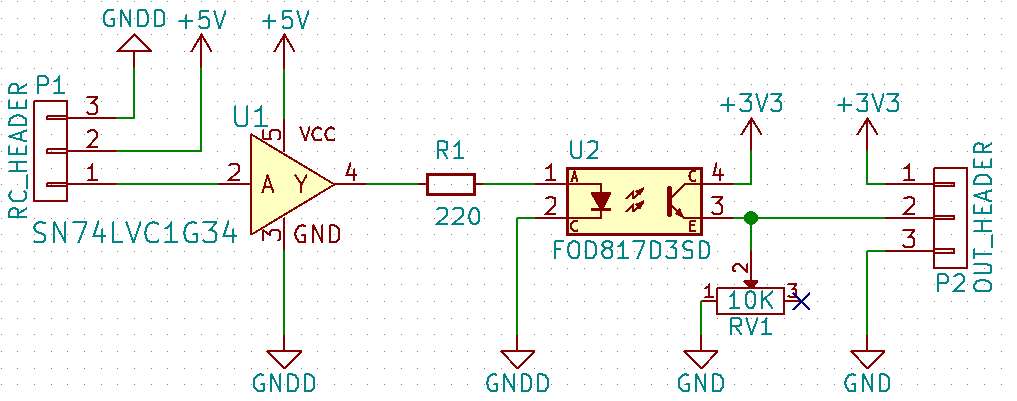

PWM Isolator, from the project README
From the project README

Main components on the PWM Isolator

SN74LVC1G34FOD817D3SD

PWM Isolator bill of materials (BOM)

6 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SN74LVC1G34
U1
1
FOD817D3SD
U2
1
RC_HEADER
P1
1
OUT_HEADER
P2
1
10K
RV1
1
220
R1

PWM Isolator design files

The KiCad project lives in the EmbeddedDesign/GotT-Translation-Circuit repository on GitHub; these links point at the commit this page was built from.

PWM Isolator: common questions

How big is the PWM Isolator PCB?

The PWM Isolator measures 30 × 10.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PWM Isolator?

6 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PWM Isolator design files?

From the EmbeddedDesign/GotT-Translation-Circuit repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the PWM Isolator design in my own project?

Yes, under the terms of its MIT license, which EmbeddedDesign chose for the repository.
