Lights Breakout

EmbeddedDesign·GotT-Translation-Circuit·Electrical/Test Boards/Lights_Breakout/Lights_Breakout.kicad_pcb

Lights Breakout layout, top view — open source board by EmbeddedDesign

About the Lights Breakout

Lights Breakout is an open source PCB design by EmbeddedDesign, published on GitHub under the MIT license. It is a 2-layer board measuring 22 × 18 mm, with 5 components from 5 distinct parts.

By type, the board carries 2 connectors, 2 resistors and 1 transistor.

It belongs with the dev boards & breakouts and iot & wireless designs in this gallery.

From the project

A Bluetooth voice modulator for Dalek speech

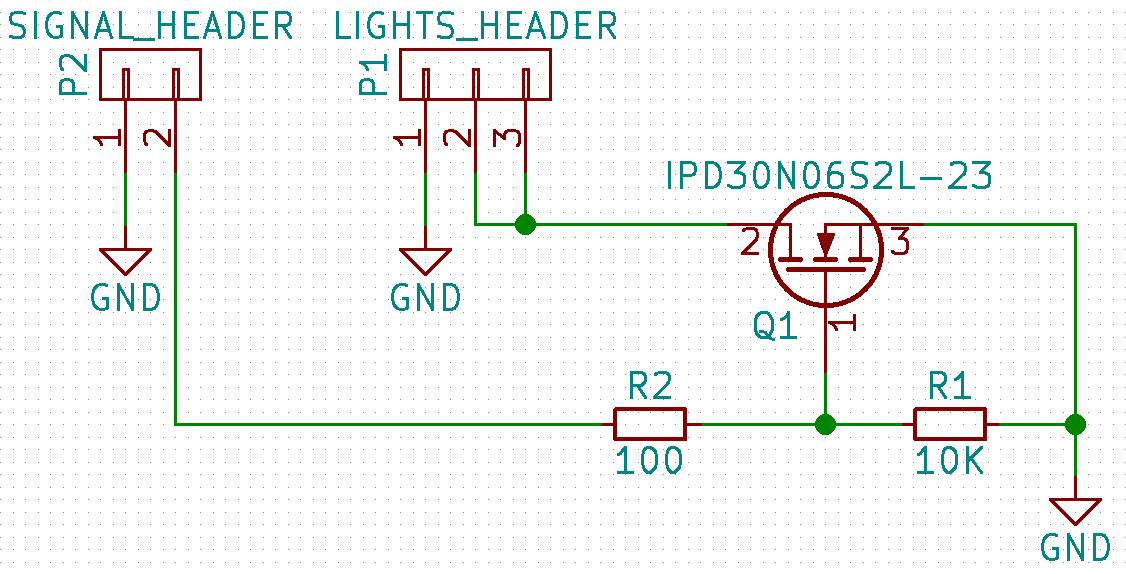

Lights Breakout, from the project README
From the project README

Lights Breakout bill of materials (BOM)

5 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
IPD30N06S2L-23
Q1
1
LIGHTS_HEADER
P1
1
SIGNAL_HEADER
P2
1
10K
R1
1
100
R2

Lights Breakout design files

The KiCad project lives in the EmbeddedDesign/GotT-Translation-Circuit repository on GitHub; these links point at the commit this page was built from.

Lights Breakout: common questions

How big is the Lights Breakout?

The Lights Breakout measures 22 × 18 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Lights Breakout?

5 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Lights Breakout design files?

From the EmbeddedDesign/GotT-Translation-Circuit repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Lights Breakout design in my own project?

Yes, under the terms of its MIT license, which EmbeddedDesign chose for the repository.
