Power Breakout
EmbeddedDesign·GotT-Translation-Circuit·Electrical/Test Boards/Power_Breakout/Power_Breakout.kicad_pcb
About the Power Breakout

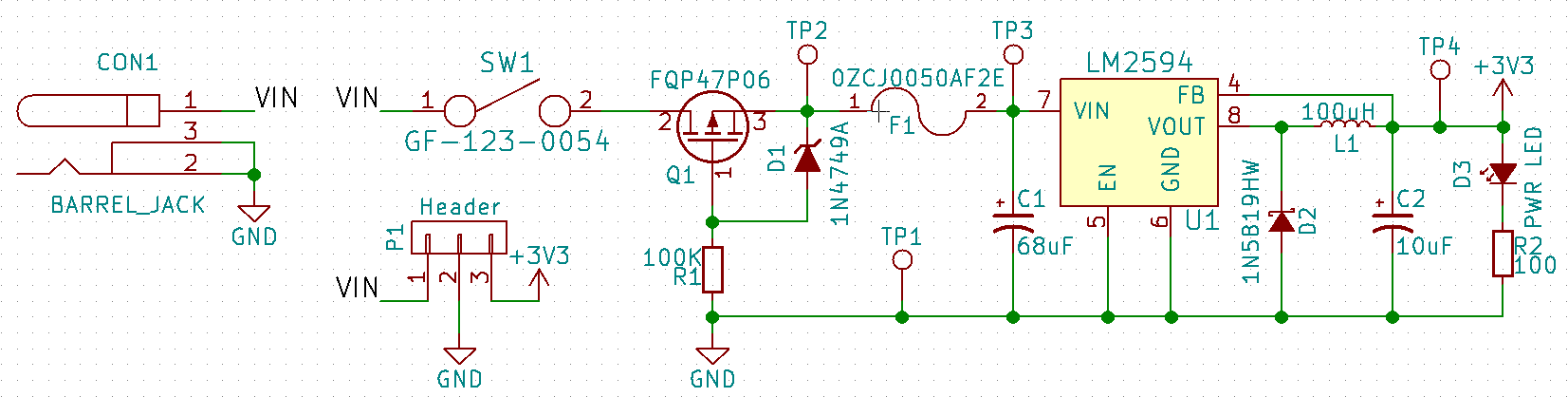

Power Breakout is an open source PCB design by EmbeddedDesign, published on GitHub under the MIT license. It is a 2-layer board measuring 76.6 × 21.5 mm, with 18 components from 15 distinct parts.
Other key parts include the LM2594. By type, the board carries 4 test points, 3 diodes, 2 connectors, 2 capacitors, 2 resistors and 1 IC.
It belongs with the dev boards & breakouts and iot & wireless designs in this gallery.
From the project
A Bluetooth voice modulator for Dalek speech

Main components on the Power Breakout
Power Breakout bill of materials (BOM)
18 components, 15 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM2594 | SOIC-8-N | U1 |
| 1 | FQP47P06 | TO-220_Neutral123_Vertical | Q1 |
| 1 | BARREL_JACK | PJ-036AH-SMT-TR_Barrel_Jack | CON1 |
| 1 | Header | Pin_Header_Straight_1x03 | P1 |
| 1 | 0ZCJ0050AF2E | Fuse_SMD1206_Reflow | F1 |
| 1 | GF-123-0054 | GF-123-0054 | SW1 |
| 4 | TP1 | RCS-0C_Test_Point | TP1, TP2, TP3, TP4 |
| 1 | 1N4749A | Diode_DO-41_SOD81_Horizontal_RM10 | D1 |
| 1 | MBRS130L | SOD-123 | D2 |
| 1 | PWR LED | LED_0603 | D3 |
| 1 | 100uH | PE-53820SNL_Pulse_Inductor | L1 |
| 1 | 68uF | c_elec_6.3x7.7 | C1 |
| 1 | 10uF | TantalC_SizeD_EIA-7343_Reflow | C2 |
| 1 | 100K | Resistor_Vertical_RM5mm | R1 |
| 1 | 100 | R_0603 | R2 |
Power Breakout design files
The KiCad project lives in the EmbeddedDesign/GotT-Translation-Circuit repository on GitHub; these links point at the commit this page was built from.
Power Breakout: common questions
How big is the Power Breakout?
The Power Breakout measures 76.6 × 21.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Power Breakout?
18 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Power Breakout design files?
From the EmbeddedDesign/GotT-Translation-Circuit repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Power Breakout design in my own project?
Yes, under the terms of its MIT license, which EmbeddedDesign chose for the repository.
