Stm32gbcart PCB layout, top view — open source STM32 board by Emeryth

About the Stm32gbcart PCB

Stm32gbcart is an open source STM32 PCB design by Emeryth, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 51.4 × 61 mm, with 36 components from 19 distinct parts.

Its main chip is the STM32F405RGTx, from the STM32 family. Other key parts include the MCP1700-1202E_SOT23 and FM25V10. By type, the board carries 10 capacitors, 8 resistors, 7 diodes, 3 ICs, 2 connectors and 2 microphones.

It belongs with the retro computing designs in this gallery.

From the project

STM32 GameBoy Cartridge

A GameBoy flashcart based on an STM32F405, with USB, battery backup and external FRAM.

Based on cartridge footprint by Gekkio https://github.com/Gekkio/gb-hardware.

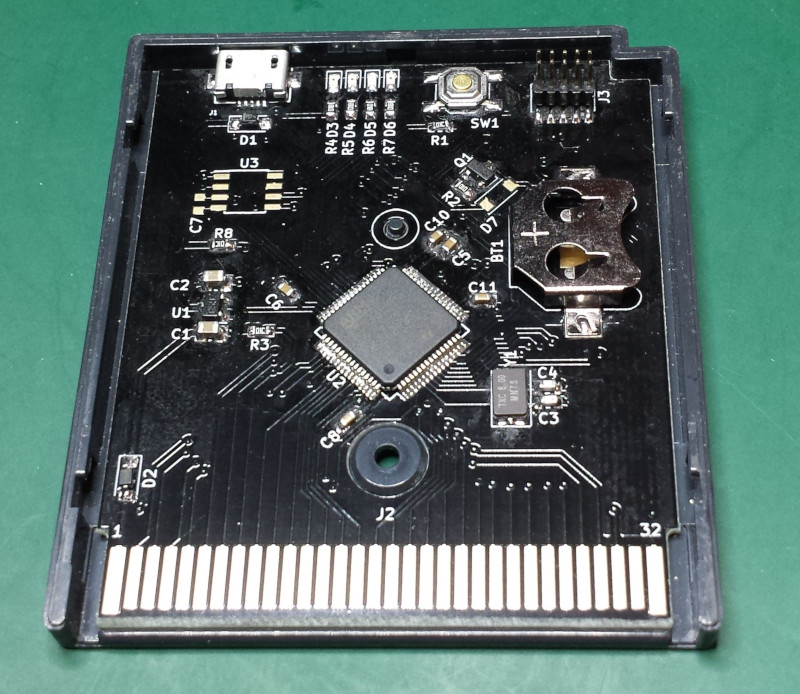

Stm32gbcart, from the project README
From the project README

Main components on the Stm32gbcart

MCP1700-1202E_SOT23STM32F405RGTxFM25V10

Stm32gbcart bill of materials (BOM)

36 components, 19 distinct parts.

QtyPartRefs
1
MCP1700-1202E_SOT23
U1
1
STM32F405RGTx
U2
1
FM25V10
U3
1
Q_PMOS_GSD
Q1
1
8M
Y1
1
USB_B_Micro
J1
1
Conn_ARM_JTAG_SWD_10
J3
1
Battery_Cell
BT1
2
Mounting_Hole
MK1, MK2
1
SW_Push
SW1
3
D_Schottky
D1, D2, D7
4
LED
D3, D4, D5, D6
2
1u
C1, C2
2
15p
C3, C4
2
2.2u
C5, C6
4
100n
C7, C8, C10, C11
3
10k
R1, R3, R8
1
100k
R2
4
470
R4, R5, R6, R7

Stm32gbcart design files

The KiCad project lives in the Emeryth/stm32gbcart repository on GitHub; these links point at the commit this page was built from.

Stm32gbcart: common questions

What microcontroller does the Stm32gbcart use?

The Stm32gbcart is built around the STM32F405RGTx, from the STM32 family.

How big is the Stm32gbcart PCB?

The Stm32gbcart measures 51.4 × 61 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stm32gbcart?

36 components, from 19 distinct parts. The full bill of materials is listed on this page.

Where can I download the Stm32gbcart design files?

From the Emeryth/stm32gbcart repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Stm32gbcart design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which Emeryth chose for the repository.

Can I test firmware for the Stm32gbcart without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
