Arduino-Compatible-Board

ercanersoy·Arduino-Compatible-Board

Arduino-Compatible-Board layout, top view — open source AVR/Arduino board by ercanersoy

About the Arduino-Compatible-Board

Arduino-Compatible-Board is an open source AVR/Arduino PCB design by ercanersoy, published on GitHub under the CC-BY-SA-4.0 license. It is a board measuring 68.6 × 53.3 mm, with 48 components from 17 distinct parts.

Its main chip is the ATMEGA328P-PU, from the AVR/Arduino family. Other key parts include the LP2985-33DBVR. By type, the board carries 5 capacitors, 3 resistors, 1 IC, 1 crystal, 1 LED and 1 diode.

From the project

Arduino Compatible Board for professional use

Arduino Compatible Board for professional use

The circuit designed by Arduino. Some changes applied by Ercan Ersoy.

This work is licensed under CC-BY-SA 4.0 License.

Arduino is a trademark of Arduino Company.

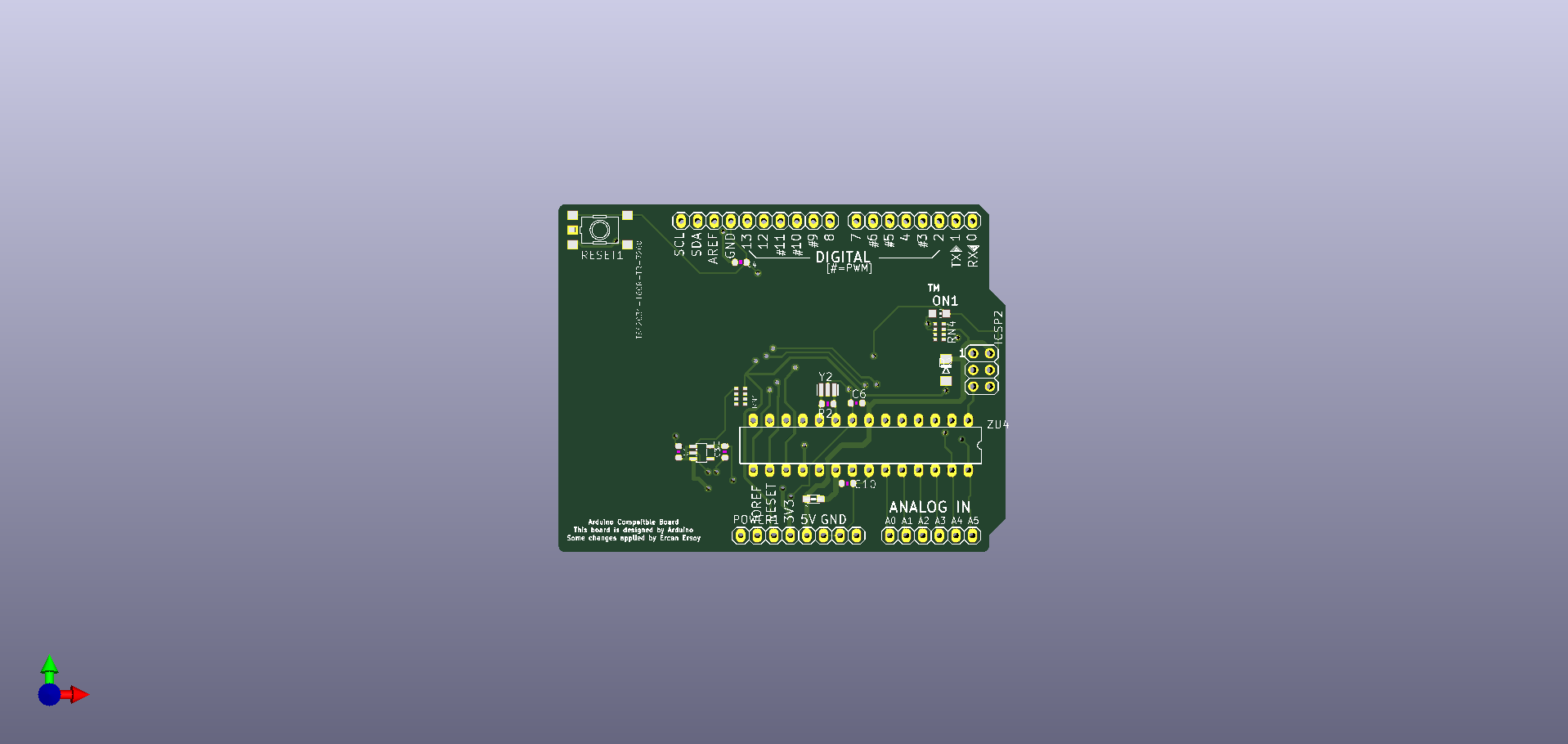

Arduino-Compatible-Board, from the project README
From the project README

Main components on the Arduino-Compatible-Board

LP2985-33DBVR

Arduino-Compatible-Board bill of materials (BOM)

48 components, 17 distinct parts.

QtyPartRefs
1
LP2985-33DBVR
U2
1
CSTCE16M0V53-R0 16MHZ
Y2
1
6x1F-H8.5
AD1
1
3x2 M
ICSP2
1
10x1F-H8.5
IOH1
2
8x1F-H8.5
IOL1, POWER1
1
TS42031-160R-TR-7260
RESET1
28
TP_SP
TP_0, TP_1, TP_2, TP_3, TP_3V3, TP_4, TP_5, TP_6 +20
1
ATMEGA328P-PU
ZU4
1
GREEN
ON1
1
CD1206-S01575
D2
1
10uH
L2
4
100n
C1, C4, C6, C10
1
1u
C3
1
1M
R2
1
10K
RN1
1
1K
RN4

Arduino-Compatible-Board design files

The KiCad project lives in the ercanersoy/Arduino-Compatible-Board repository on GitHub; these links point at the commit this page was built from.

Arduino-Compatible-Board: common questions

What microcontroller does the Arduino-Compatible-Board use?

The Arduino-Compatible-Board is built around the ATMEGA328P-PU, from the AVR/Arduino family.

How big is the Arduino-Compatible-Board?

The Arduino-Compatible-Board measures 68.6 × 53.3 mm and is 1.6 mm thick.

How many components are on the Arduino-Compatible-Board?

48 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the Arduino-Compatible-Board design files?

From the ercanersoy/Arduino-Compatible-Board repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Arduino-Compatible-Board design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which ercanersoy chose for the repository.

Can I test firmware for the Arduino-Compatible-Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
