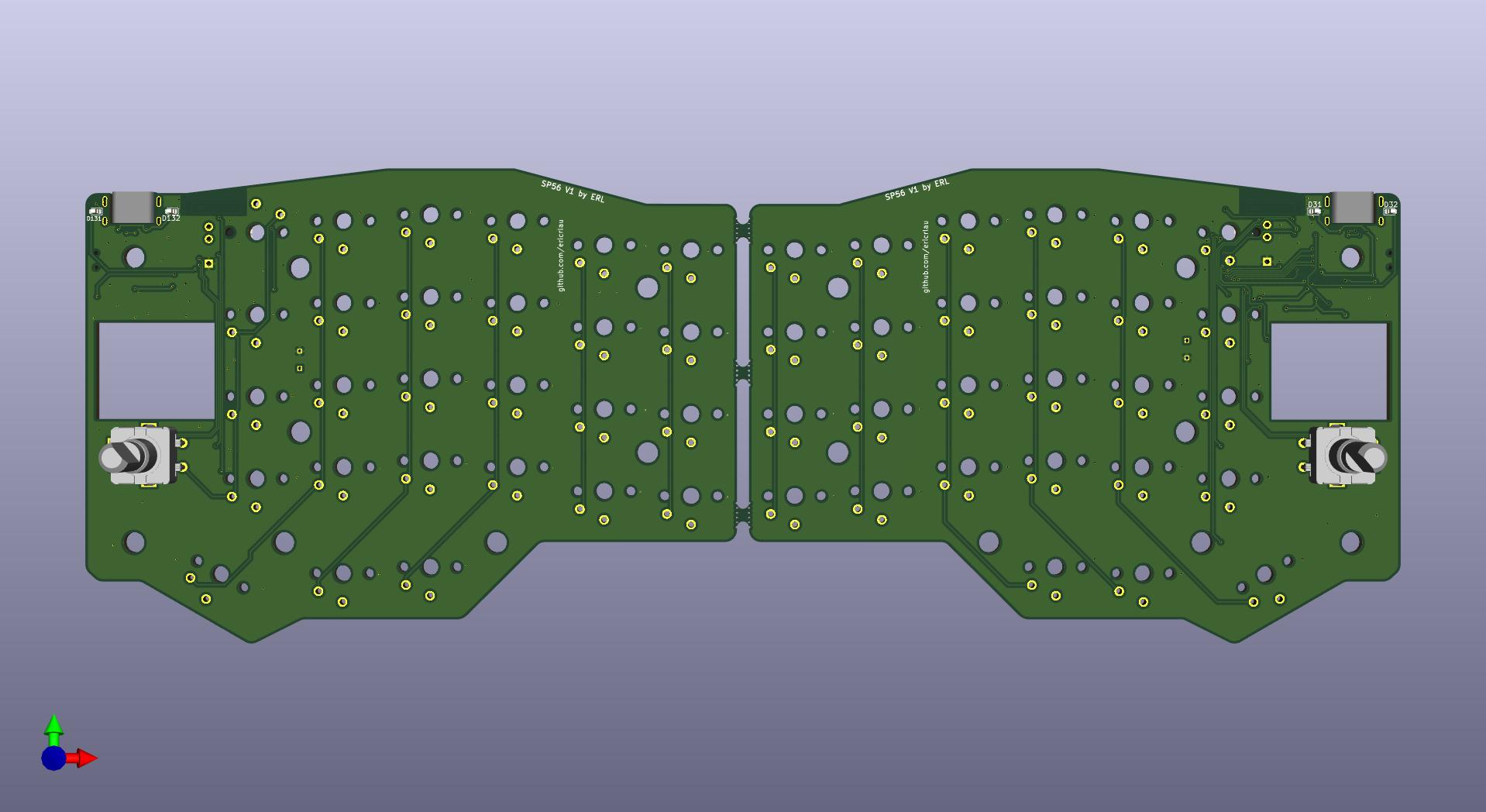

About the SP56 PCB
SP56 is an open source PCB design by ericrlau, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 272.1 × 98.3 mm, with 176 components from 30 distinct parts.
Other key parts include the LN2054Y42AMR, E73-2G4M08S1C and AP2112K-3.3. By type, the board carries 62 diodes, 56 switches, 18 resistors, 16 capacitors, 8 connectors and 6 ICs.
It belongs with the keyboards and iot & wireless designs in this gallery.
From the project
Bluetooth low engery keyboard. Layout based on Sofle keyboard with some modifications. NRF52840 powered. Designed around Kaihl Choc switches and spacing.
- See ZMK docs for instructions on setting up ZMK and custimizing firmware. https://zmkfirmware.dev/docs/user-setup/ https://zmkfirmware.dev/docs/customization - Default *.uf2 files are pre-loaded on assembled pcbs. If you sourced and assembled your own pcb, you can file deafult pre-built firmware here: - https://github.com/ericrlau/COBO-zmk-config/releases

Main components on the SP56
SP56 bill of materials (BOM)
176 components, 30 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | LN2054Y42AMR | SOT-23-5 | U1, U101 |
| 2 | E73-2G4M08S1C | E73-2G4M08S1C_LCSC | U2, U102 |
| 2 | AP2112K-3.3 | SOT-23-5 | U3, U103 |
| 2 | A03407 | SOT-23 | Q1, Q102 |
| 2 | 32.768kHz | Crystal_SMD_MicroCrystal_CM9V-T1A-2Pin_1.6x1.0mm_HandSoldering | Y1, Y101 |
| 2 | USB_C_Receptacle_USB2.0 | USB-C_C168688 | J1, J101 |
| 2 | Conn_01x01_Male | PinSocket_1x01_P1.27mm_Vertical | J2, J3 |
| 2 | SM02B-SRSS-TB(LF)(SN) | SM02B-SRSS-TB(LF)(SN) | J9, J106 |
| 2 | Conn_01x01_Female | PinSocket_1x01_P1.27mm_Vertical | J103, J104 |
| 2 | SW_SPDT | SW-TH_MSK12C02 | BATT1, BATT101 |
| 2 | SW_Push | SW_SPST_B3U-1000P | RESET1, RESET101 |
| 52 | SW_PUSH | KailhLowProfile | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +44 |
| 2 | Rotary_Encoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm_NoSilkScreen | SW25, SW125 |
| 2 | SW_PUSH | KailhLowProfile_1.5U | SW26, SW126 |
| 2 | Conn_01x04_Female | PinHeader_1x04_P2.54mm_Vertical | SWD/C1, SWD/C101 |
| 56 | D | D_SOD-123 | D1, D2, D3, D4, D5, D6, D7, D8 +48 |
| 4 | LED | LED_0603_1608Metric | D31, D32, D131, D132 |
| 2 | 1N5819 | D_SOD-323_HandSoldering | D33, D133 |
| 4 | 22pF | C_0603_1608Metric | C1, C2, C103, C104 |
| 4 | 4.7uF | C_0603_1608Metric | C3, C4, C101, C102 |
Show 10 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 10uF | C_0603_1608Metric | C5, C105 |
| 4 | .1uF | C_0603_1608Metric | C6, C7, C106, C107 |
| 2 | 4.7nF | C_0603_1608Metric | C8, C9 |
| 4 | 1k | R_0603_1608Metric | R1, R6, R101, R106 |
| 2 | 10k | R_0603_1608Metric | R2, R102 |
| 2 | 1M | R_0603_1608Metric | R3, R10 |
| 2 | 820k | R_0603_1608Metric | R4, R104 |
| 2 | 2M | R_0603_1608Metric | R5, R105 |
| 4 | 5.1k | R_0603_1608Metric | R7, R8, R107, R108 |
| 2 | 100k | R_0603_1608Metric | R9, R103 |
SP56 design files
The KiCad project lives in the ericrlau/SP56 repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/SP56/SP56.kicad_pcb
- SchematicPCB/SP56/SP56.kicad_sch
SP56: common questions
How big is the SP56 PCB?
The SP56 measures 272.1 × 98.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SP56?
176 components, from 30 distinct parts. The full bill of materials is listed on this page.
Where can I download the SP56 design files?
From the ericrlau/SP56 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the SP56 design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which ericrlau chose for the repository.
