Handheld PCB layout, top view — open source AVR/Arduino board by erikvanzijst

About the Handheld PCB

Handheld is an open source AVR/Arduino PCB design by erikvanzijst, published on GitHub under the MIT license. It is a board measuring 240 × 77.7 mm, with 113 components from 41 distinct parts.

Its main chip is the ATxmega64C3-AU, from the AVR/Arduino family. Other key parts include the TFBS4711, P-FET, LM3671MF-3.3, NSI45015 and DMN601. By type, the board carries 57 ICs, 15 capacitors, 11 switches, 10 resistors, 9 diodes and 4 connectors.

From the project

DIY 8-bit handheld multiplayer gaming device

An Open Source Hardware custom designed handheld gaming device.

powered by an 8-bit AVR XMEGA microcontroller ultra low-res 24x16 monochrome display made of discrete LEDS authentic 8-bit retro sound and music EEPROM-based hiscores multiplayer over bidirectional infrared communication battery or USB powered

Project write-up at: https://medium.com/@erikvanzijst/diy-8-bit-handheld-multiplayer-gaming-device-cc30baae7372

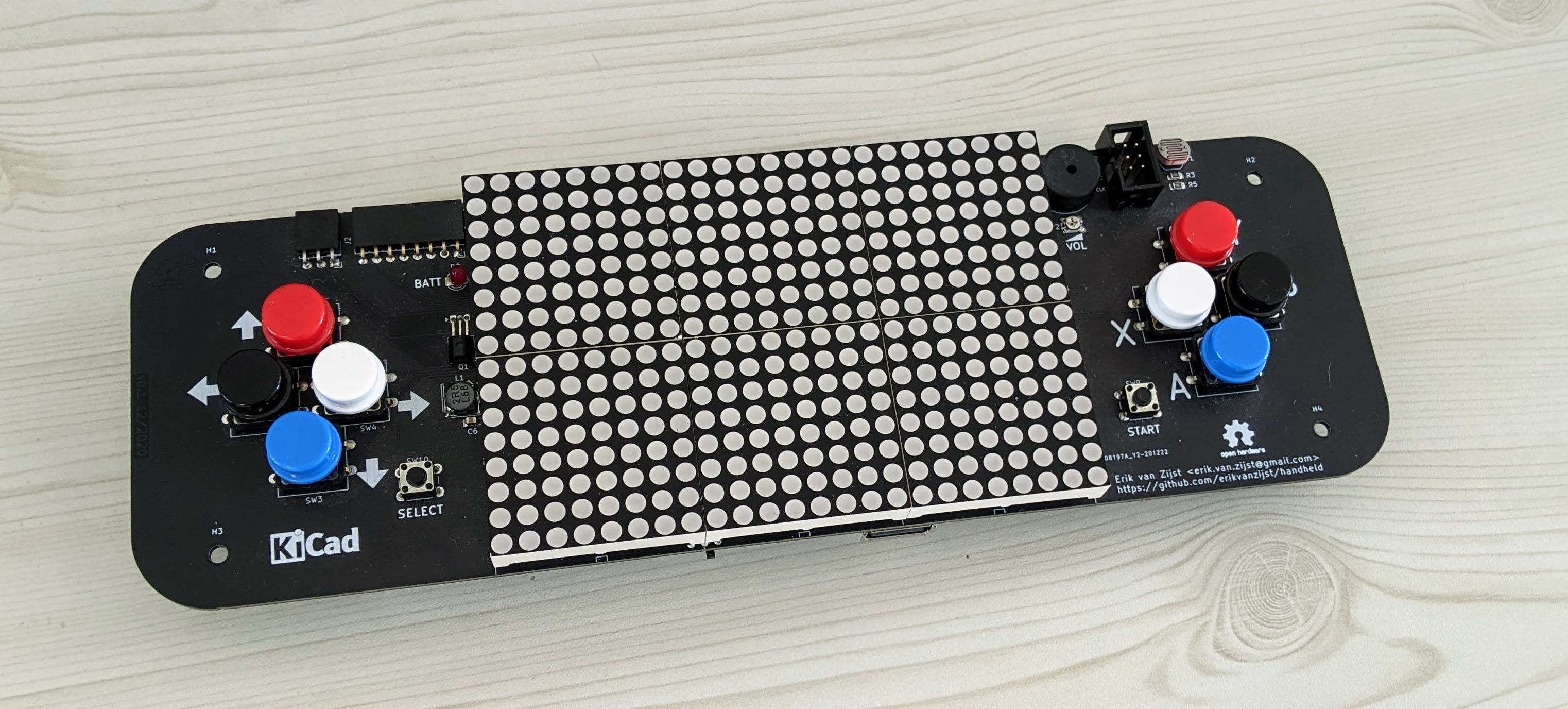

Handheld, from the project README
From the project README

Main components on the Handheld

TFBS4711ATxmega64C3-AUP-FETLM3671MF-3.3NSI45015DMN601SN74LV57374HCT595SN74LVC1G08DBVR

Handheld bill of materials (BOM)

113 components, 41 distinct parts.

QtyPartRefs
1
TFBS4711
U1
1
ATxmega64C3-AU
U2
9
P-FET
U3, U6, U13, U19, U25, U33, U38, U46 +1
1
LM3671MF-3.3
U4
24
NSI45015
U5, U8, U9, U11, U14, U16, U17, U20 +16
12
DMN601
U7, U10, U15, U18, U23, U27, U31, U35 +4
3
SN74LV573
U12, U29, U44
2
74HCT595
U21, U45
4
SN74LVC1G08DBVR
U54, U55, U56, U57
1
PN2222A
Q1
1
Conn_01x08
J1
1
61300311121
J2
1
AVR-PDI-6
J3
1
UE27AC54100
J4
2
2 x 1.5V AA
BT1, BT2
1
PS1240P02BT
BZ1
1
100R
RV1
1
2K
RV2
1
JS202011SCQN
S1
1
HOLD
SW1
Show 21 more
QtyPartRefs
1
PAUSE
SW2
1
SDROP
SW3
1
HDROP
SW4
1
ROTR
SW5
2
RIGHT
SW6, SW8
1
ROTL
SW7
1
START
SW9
1
SELECT
SW10
2
MRA4003T3G
D1, D2
6
DISP_LED_MAT_8x8_COM_ANODE
D3, D4, D5, D6, D7, D8
1
BATT LED
D9
1
10uH
L1
12
100nF
C1, C3, C4, C7, C8, C9, C10, C11 +4
2
4.7uF
C2, C5
1
10uF
C6
1
R_PHOTO
R1
1
47R
R2
3
10K
R3, R4, R5
1
4.7K
R6
3
100R
R7, R8, R9
1
150R
R10

Handheld design files

The KiCad project lives in the erikvanzijst/handheld repository on GitHub; these links point at the commit this page was built from.

Handheld: common questions

What microcontroller does the Handheld use?

The Handheld is built around the ATxmega64C3-AU, from the AVR/Arduino family.

How big is the Handheld PCB?

The Handheld measures 240 × 77.7 mm and is 1.6002 mm thick.

How many components are on the Handheld?

113 components, from 41 distinct parts. The full bill of materials is listed on this page.

Where can I download the Handheld design files?

From the erikvanzijst/handheld repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Handheld design in my own project?

Yes, under the terms of its MIT license, which erikvanzijst chose for the repository.

Can I test firmware for the Handheld without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
