GSR monitor

esl-epfl·GSR_monitor·GSR_Board/GSR_Board.kicad_pcb

GSR monitor PCB layout, top view — open source board by esl-epfl

About the GSR monitor PCB

GSR monitor is an open source PCB design by esl-epfl, published on GitHub. It is a 4-layer board measuring 53.4 × 38.5 mm, with 115 components from 49 distinct parts.

Other key parts include the OPA387DBVR, TPS7A2030PDQNR, MCP73871-2CCI/ML, TPS7A0508PDQNR and DS05-127-2-08BK-SMT-TR. By type, the board carries 48 resistors, 36 capacitors, 16 ICs, 4 connectors, 2 jumpers and 2 diodes.

It belongs with the power & battery and test & measurement designs in this gallery.

From the project

Discrete validation platform for the HEEPidermis low-power SoC, designed for low-noise Galvanic Skin Response (GSR) measurements

The GSR Monitor Board is designed as a validation platform for the HEEPidermis SoC, currently under development at the Embedded Systems Laboratory (ESL), EPFL. This board facilitates testing and evaluation of key functionalities, particularly focusing on high-precision Galvanic Skin Response (GSR) measurement with low noise operation.

Reference: > J. A. Miranda Calero, L. Gutiérrez-Martín, E. Rituerto-González, E. Romero-Perales, J. M. Lanza-Gutiérrez, C. Peláez-Moreno, and C. López-Ongil, “WEMAC: Women and Emotion Multi-modal Affective Computing dataset,” Scientific Data, vol. 11, no. 1, p.…

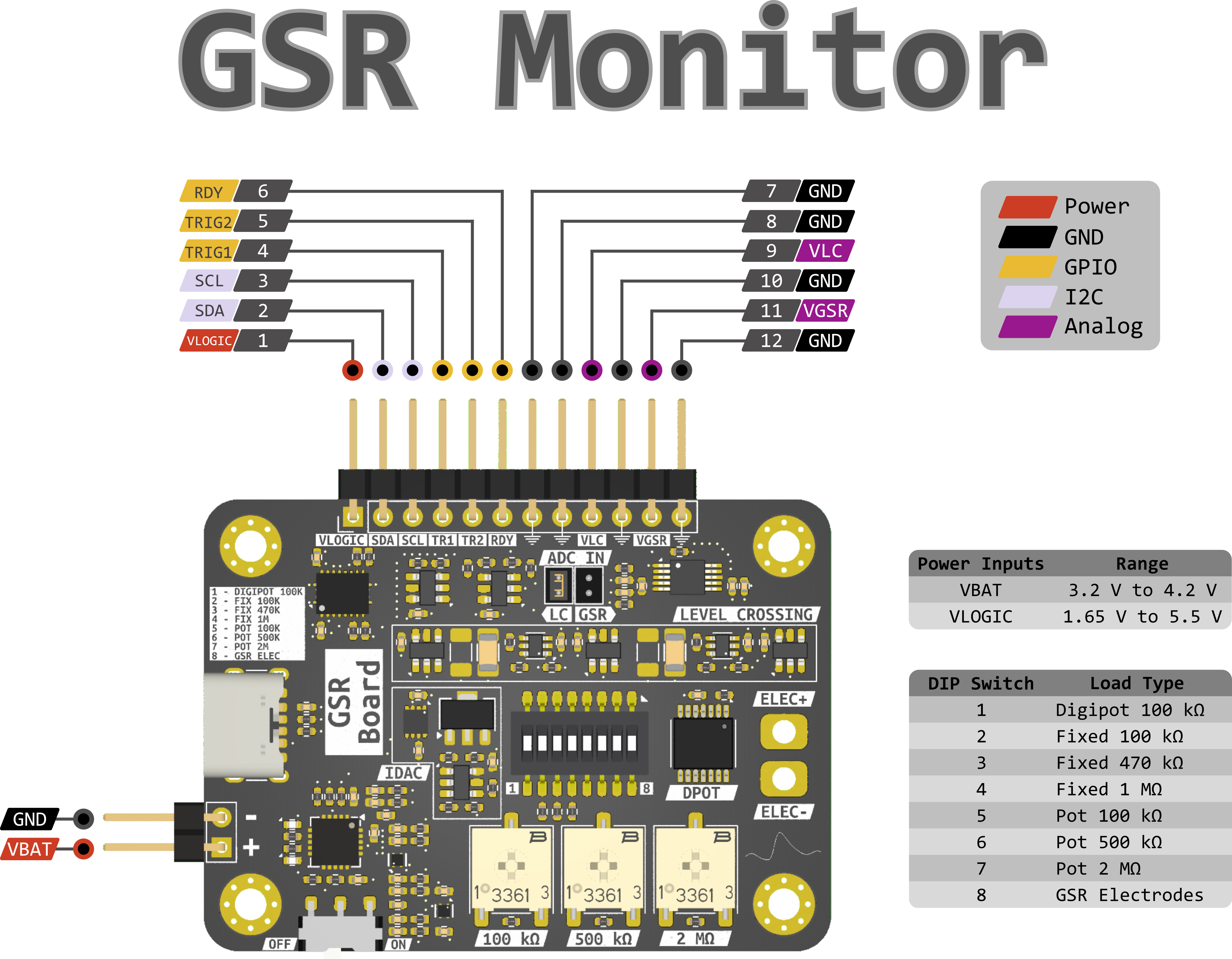

GSR monitor, from the project README
From the project README

Main components on the GSR monitor

OPA387DBVRTPS7A2030PDQNRMCP73871-2CCI/MLTPS7A0508PDQNRDS05-127-2-08BK-SMT-TRAD5693RBCPZ-2RL7AD5241BRUZ100-R7TMUX1119DCKRADS1014IDGSTTXS0108ERGYR

GSR monitor bill of materials (BOM)

115 components, 49 distinct parts — part numbers from the project's BOM.

QtyPartRefs
6
OPA387DBVR
U1, U9, U10, U12, U13, U14
1
TPS7A2030PDQNR
U2
1
MCP73871-2CCI/ML
U3
1
TPS7A0508PDQNR
U4
1
DS05-127-2-08BK-SMT-TR
U5
1
AD5693RBCPZ-2RL7
U6
1
AD5241BRUZ100-R7
U7
2
TMUX1119DCKR
U8, U11
1
ADS1014IDGST
U15
1
TXS0108ERGYR
U16
1
TN2501N8-G
Q1
1
USB4125-GF-A-0190
J1
1
~
J2
1
GSR Electrodes
J3
1
~
J4
1
850-80-002-10-001101
JP1
1
850-80-002-10-001101
JP2
1
3361P-1-104GLF
100K
RV1
1
3361P-1-205GLF
2M00
RV2
1
3361P-1-504GLF
500K
RV3
Show 29 more
QtyPartRefs
1
AYZ0102AGRLC
SW1
1
SML-P11MTT86R
D1
1
SML-P11VTT86R
D2
2
LI0402B301R-10
300R
FB1, FB2
13
GRM155R71A104JA01D
100n 10V
C1, C13, C14, C16, C18, C20, C21, C24 +5
6
CL05A226MQ5CUN
22u0 6V3
C2, C4, C7, C12, C34, C36
5
CL05B103JO5NNWC
10n0 16V
C3, C5, C15, C35, C37
5
CL05A106MP6NUN8
10u0 10V0
C8, C9, C10, C11, C28
2
C1206C685K4RACAUTO
6u80 16V
C17, C22
2
16MU155MA23216
1u50 16V
C19, C23
2
GRM155R71H822JA88D
8n20 16V
C29, C30
1
GRM155R71C823JA88J
82n0 16V
C31
1
ERJ-2RKF1203X
120K
R1
1
CRCW040210R0FKEE
10R0
R2
1
ERJ-2RKF3002X
30K0
R3
11
CRCW040210K0FKEDHP
10K0
R4, R6, R7, R12, R17, R26, R38, R43 +3
1
CRCW040250K0FKED
50K0
R5
4
ERJ-2BQJR30X
0R30
R8, R10, R47, R49
4
CRCW04021R00FKEDHP
1R00
R9, R11, R48, R50
3
TNPU0402100KAZEP00
100K
R13, R29, R31
1
MCS0402MD1004BE000
1M00
R14
3
ERJ-2RHD512X
5K10
R15, R16, R22
2
CRCW0402100KFKEDC
100K
R18, R23
1
CRCW0402270KFKTD
270K
R19
8
ERA-2ARC102X
1K00
R20, R21, R28, R30, R34, R35, R36, R37
2
MCS0402MD4703BE500
470K
R27, R40
2
CRCW04024R70FKED
4R70
R32, R33
2
RP0402DRD07100RL
100R
R39, R42
1
RE0402DRE07130KL
130K
R41

GSR monitor design files

The KiCad project lives in the esl-epfl/GSR_monitor repository on GitHub; these links point at the commit this page was built from.

GSR monitor: common questions

How big is the GSR monitor PCB?

The GSR monitor measures 53.4 × 38.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the GSR monitor?

115 components, from 49 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the GSR monitor design files?

From the esl-epfl/GSR_monitor repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the GSR monitor design in my own project?

The repository has no license, so all rights stay with esl-epfl. Use it as a reference, and ask the author before reusing the design.
