Arduino-RF-Pro-Mini PCB layout, top view — open source AVR/Arduino board by etimou

About the Arduino-RF-Pro-Mini PCB

Arduino-RF-Pro-Mini is an open source AVR/Arduino PCB design by etimou, published on GitHub. It is a 2-layer board measuring 21.6 × 48.3 mm, with 39 components from 30 distinct parts.

Its main chip is the ATmega328P-AU, from the AVR/Arduino family. Other key parts include the MIC5205-3.3YM5. By type, the board carries 6 capacitors, 5 jumpers, 5 resistors, 2 ICs, 1 transistor and 1 crystal.

From the project

Arduino Pro Mini + nRF24L01P = Arduino-RF-Pro-Mini

You need to select Arduino Pro or Pro mini, ATmega328P (3.3V, 8MHz) in the Arduino IDE. An USB-Serial adapter that provides 3.3V is required, otherwise the radio chip can be damaged.

The example program consists in a roundtrip message that is sent from a node, using a gateway. You need two modules.

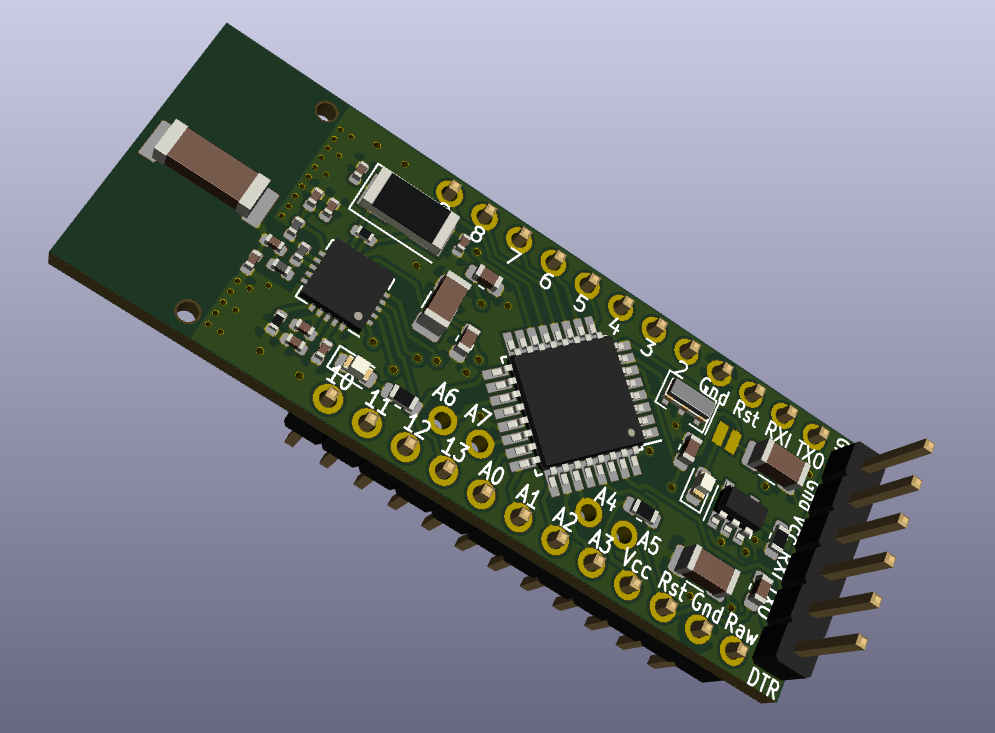

Arduino-RF-Pro-Mini, from the project README
From the project README

Main components on the Arduino-RF-Pro-Mini

ATmega328P-AUMIC5205-3.3YM5

Arduino-RF-Pro-Mini bill of materials (BOM)

39 components, 30 distinct parts.

QtyPartRefs
1
ATmega328P-AU
U1
1
MIC5205-3.3YM5
U2
1
8/16/20MHz
Q1
1
16 MHZ
X1
1
Conn_01x06_Male
JP1
2
Conn_01x02_Male
JP2, JP3
2
Conn_01x12_Male
JP6, JP7
1
Antenna
_A1
2
22pF
_C1, _C2
1
2.2nF
_C3
1
4.7pF
_C4
1
1.5pF
_C5
1
1.0pF
_C6
1
33nF
_C7
1
1nF
_C8
1
10nF
_C9
1
10uF
_C10
1
8.2nH
_L1
1
2.7nH
_L2
1
3.9nH
_L3
Show 10 more
QtyPartRefs
1
1M
_R1
1
22K
_R2
1
nRF24L01P
_U1
1
Red
LED1
1
Green
D3
4
0.1uF
C1, C2, C3, C10
2
10uF
C13, C19
2
R
R1, R3
2
10K
R2, R11
1
330
R6

Arduino-RF-Pro-Mini design files

The KiCad project lives in the etimou/Arduino-RF-Pro-Mini repository on GitHub; these links point at the commit this page was built from.

Arduino-RF-Pro-Mini: common questions

What microcontroller does the Arduino-RF-Pro-Mini use?

The Arduino-RF-Pro-Mini is built around the ATmega328P-AU, from the AVR/Arduino family.

How big is the Arduino-RF-Pro-Mini PCB?

The Arduino-RF-Pro-Mini measures 21.6 × 48.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Arduino-RF-Pro-Mini?

39 components, from 30 distinct parts. The full bill of materials is listed on this page.

Where can I download the Arduino-RF-Pro-Mini design files?

From the etimou/Arduino-RF-Pro-Mini repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Arduino-RF-Pro-Mini design in my own project?

The repository has no license, so all rights stay with etimou. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Arduino-RF-Pro-Mini without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
