Porsche quad gauge

Evancli·porsche-quad-gauge·PCB/KiCad/Porsche Quad Gauge.kicad_pcb

Porsche quad gauge PCB layout, top view — open source AVR/Arduino board by Evancli

About the Porsche quad gauge PCB

Porsche quad gauge is an open source AVR/Arduino PCB design by Evancli, published on GitHub under the CC-BY-SA-4.0 license. It is a board measuring 98 × 98 mm, with 57 components from 18 distinct parts.

Its main chip is the ATMEGA328P_TQFP, from the AVR/Arduino family. Other key parts include the TLP290-4 and L4941BDT-TR. By type, the board carries 13 connectors, 13 resistors, 12 diodes, 7 capacitors and 3 ICs.

From the project

A custom built quad gauge for a Porsche 914 using new and salvaged components.

This work is licensed under a [Creative Commons Attribution-ShareAlike 4.0 International License][cc-by-sa].

[cc-by-sa]: http://creativecommons.org/licenses/by-sa/4.0/ [cc-by-sa-image]: https://licensebuttons.net/l/by-sa/4.0/88x31.png [cc-by-sa-shield]: https://img.shields.io/badge/License-CC%20BY--SA%204.0-lightgrey.svg

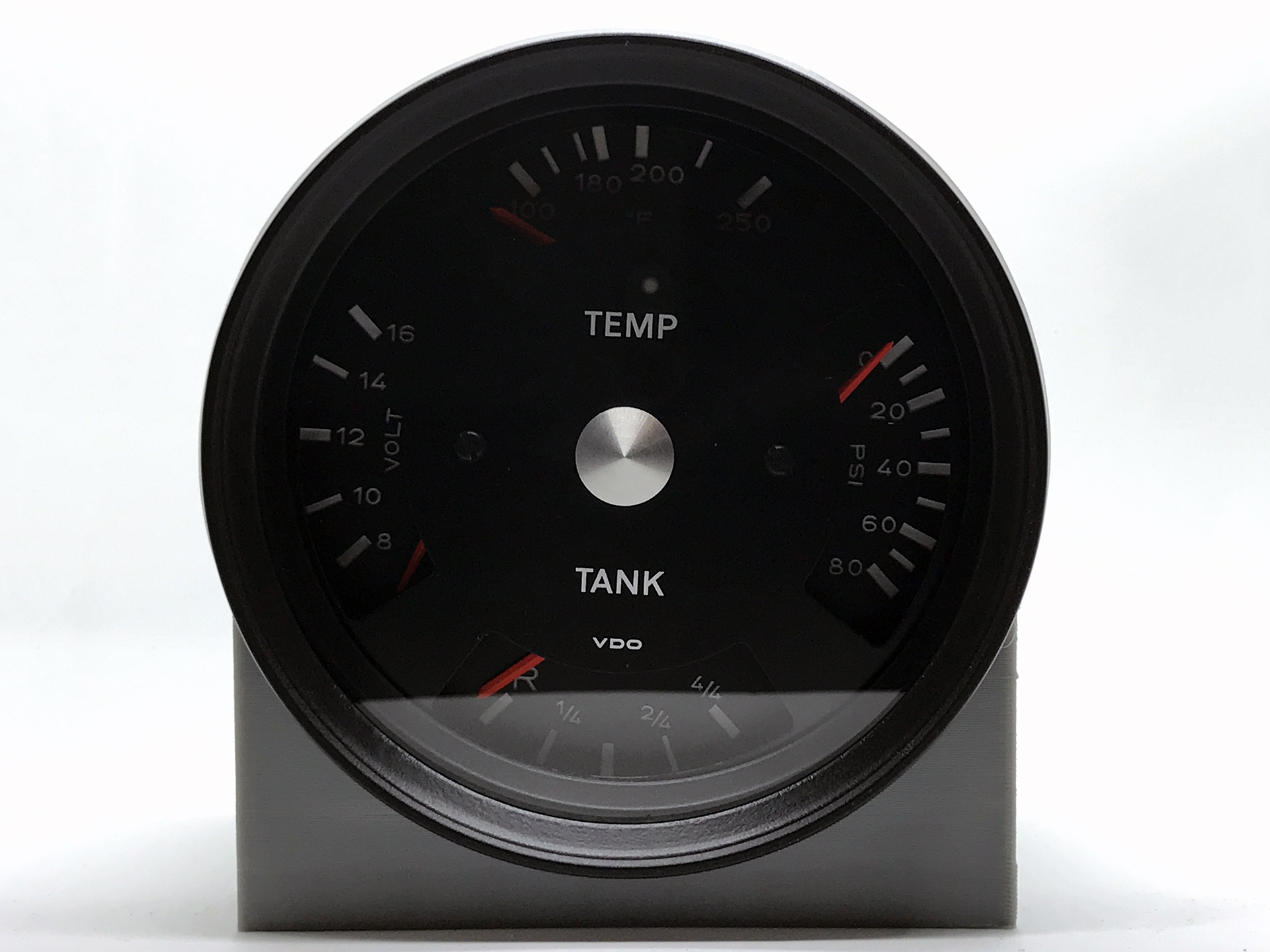

Porsche quad gauge, from the project README
From the project README

Main components on the Porsche quad gauge

ATMEGA328P_TQFPTLP290-4L4941BDT-TR

Porsche quad gauge bill of materials (BOM)

57 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATMEGA328P_TQFP
U1
1
TLP290-4
U2
1
L4941BDT-TR
U3
11
CONNECTOR_QC_TAB_0.25
12V1, ALTERNATOR1, BRAKE_GND1, COOLANT_TEMP1, FLASHER1, FUEL1, FUEL_LOW1, GND1 +3
1
AVR_SPI_PROG_3X2TESTPOINTS
J1
1
CONN_02
J2
4
—
@HOLE0, @HOLE1, @HOLE2, @HOLE3
2
VDO_OLD
COOLANT_TEMP_GAUGE1, FUEL_GAUGE1
2
VDO_NEW
OIL_PRESSURE_GAUGE1, VOLTAGE_GAUGE1
1
PRQC16.00SR1010V00L
OSC1
12
WS2812B
D1, D2, D3, D4, D5, D6, D7, D8 +4
6
10uF
C1, C2, C3, C4, C5, C6
1
0.1uF
C7
4
1.2K
R1, R2, R3, R4
3
1k
R5, R6, R7
1
10K
R8
1
1M
R9
4
392
R10, R11, R12, R13

Porsche quad gauge design files

The KiCad project lives in the Evancli/porsche-quad-gauge repository on GitHub; these links point at the commit this page was built from.

Porsche quad gauge: common questions

What microcontroller does the Porsche quad gauge use?

The Porsche quad gauge is built around the ATMEGA328P_TQFP, from the AVR/Arduino family.

How big is the Porsche quad gauge PCB?

The Porsche quad gauge measures 98 × 98 mm and is 1.6 mm thick.

How many components are on the Porsche quad gauge?

57 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Porsche quad gauge design files?

From the Evancli/porsche-quad-gauge repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Porsche quad gauge design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which Evancli chose for the repository.

Can I test firmware for the Porsche quad gauge without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
