ArmLabRadio
About the ArmLabRadio PCB
ArmLabRadio is an open source STM32 PCB design by explosion33, published on GitHub. It is a 2-layer board measuring 57.2 × 57.2 mm, with 90 components from 53 distinct parts.
Its main chip is the C79861, from the STM32 family. Other key parts include the C969913, C122881, MCP41010 and MCP6001-OT. By type, the board carries 43 capacitors, 15 resistors, 9 inductors, 6 connectors, 5 ICs and 5 diodes.
It belongs with the rf & radio designs in this gallery.

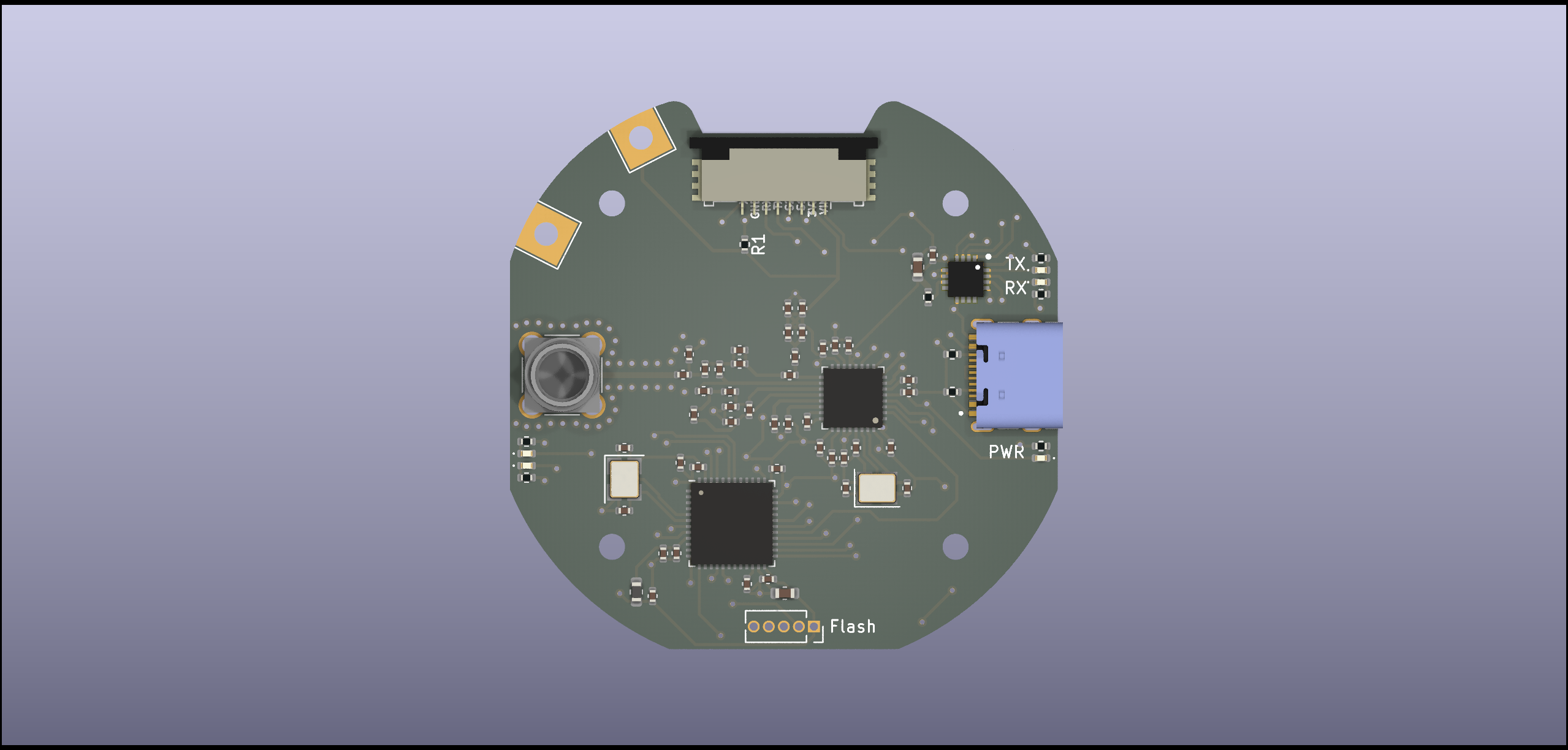

From the project
KiCad files for CC1200 based 2m / 70cm radio
CC1200stm32 for the embedded device code
ArmLabCC1200 for Serial / I2C inteface libraries
Main components on the ArmLabRadio
ArmLabRadio bill of materials (BOM)
90 components, 53 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C79861 STM32F401CCU6 | QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm | U1 |
| 1 | C969913 CP2102N-Axx-xQFN20 | WFQFN-20 | U2 |
| 1 | C122881 CC1200 | QFN-32-1EP_5x5mm_P0.5mm_EP3.45x3.45mm | U3 |
| 1 | MCP41010 | SOIC127P599X175-8N | U7 |
| 1 | MCP6001-OT | SOT-23-5 | U8 |
| 1 | C9010 40MHz | Oscillator_SMD_Abracon_ASE-4Pin_3.2x2.5mm | X1 |
| 1 | C13738 16MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | TYPE-C-31-M-12 | HRO_TYPE-C-31-M-12 | J1 |
| 2 | PWR | TestPoint_THTPad_4.0x4.0mm_Drill2.0mm | J2, J4 |
| 2 | GND | TestPoint_THTPad_4.0x4.0mm_Drill2.0mm | J3, J5 |
| 1 | Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | J6 |
| 1 | Antenna_Shield | SMA_Amphenol_132134-11_Vertical | AE2 |
| 1 | C132510 EXT1 | Molex_200528-0080_1x08-1MP_P1.00mm_Horizontal | EX1 |
| 1 | 4259-63 | SOT-363_SC-70-6 | PE4259-63 |
| 1 | RA07H4047M-101 | RA07h4047M | RFAMP2 |
| 1 | PT100 | R_0603_1608Metric | TH1 |
| 1 | C5160717 PWR_LED | LED_0402_1005Metric | D1 |
| 2 | C130722 LED | LED_0402_1005Metric | D2, D3 |
| 1 | C136765 TXT | LED_0402_1005Metric | D4 |
| 1 | C130722 RXT | LED_0402_1005Metric | D5 |
Show 33 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C85831 120R | L_0603_1608Metric | FB1 |
| 2 | C167484 56nH | C_0402_1005Metric | L1, L2 |
| 2 | C12669 27nH | C_0402_1005Metric | L3, L4 |
| 2 | C27143 15nH | C_0402_1005Metric | L5, L6 |
| 1 | C12670 22nH | C_0402_1005Metric | L7 |
| 1 | 43nH | L_0402_1005Metric | L16 |
| 1 | C71631 4.7uF | C_0603_1608Metric | C1 |
| 1 | c 10uF | C_0603_1608Metric | C2 |
| 4 | C32949 10pF | C_0402_1005Metric | C3, C6, C31, C36 |
| 5 | C307331 100nF | C_0402_1005Metric | C4, C5, C7, C8, C13 |
| 1 | C12530 2.2uF | C_0402_1005Metric | C9 |
| 3 | C15195 10nF | C_0402_1005Metric | C10, C20, C22 |
| 2 | C52923 1uF | C_0402_1005Metric | C11, C12 |
| 9 | C508865 47nF | C_0402_1005Metric | C15, C17, C18, C19, C23, C24, C25, C28 +1 |
| 1 | C16772 0.22 uF | C_0402_1005Metric | C16 |
| 1 | C162192 1.8nF | C_0402_1005Metric | C21 |
| 1 | C335543 56pF | C_0402_1005Metric | C26 |
| 1 | C126492 100pF | C_0402_1005Metric | C27 |
| 1 | C86288 39pF | C_0402_1005Metric | C30 |
| 3 | C281761 5.1pF | C_0402_1005Metric | C32, C33, C35 |
| 1 | C159806 2.2pF | C_0402_1005Metric | C34 |
| 1 | C325456 6.2pF | C_0402_1005Metric | C37 |
| 3 | 0.1uF | C_0402_1005Metric | C67, C70, C71 |
| 3 | 100pF | C_0402_1005Metric | C68, C72, C73 |
| 1 | 10nF | C_0402_1005Metric | C69 |
| 4 | C25906 5.11k | R_0402_1005Metric | R1, R3, R4, R12 |
| 5 | C11702 1k | R_0402_1005Metric | R5, R6, R7, R10, R11 |
| 1 | C25796 56k | C_0402_1005Metric | R8 |
| 1 | C25084 18 | C_0402_1005Metric | R9 |
| 1 | C138289 0R | C_0402_1005Metric | R13 |
| 1 | C413091 100 | R_0402_1005Metric | R17 |
| 1 | C11702 1000 | R_0402_1005Metric | R18 |
| 1 | 1k | R_0402_1005Metric | R19 |
ArmLabRadio design files
The KiCad project lives in the explosion33/ArmLabRadio_PCB repository on GitHub; these links point at the commit this page was built from.
ArmLabRadio: common questions
What microcontroller does the ArmLabRadio use?
The ArmLabRadio is built around the C79861, from the STM32 family.
How big is the ArmLabRadio PCB?
The ArmLabRadio measures 57.2 × 57.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the ArmLabRadio?
90 components, from 53 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the ArmLabRadio design files?
From the explosion33/ArmLabRadio_PCB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the ArmLabRadio design in my own project?
The repository has no license, so all rights stay with explosion33. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the ArmLabRadio without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
