About the Alexiares LPF PCB
Alexiares LPF is an open source PCB design by F6ITU, published on GitHub. It is a 4-layer board measuring 150 × 100 mm, with 134 components from 42 distinct parts.
By type, the board carries 69 capacitors, 31 inductors, 15 diodes and 4 connectors.
It belongs with the rf & radio and retro computing designs in this gallery.
From the project

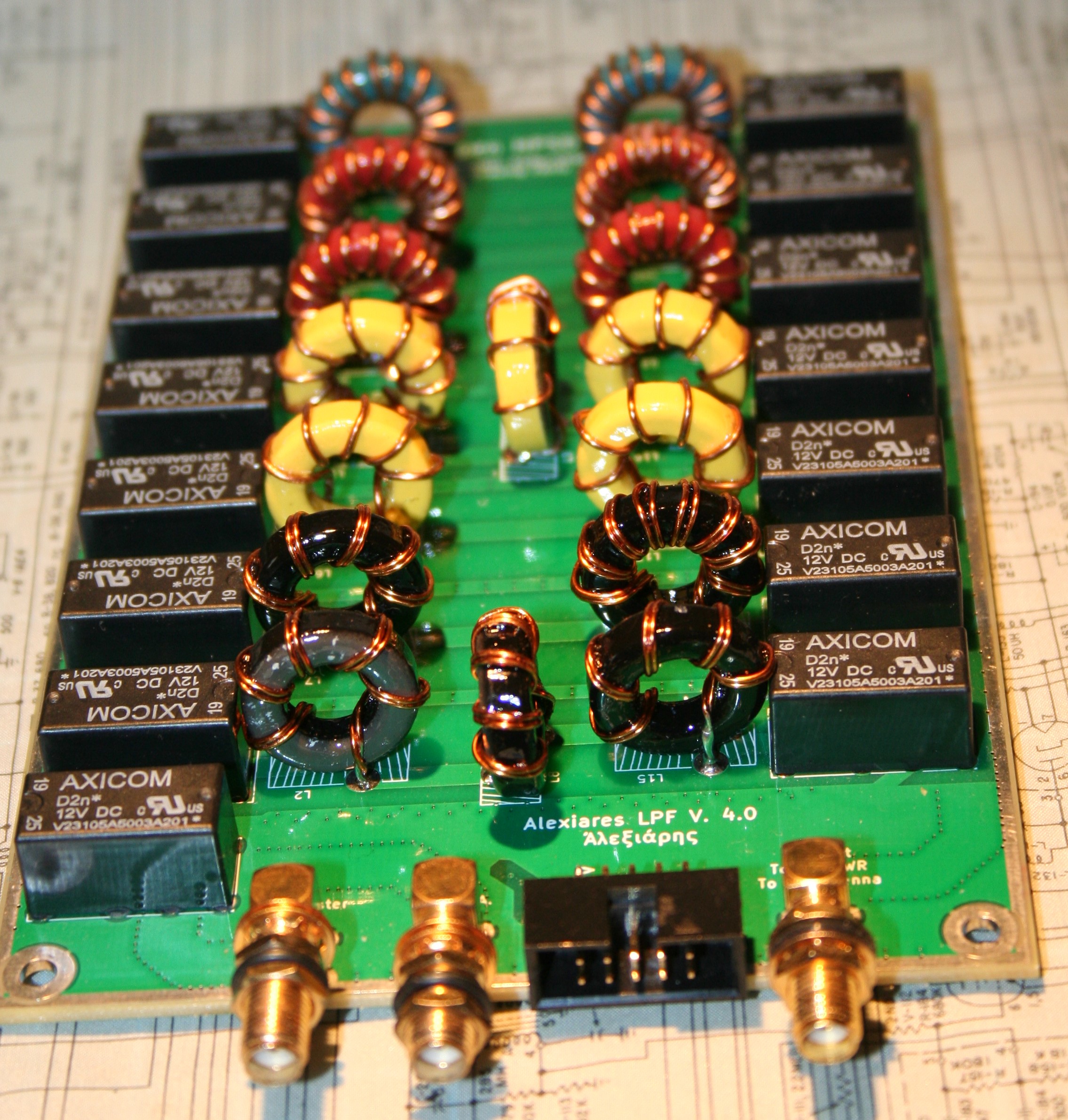

Low-pass filter section of OpenHPSDR frontend ((Alex retrofit))
[](https://github.com/F6ITU/AlexiaresLPF#alexiareslpf)
This repository contains the up to date version of the OpenHPSDR Low Pass Filter project (Alexiares frontend).
Pour plus d'informations, consultez le Wiki associé à cette page
For more information, see the Wiki associated with this page
Important notice : please check the "Branch" pull-down menu to see the different versions of the pcb
Alexiares LPF bill of materials (BOM)
134 components, 42 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | — | PinHeader_2x05_P2.54mm_Vertical | J1 |
| 3 | SMA | SMA_PINS | P1, P3, P4 |
| 15 | D2n | D2n | RL1, RL2, RL3, RL4, RL5, RL6, RL7, RL8 +7 |
| 15 | D | D_SMB | D1, D2, D3, D4, D5, D6, D7, D8 +7 |
| 1 | 562nH | T50_V_THT | L1 |
| 2 | 169nH | T50_V_THT | L2, L15 |
| 1 | 3.5uH | T50_V_THT | L3 |
| 1 | 1,66uH | T50_V_THT | L4 |
| 1 | 1.18uH | T50_V_THT | L5 |
| 4 | 311nH | T50_V_THT | L6, L9, L14, L16 |
| 1 | 235nH | T50_V_THT | L7 |
| 1 | 196nH | T50_V_THT | L8 |
| 1 | 4.4uH | T50_V_THT | L10 |
| 1 | 2.02uH | T50_V_THT | L11 |
| 1 | 1.36uH | T50_V_THT | L12 |
| 1 | 351nH | T50_V_THT | L13 |
| 15 | Choke | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | L17, L24, L25, L26, L27, L28, L29, L30 +7 |
| 29 | 10n | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 +21 |
| 2 | 120p | ATC_500_HandSoldering | C11, C27 |
| 4 | 39p | ATC_500_HandSoldering | C16, C18, C29, C41 |
Show 22 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 4.7p | ATC_500_HandSoldering | C17, C45 |
| 1 | 1000p | ATC_500_HandSoldering | C19 |
| 2 | 470p | ATC_500_HandSoldering | C20, C25 |
| 1 | 330p | ATC_500_HandSoldering | C21 |
| 3 | 82p | ATC_500_HandSoldering | C22, C50, C55 |
| 2 | 68p | ATC_500_HandSoldering | C23, C40 |
| 3 | 56p | ATC_500_HandSoldering | C24, C28, C38 |
| 1 | 240p | ATC_500_HandSoldering | C26 |
| 1 | 12p | ATC_500_HandSoldering | C30 |
| 3 | 220p | ATC_500_HandSoldering | C31, C35, C36 |
| 1 | 2200p | ATC_500_HandSoldering | C32 |
| 2 | 1100p | ATC_500_HandSoldering | C33, C46 |
| 1 | 680p | ATC_500_HandSoldering | C34 |
| 2 | 180p | ATC_500_HandSoldering | C37, C42 |
| 2 | 150p | ATC_500_HandSoldering | C39, C51 |
| 1 | 22p | ATC_500_HandSoldering | C43 |
| 1 | 6.8p | ATC_500_HandSoldering | C44 |
| 1 | 560p | ATC_500_HandSoldering | C47 |
| 1 | 390p | ATC_500_HandSoldering | C48 |
| 1 | 100p | ATC_500_HandSoldering | C49 |
| 1 | C (nc) | ATC_500_HandSoldering | C59 |
| 1 | 100n | C_0805_2012Metric_Pad1.15x1.40mm_HandSolder | C68 |
Alexiares LPF design files
The KiCad project lives in the F6ITU/Alexiares_LPF repository on GitHub; these links point at the commit this page was built from.
- LayoutLPF.kicad_pcb
- SchematicLPF.kicad_sch
- BOMBOM/BOM LPF Mouser grx.xls
Alexiares LPF: common questions
How big is the Alexiares LPF PCB?
The Alexiares LPF measures 150 × 100 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Alexiares LPF?
134 components, from 42 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Alexiares LPF design files?
From the F6ITU/Alexiares_LPF repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Alexiares LPF design in my own project?
The repository has no license, so all rights stay with F6ITU. Use it as a reference, and ask the author before reusing the design.
