K IO Board

F6ITU·K_IO_Board

K IO Board layout, top view — open source board by F6ITU

About the K IO Board

K IO Board is an open source PCB design by F6ITU, published on GitHub. It is a 2-layer board measuring 100 × 100 mm, with 89 components from 25 distinct parts.

Other key parts include the L7808. By type, the board carries 45 capacitors, 23 inductors, 19 connectors, 1 IC and 1 diode.

It belongs with the rf & radio designs in this gallery.

From the project

LA2NI's OpenHPSDR I/O Board (Kicad Version)

OpenHPSDR P.A. OpenHPSDR Input/Output board by LA2NI (Munin 400)

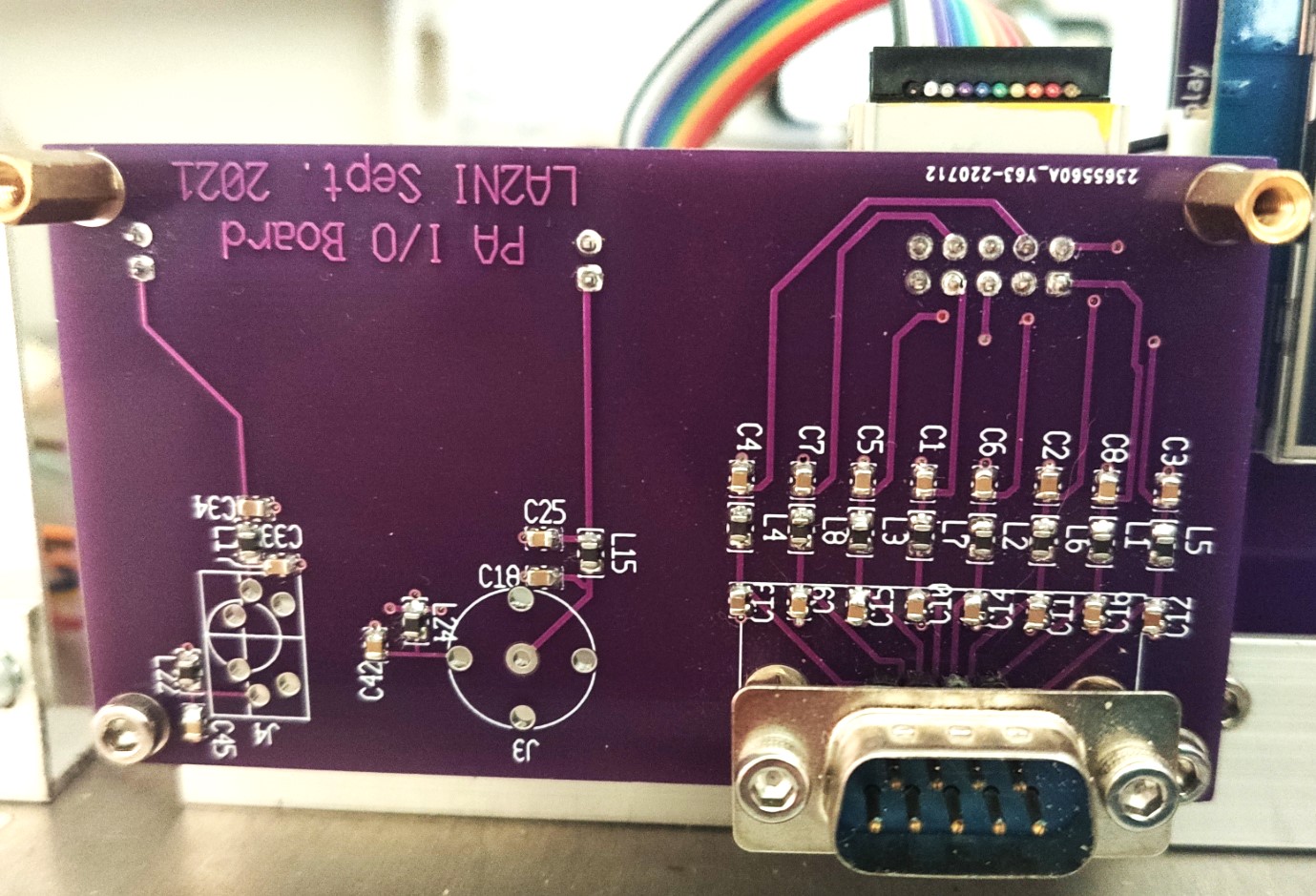

This picture shows an early design of the I/O board by LA2NI

This I/O board is part of a set consisting of a 400 W LDMos based RF power amplifier (Munin 400), a medium power (600 or 1500 W) Zolotarev low pass filter, an Automatic Antenna Tuner (ATU) nickname « Aries » and a 4 port antenna switch.

K IO Board, from the project README
From the project README

Main components on the K IO Board

L7808

K IO Board bill of materials (BOM)

89 components, 25 distinct parts.

QtyPartRefs
1
L7808
U1
1
Conn from SDR J1
J1
1
ACC Out
J2
1
PTT In
J4
1
Line In
J5
1
Line Out
J6
1
Right SPKR
J7
1
Headphone front plate
J9
1
To Andromeda J7
J10
1
PTT Out
J11
1
PTT Int
J12
1
SPKR Mute
J13
1
Jack_in/out
J14
1
to Andromeda J2
J15
1
Conn_01x02_Socket
J18
1
To SDR
J19
1
to 12V Andromeda in
J20
1
Switched 12V From Andromeda
J21
1
To Alexandrie
J22
1
To OCXO
J23
Show 5 more
QtyPartRefs
1
SS36
D1
23
fb0805
FB2, FB3, FB4, FB5, FB6, FB7, FB8, FB9 +15
2
C_Small
C1, C6
41
10n
C2, C3, C4, C5, C7, C8, C9, C10 +33
2
C_Polarized_Small
C11, C26

K IO Board design files

The KiCad project lives in the F6ITU/K_IO_Board repository on GitHub; these links point at the commit this page was built from.

K IO Board: common questions

How big is the K IO Board?

The K IO Board measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the K IO Board?

89 components, from 25 distinct parts. The full bill of materials is listed on this page.

Where can I download the K IO Board design files?

From the F6ITU/K_IO_Board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the K IO Board design in my own project?

The repository has no license, so all rights stay with F6ITU. Use it as a reference, and ask the author before reusing the design.
