fadushin·nicerf-lora·dual-chan/project.kicad_pcb

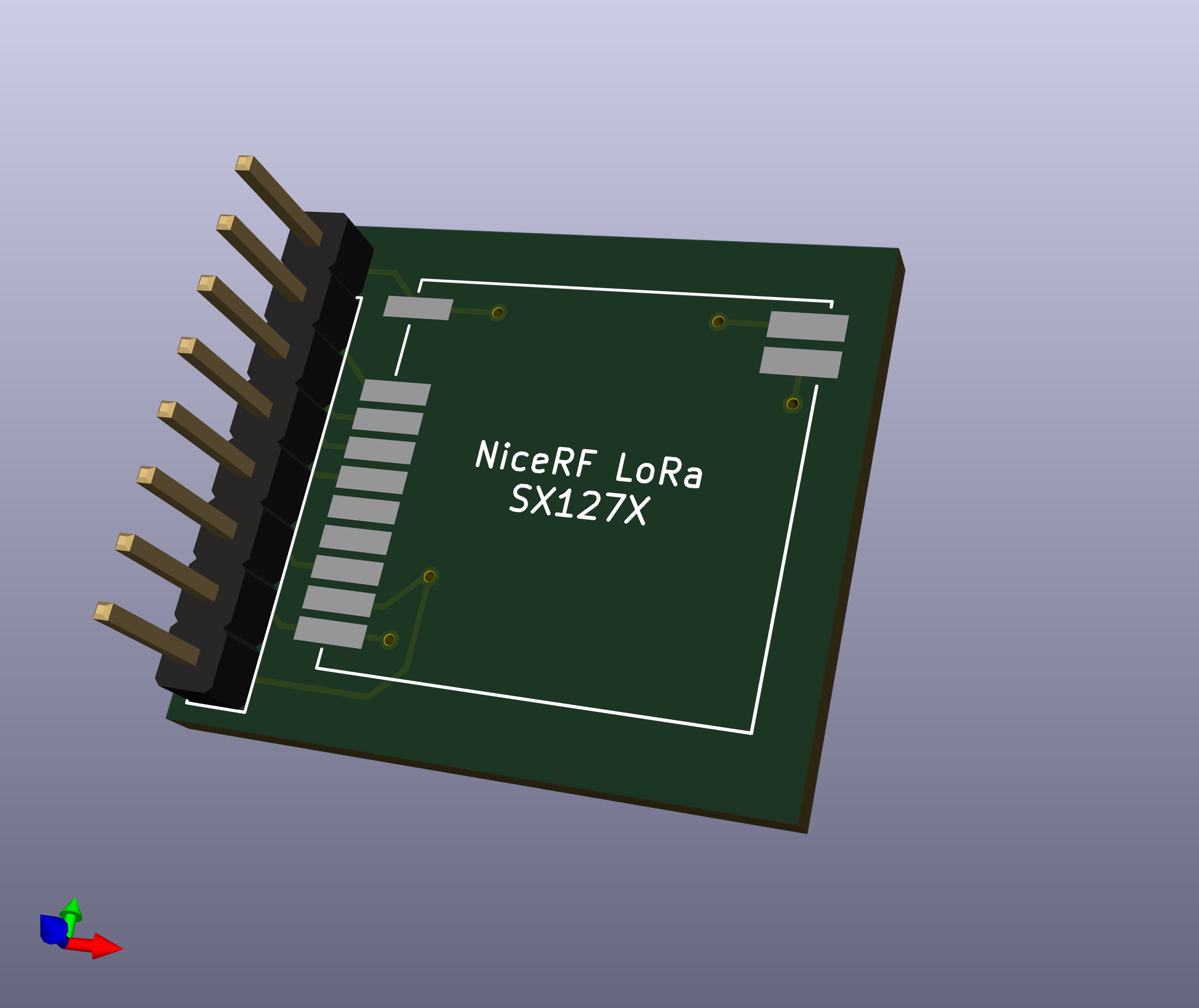

Nicerf lora PCB layout, top view — open source board by fadushin

About the Nicerf lora PCB

Nicerf lora is an open source PCB design by fadushin, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 39 × 27.3 mm, with 15 components from 7 distinct parts.

By type, the board carries 9 connectors, 4 capacitors and 2 resistors.

It belongs with the rf & radio and dev boards & breakouts designs in this gallery.

From the project

Kicad5 files for a NiceRF SX127x LoRa modem.

This repository contains KiCad5 files for a small (less than 1" square) 2-sided PCB that can be used to integrate a NiceRF SX127X (or equivalent) LoRa transceiver into your maker projects.

The NiceRF SX127X LoRa transceiver has some desirable properties, such as its small form factor, ability to integrate flexibly with ESP32 projects (unlike some integrated development boards), and it is probably one of the more affordable SX127X boards out there. In addition, the NiceRF team provides great support for their products.

Nicerf lora, from the project README
From the project README

Nicerf lora bill of materials (BOM)

15 components, 7 distinct parts.

QtyPartRefs
4
Conn_01x08_Female
J1, J2, J5, J6
2
Conn_01x02_Female
J3, J7
2
Conn_01x04_Male
J4, J8
1
Conn_01x05_Male
J9
2
100nF
C1, C3
2
10uF
C2, C4
2
10k
R1, R2

Nicerf lora design files

The KiCad project lives in the fadushin/nicerf-lora repository on GitHub; these links point at the commit this page was built from.

Nicerf lora: common questions

How big is the Nicerf lora PCB?

The Nicerf lora measures 39 × 27.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Nicerf lora?

15 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Nicerf lora design files?

From the fadushin/nicerf-lora repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Nicerf lora design in my own project?

Yes, under the terms of its BSD-3-Clause license, which fadushin chose for the repository.
