H7-Beast PCB layout, top view — open source STM32 board by FBIopeningUPP

About the H7-Beast PCB

H7-Beast is an open source STM32 PCB design by FBIopeningUPP, published on GitHub. It is a 8-layer board measuring 34 × 54.9 mm, with 84 components from 40 distinct parts.

Its main chip is the STM32H743VITx, from the STM32 family. Other key parts include the ICM-42688-P, DPS310XTSA1, MIC5219-3.3YM5, TF-123-ARP9H17 and TJA1051TK-3. By type, the board carries 32 capacitors, 22 resistors, 12 connectors, 10 ICs, 3 diodes and 2 LEDs.

It belongs with the robotics & motion designs in this gallery.

From the project

Just a flight controller

H7 Beast is a small open source flight controller that is based of Betaflight, INav, ArduPilot and PX4 firmware. The size of the board with the features is amazing it's just 58x34mm wide and comes with all the features like external spi and canbus and 12 motor output with a single output for ws2812b leds

- MCU: STM32H743VIT6 - Gyroscope: 2x ICM-42688-P with low noise 3.3v Rail - Barometer: DPS310 - Blackbox: Sd Card interface - UARTs: 7x UARTs - i2C: 2x i2C, 1 internal and 1 external - SPI: 4x SPI, 3x internal 1x external - CAN: 1x External Can - Digital VTX Out: 1x - MIC5219 low-noise LDO…

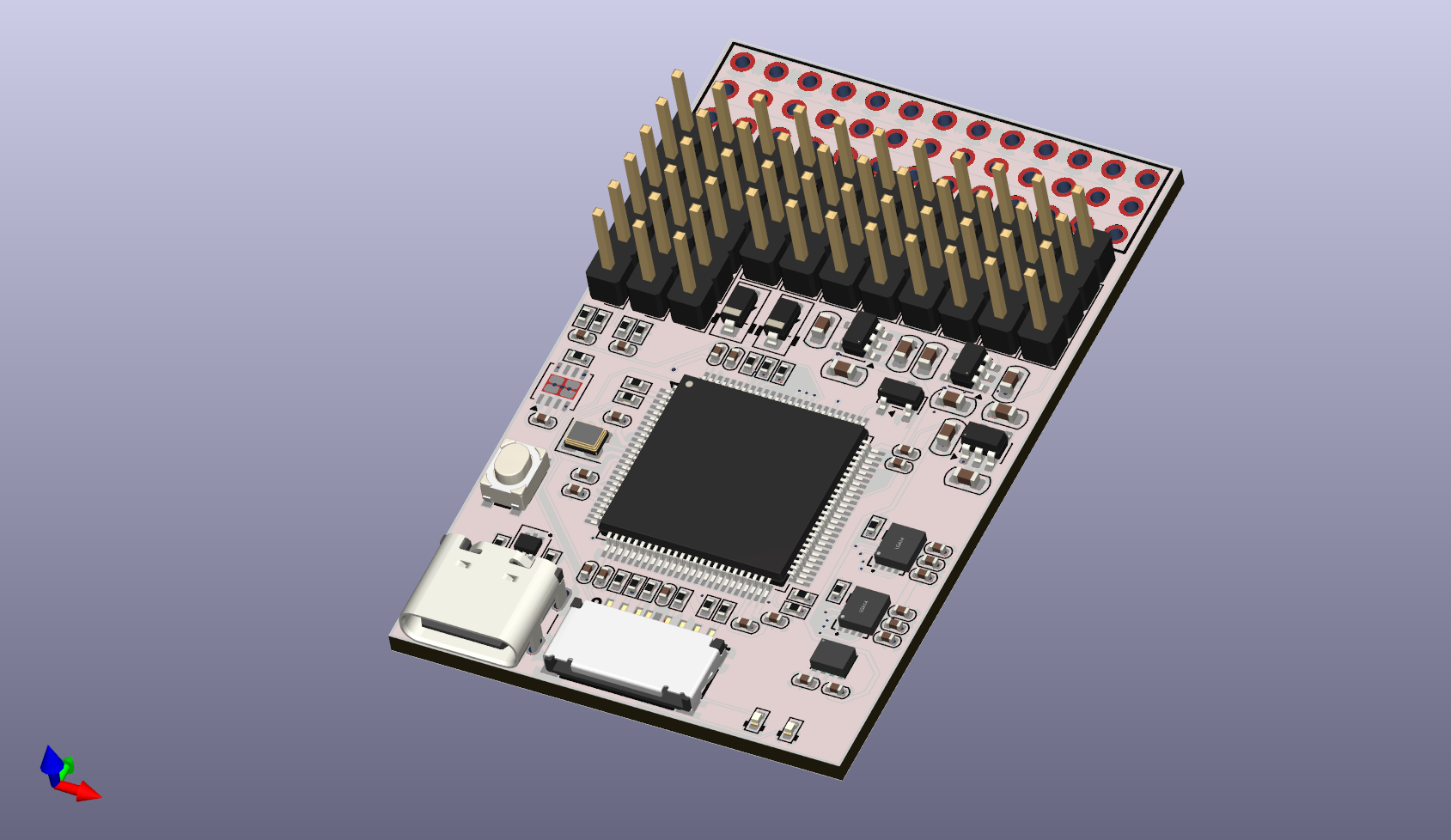

H7-Beast, from the project README
From the project README

Main components on the H7-Beast

STM32H743VITxICM-42688-PDPS310XTSA1MIC5219-3.3YM5TF-123-ARP9H17TJA1051TK-3KH-2.54PH180-3X13P-L11.5

H7-Beast bill of materials (BOM)

84 components, 40 distinct parts.

QtyPartRefs
1
STM32H743VITx
U201
2
ICM-42688-P
U301, U302
1
DPS310XTSA1
U303
3
MIC5219-3.3YM5
U401, U402, U403
1
TF-123-ARP9H17
U501
1
TJA1051TK-3
U502
1
KH-2.54PH180-3X13P-L11.5
kinghelm(金航标)
U503
1
SS8050
Q501
1
8mhz
Y201
1
VTX&UART1
J301
1
USBC
J501
1
UART2
J505
1
USART3
J506
1
UART4
J508
1
USART6
J509
1
UART7
J510
1
UART8
J511
1
SPI3
J512
1
I2C2
J513
1
CAN
J514
Show 20 more
QtyPartRefs
1
EXT SENS
J515
1
SKRPABE010
SW201
2
LED_0402
LED201, LED202
2
B140HW-7
Diodes Incorporated
D402, D403
1
USBLC6-2P6
D501
13
100nF
C201, C202, C203, C204, C205, C207, C210, C307 +5
2
1uF
C206, C502
2
4.7uF
C208, C209
2
10nF
C301, C306
2
0.1uF
C302, C304
2
2.2uF
C303, C305
3
2.2uF
C403, C404, C405
3
470pF
C406, C407, C408
3
100nF
C409, C410, C411
4
4.7k
R201, R202, R203, R204
9
10k
R205, R301, R302, R503, R504, R505, R506, R507 +1
2
100
R206, R207
4
1k
R401, R402, R403, R404
2
5.1k
R501, R502
1
120
R509

H7-Beast design files

The KiCad project lives in the FBIopeningUPP/H7-Beast repository on GitHub; these links point at the commit this page was built from.

H7-Beast: common questions

What microcontroller does the H7-Beast use?

The H7-Beast is built around the STM32H743VITx, from the STM32 family.

How big is the H7-Beast PCB?

The H7-Beast measures 34 × 54.9 mm, has 8 copper layers and is 1.6 mm thick.

How many components are on the H7-Beast?

84 components, from 40 distinct parts. The full bill of materials is listed on this page.

Where can I download the H7-Beast design files?

From the FBIopeningUPP/H7-Beast repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the H7-Beast design in my own project?

The repository has no license, so all rights stay with FBIopeningUPP. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the H7-Beast without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
