About the PicoIndustrial PCB

PicoIndustrial is an open source RP2040/RP2350 PCB design by feecat, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 140 × 90 mm, with 157 components from 35 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. Other key parts include the LM258DR, TPS5430DDAR and LTV-354T. By type, the board carries 60 resistors, 29 diodes, 29 capacitors, 11 ICs, 10 jumpers and 8 relays.

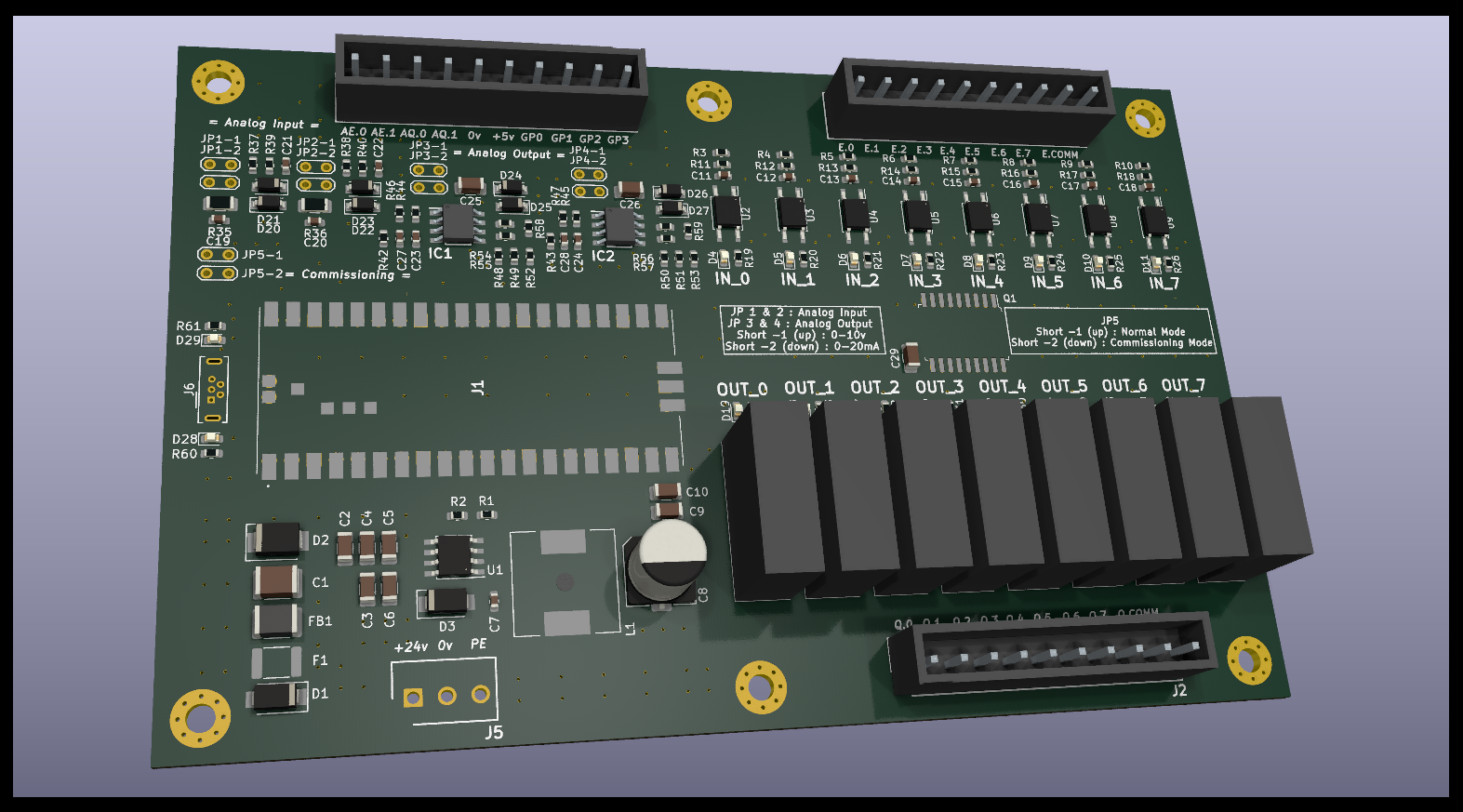

From the project

Industrial Control Module Based on RPI PICO

Main components on the PicoIndustrial

LM258DR TPS5430DDAR LTV-354T

PicoIndustrial bill of materials (BOM)

157 components, 35 distinct parts.

Qty	Part	Footprint	Refs
2	LM258DR LM258D TI	SOIC127P600X175-8N	IC1, IC2
1	TPS5430DDAR TPS5430DDA TI	TI_SO-PowerPAD-8_ThermalVias	U1
8	LTV-354T LITEON	SO-4_4.4x3.6mm_P2.54mm	U2, U3, U4, U5, U6, U7, U8, U9
1	ULN2803ADWR	SOIC-18W_7.5x11.6mm_P1.27mm	Q1
1	Pico PICO Raspberry Pi	PICO_HOLE	J1
3	WJ15EDGVC-3.81-10P KANGNEX	SHDR10W85P0X381_1X10_3898X700X935P	J2, J3, J4
1	WJ15EDGVM-3.81-3P WJ15EDGVC-3.81-3P KANGNEX	SHDR12W85P0X381_1X3_4660X700X935P	J5
1	MICRO 180°JB USB_B_Micro SHOU HAN	USB_Micro-B_Wuerth_614105150721_Vertical	J6
1	mSMD110-33V SEA & LAND	Fuse_1812_4532Metric	F1
10	Jumper	TestPoint_2Pads_Pitch2.54mm_Drill0.8mm	JP1-1, JP1-2, JP2-1, JP2-2, JP3-1, JP3-2, JP4-1, JP4-2 +2
8	HF46F/24-HS1 HF46F_024-HS1T HF	HF46F024HS1T	K1, K2, K3, K4, K5, K6, K7, K8
2	SS54 MOD	D_SMA	D1, D3
1	SMBJ30CA MOD	D_SMB	D2
8	19-217/GHC-YR1S2/3T LED_GREEN EVERLIGHT	LED_0603_1608Metric	D4, D5, D6, D7, D8, D9, D10, D11
9	19-217/BHC-ZL1M2RY/3T LED_BLUE EVERLIGHT	LED_0603_1608Metric	D12, D13, D14, D15, D16, D17, D18, D19 +1
8	1N4148W MDD	D_SOD-123	D20, D21, D22, D23, D24, D25, D26, D27
1	19-213/Y2C-CQ2R2L/3T(CY) LED_YELLOW EVERLIGHT	LED_0603_1608Metric	D28
1	CBW453215U121T FH	L_1812_4532Metric	FB1
1	SLH1207S220MTT 22uh 3A Sunltech	L_12x12mm_H6mm	L1
1	1812B103K202NT 10nf FH	C_1812_4532Metric	C1

Show 15 more

Qty	Part	Footprint	Refs
10	CL31A106KBHNNNE 10uf 50v SAMSUNG	C_1206_3216Metric	C2, C3, C4, C5, C6, C9, C10, C25 +2
1	CL10B103KB8NNNC 10nf 50v SAMSUNG	C_0603_1608Metric	C7
1	VEH221M1VTR-0810 220uf 35v LELON	CP_Elec_8x10	C8
12	CL10B223KB8NNNC 22nf SAMSUNG	C_0603_1608Metric	C11, C12, C13, C14, C15, C16, C17, C18 +4
4	CL10B221KB8NNNC 220pf SAMSUNG	C_0603_1608Metric	C19, C20, C21, C22
13	0603WAF1002T5E 10k UNIOHM	R_0603_1608Metric	R1, R3, R4, R5, R6, R7, R8, R9 +5
1	0603WAF3241T5E 3.24k UNIOHM	R_0603_1608Metric	R2
8	0603WAF1004T5E 1m UNIOHM	R_0603_1608Metric	R11, R12, R13, R14, R15, R16, R17, R18
20	0603WAF2201T5E 2.2k UNIOHM	R_0603_1608Metric	R19, R20, R21, R22, R23, R24, R25, R26 +12
2	1206W4F5100T5E 510 UNIOHM	R_1206_3216Metric	R35, R36
4	0603WAF4701T5E 4.7k UNIOHM	R_0603_1608Metric	R39, R40, R46, R47
4	0603WAF1003T5E 100k UNIOHM	R_0603_1608Metric	R48, R50, R54, R56
4	0603WAF2002T5E 20k UNIOHM	R_0603_1608Metric	R49, R51, R55, R57
2	0603WAF1000T5E 100 UNIOHM	R_0603_1608Metric	R52, R53
2	0603WAF470JT5E 47 UNIOHM	R_0603_1608Metric	R58, R59

PicoIndustrial design files

The KiCad project lives in the feecat/PicoIndustrial repository on GitHub; these links point at the commit this page was built from.

LayoutPicoIndustrial.kicad_pcb
SchematicPicoIndustrial.kicad_sch

PicoIndustrial: common questions

What microcontroller does the PicoIndustrial use?

The PicoIndustrial is built around the Pico, from the RP2040/RP2350 family.

How big is the PicoIndustrial PCB?

The PicoIndustrial measures 140 × 90 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PicoIndustrial?

157 components, from 35 distinct parts. The full bill of materials is listed on this page.

Where can I download the PicoIndustrial design files?

From the feecat/PicoIndustrial repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PicoIndustrial design in my own project?

Yes, under the terms of its GPL-3.0 license, which feecat chose for the repository.

Can I test firmware for the PicoIndustrial without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
