DIY logging voltage/current meter

This battery-powered logging volt/ampmeter was made with the intention to easily get .CSV files filled with voltage/current/power measurements on a SD-card to plot and use this data further. It is supposed to have the same functionality as much more expensive dataloggers, with the added benefit of the ability to change the firmware to add more functions.

- DIY Logging Volt/Ampmeter - 0 - Table of Contents - 1 - Construction - 2 - Usage - 3 - Bash script to generate plots (logplot) - 4 - Additional hardware changes (carrier board v1.0) - 5 - Future code-additions

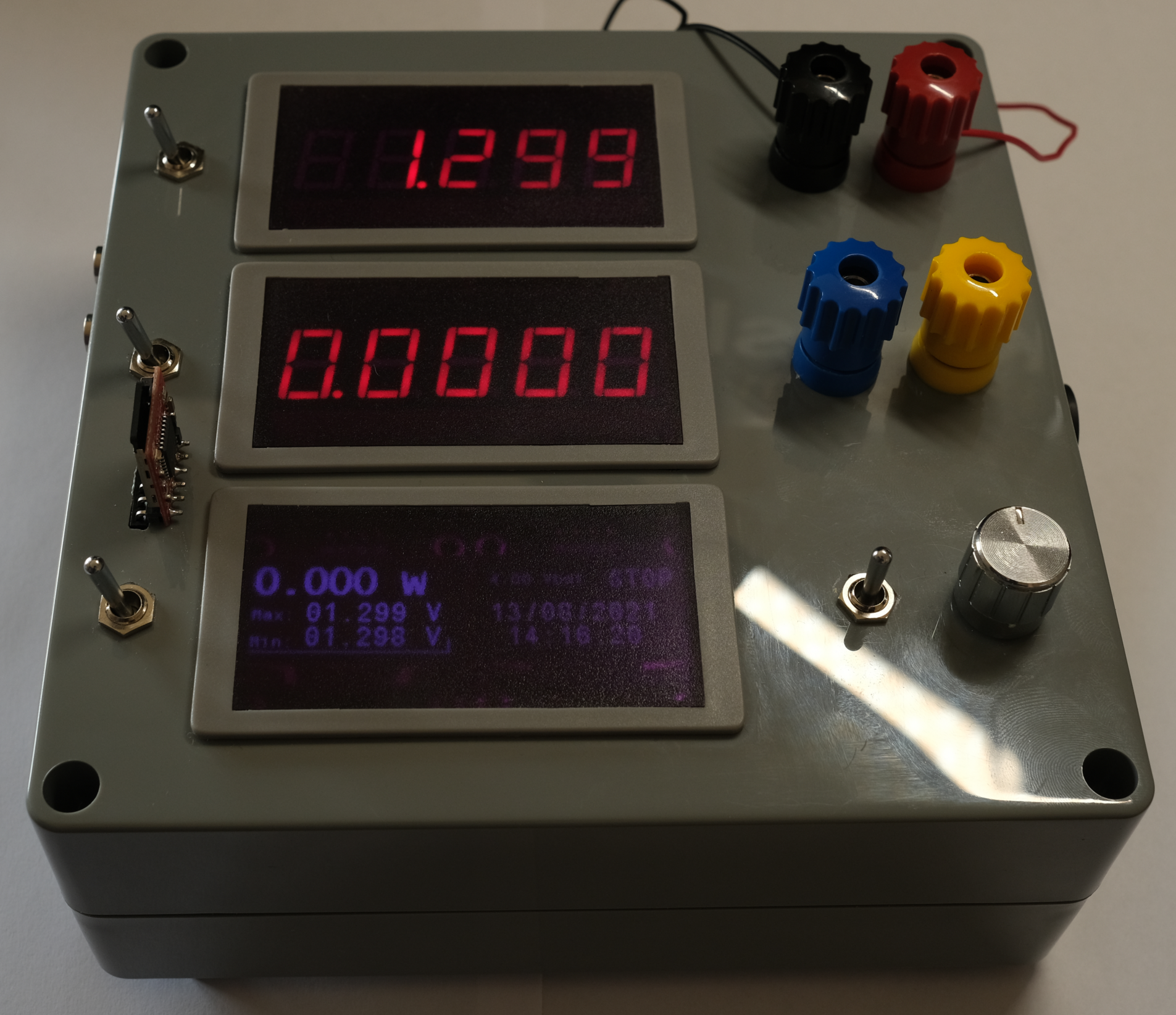

High accuracy logging volt/amp meter, from the project README
From the project README

Main components on the High accuracy logging volt/amp meter

1.3

High accuracy logging volt/amp meter bill of materials (BOM)

36 components, 17 distinct parts.

QtyPartRefs
1
1.3
U2
3
2N7002-7-F
Q1, Q2, Q4
1
5Vin-Voltage
J1
1
SWO
J2
1
BY56W Voltage
J4
1
USB
J5
1
~RESET
J6
1
5Vin-Current
J8
1
Encoder
J9
1
Relay
J12
1
Switch
J13
1
UART Out
J14
2
100 nF
C1, C2
11
10 kΩ
R1, R2, R5, R6, R11, R14, R17, R20 +3
3
1 kΩ
R3, R9, R18
2
2 kΩ
R4, R10
4
100 Ω
R19, R24, R25, R26

High accuracy logging volt/amp meter design files

The KiCad project lives in the Fescron/diy-logging-volt-ampmeter repository on GitHub; these links point at the commit this page was built from.

High accuracy logging volt/amp meter: common questions

How big is the High accuracy logging volt/amp meter PCB?

The High accuracy logging volt/amp meter measures 68.6 × 36.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the High accuracy logging volt/amp meter?

36 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the High accuracy logging volt/amp meter design files?

From the Fescron/diy-logging-volt-ampmeter repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the High accuracy logging volt/amp meter design in my own project?

The repository has no license, so all rights stay with Fescron. Use it as a reference, and ask the author before reusing the design.
