Lightning Detector

flooklab·Lightning_Detector·Hardware/KiCad/lightning_detector.kicad_pcb

Lightning Detector PCB layout, top view — open source AVR/Arduino board by flooklab

About the Lightning Detector PCB

Lightning Detector is an open source AVR/Arduino PCB design by flooklab, published on GitHub under the Custom license license. It is a 2-layer board measuring 73.7 × 78.7 mm, with 37 components from 14 distinct parts.

Its main chip is the Arduino_Nano, from the AVR/Arduino family. By type, the board carries 14 diodes, 7 switches, 4 capacitors, 4 resistors, 3 connectors and 2 battery holders.

It belongs with the iot & wireless, sensors and wearables designs in this gallery.

From the project

An experimental open hardware project for early notification about approaching thunderstorm activity

Lightning Detector is an experimental open hardware project for early notification about approaching thunderstorm activity. It is a battery-powered (1x or 2x CR2032) device with low power consumption in mind and is based on an Arduino Nano 33 BLE as microcontroller unit (MCU) and the AS3935 "Franklin Lightning Sensor" chip by AMS/ScioSense as main detector element.

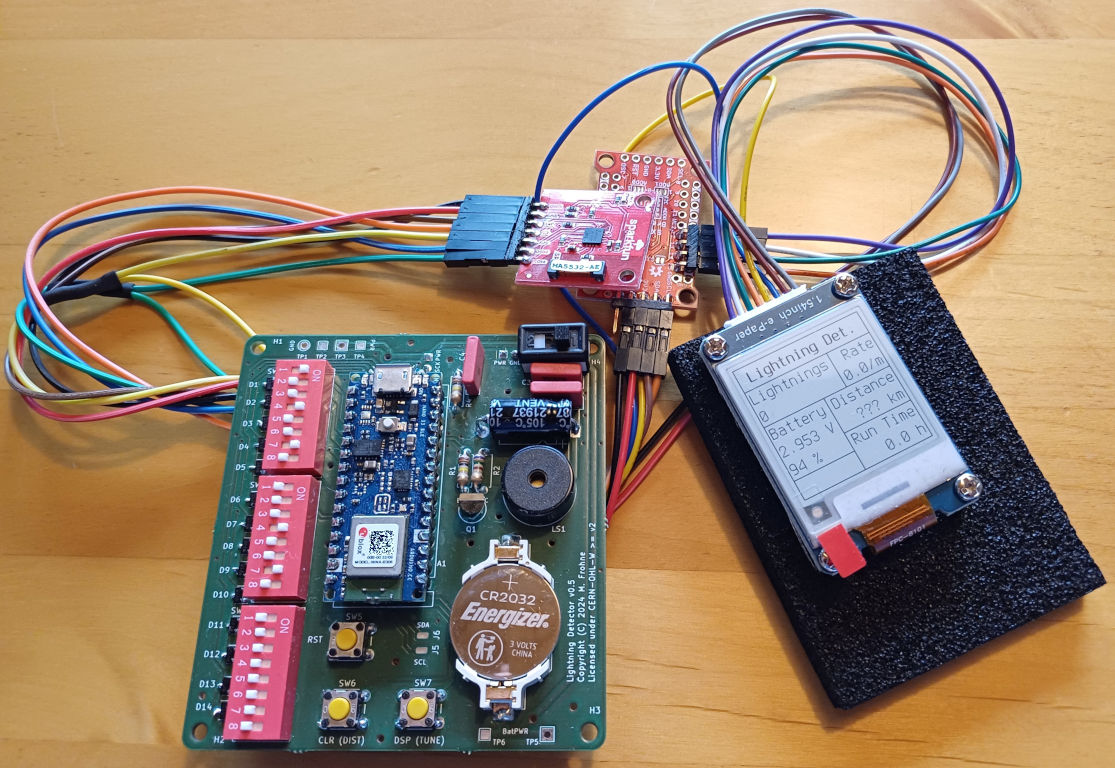

Lightning Detector, from the project README
From the project README

Main components on the Lightning Detector

Arduino_Nano

Lightning Detector bill of materials (BOM)

37 components, 14 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Arduino_Nano
A1
1
TO-92
Q1
1
PinHeader_1x07_P2.54mm_Horizontal
J1
2
PinHeader_1x02_P2.54mm_Horizontal
J2, J7
2
BatteryHolder_Keystone_1058_1x2032
BT1, BT2
1
Indicator_PUI_AI-1440-TWT-24V-2-R
LS1
1
PinHeader_1x03_P2.54mm_Vertical
SW1
3
SW_DIP_SPSTx08_Slide_9.78x22.5mm_W7.62mm_P2.54mm
SW2, SW3, SW4
3
SW_PUSH_6mm
SW5, SW6, SW7
14
SOT-23
D1, D2, D3, D4, D5, D6, D7, D8 +6
1
220U
CP_Axial_L11.0mm_D5.0mm_P18.00mm_Horizontal
C1
3
100N
C_Rect_L10.0mm_W2.5mm_P7.50mm_MKS4
C2, C3, C4
3
100K
R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal
R1, R3, R4
1
750
R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal
R2

Lightning Detector design files

The KiCad project lives in the flooklab/Lightning_Detector repository on GitHub; these links point at the commit this page was built from.

Lightning Detector: common questions

What microcontroller does the Lightning Detector use?

The Lightning Detector is built around the Arduino_Nano, from the AVR/Arduino family.

How big is the Lightning Detector PCB?

The Lightning Detector measures 73.7 × 78.7 mm, has 2 copper layers and is 1.686 mm thick.

How many components are on the Lightning Detector?

37 components, from 14 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Lightning Detector design files?

From the flooklab/Lightning_Detector repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Lightning Detector design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Lightning Detector without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
