Picon one hw

fm4dd·picon-one-hw·kicad/picon-one v1.0a.kicad_pcb

Picon one hw PCB layout, top view — open source AVR/Arduino board by fm4dd
Simulate this board

About the Picon one hw PCB

Picon one hw is an open source AVR/Arduino PCB design by fm4dd, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 117.8 × 168 mm, with 59 components from 31 distinct parts.

Its main chip is the ARDUINO_MKRGPS_MOD, from the AVR/Arduino family. Other key parts include the TI_DCR021205, TM1640, DS3231M and SC16IS752_I2C2UARTx2_IC. By type, the board carries 23 resistors, 10 capacitors, 4 ICs, 4 modules, 4 switches and 4 diodes.

From the project

KiCad PCB, gerber, and CAD files for the PiCon-One controller.

PiCon-One is a multi-function controller for automation and industrial use cases. At its heart is the smallest member of the Raspberry family, the Raspberry Pi Zero W. Instead of adding a "hat" on top of the Raspberry, I reversed the roles: The Pi becomes the "hat" for the controller mainboard, which has been fitted to a Takachi enclosure.

The design aims to add flexible power configuration, real-time clock, GPS positioning, display and communication interfaces, enabling rapid prototyping under the widespread Raspberry Pi ecosystem.

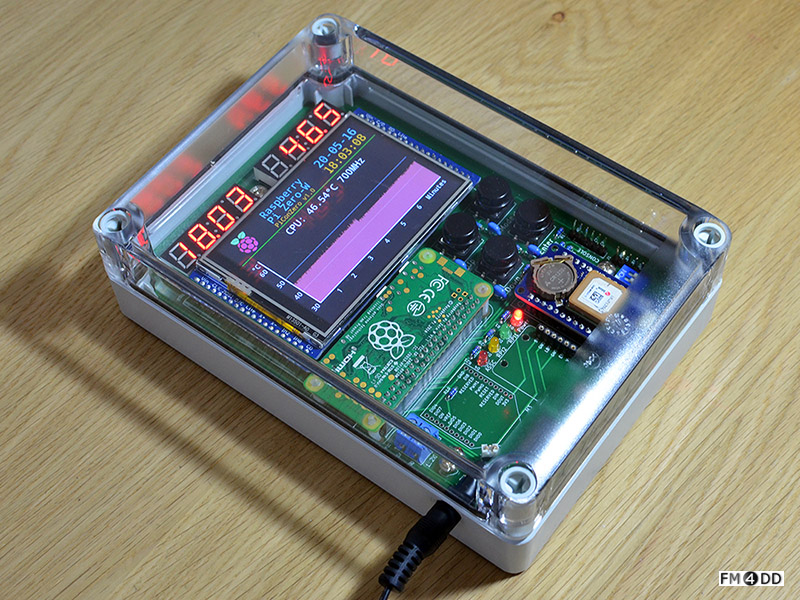

Picon one hw, from the project README
From the project README

Main components on the Picon one hw

TI_DCR021205TM1640DS3231MSC16IS752_I2C2UARTx2_IC

Picon one hw bill of materials (BOM)

59 components, 31 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TI_DCR021205
Texas Instruments
U1
1
TM1640
Titan Microelectronics
U2
1
DS3231M
Maxim Integrated
U3
1
SC16IS752_I2C2UARTx2_IC
NXP
U4
1
ADA-PWRBOOST1000C
Adafruit Industries LLC
M1
1
ARDUINO_MKRGPS_MOD
Arduino
M2
1
XB24CZ7WIT-004
Digi International
M3
1
ADA-35-TFT-2050
Adafruit Industries LLC
M4
1
14.7456MHz
IQD Frequency Products
Y1
2
Conn_01x06
N/A
J1, J2
1
2.1mm_PowerJack
12V1
1
12V Terminal
12V2
1
Battery_Cell
Linx Technologies Inc.
BT1
1
SW_DIP_x02
CUI Devices
DIP1
1
PWBOOST Bypass
JP1
2
7SEG_OSL40391
SD1, SD2
4
12mm PB
TE Connectivity
SW1, SW2, SW3, SW4
4
LED
Wurth Electronics Inc.
D1, D2, D3, D4
1
2.2uF
TDK
C1
5
1uF
KEMET
C2, C4, C5, C6, C7
Show 11 more
QtyPartRefs
1
0.1uF
AVX
C3
1
22pF
Samsung
C8
1
33pF
Samsung
C9
1
100nF
Samsung
C10
1
1K
Stackpole Electronics Inc
R1
11
10K
Stackpole Electronics Inc
R2, R3, R4, R6, R8, R10, R12, R13 +3
4
2.2K
Stackpole Electronics Inc
R5, R7, R9, R11
1
10K
Uniroyal Elec
R16
2
1K
Uniroyal Elec
R17, R18
3
330
Stackpole Electronics Inc
R19, R20, R21
1
100
Stackpole Electronics Inc
R23

Picon one hw design files

The KiCad project lives in the fm4dd/picon-one-hw repository on GitHub; these links point at the commit this page was built from.

Picon one hw: common questions

What microcontroller does the Picon one hw use?

The Picon one hw is built around the ARDUINO_MKRGPS_MOD, from the AVR/Arduino family.

How big is the Picon one hw PCB?

The Picon one hw measures 117.8 × 168 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Picon one hw?

59 components, from 31 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Picon one hw design files?

From the fm4dd/picon-one-hw repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Picon one hw design in my own project?

Yes, under the terms of its CERN-OHL-1.2 license, which fm4dd chose for the repository.

Can I test firmware for the Picon one hw without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
