Pmod2rpi
About the Pmod2rpi PCB
Pmod2rpi is an open source PCB design by fm4dd, published on GitHub under the CERN-OHL-1.2 license. It is a 2-layer board measuring 65 × 56 mm, with 36 components from 18 distinct parts.
Other key parts include the CAT24C32WI-GT3, SeeeduinoXIAO and PI5A100QEX. By type, the board carries 9 test points, 6 resistors, 3 ICs, 3 switches, 3 inductors and 2 capacitors.
From the project
PMOD adapter interface board for the Raspberry Pi GPIO, adding 4 PMOD connectors to the system.
PMOD2RPI is a PMOD-compatible Interface Board for the Raspberry Pi B-type GPIO connector. It provides a total of four PMOD connectors to run PMOD-compatible modules on the Raspberry Pi. This board is compatible to PMOD interface standard v1.3.1 by Digilent Inc. The PMOD (peripheral module interface) standard enables simple plug-in connectivity between FPGA or microcontroller development boards, and a range of input/output modules.

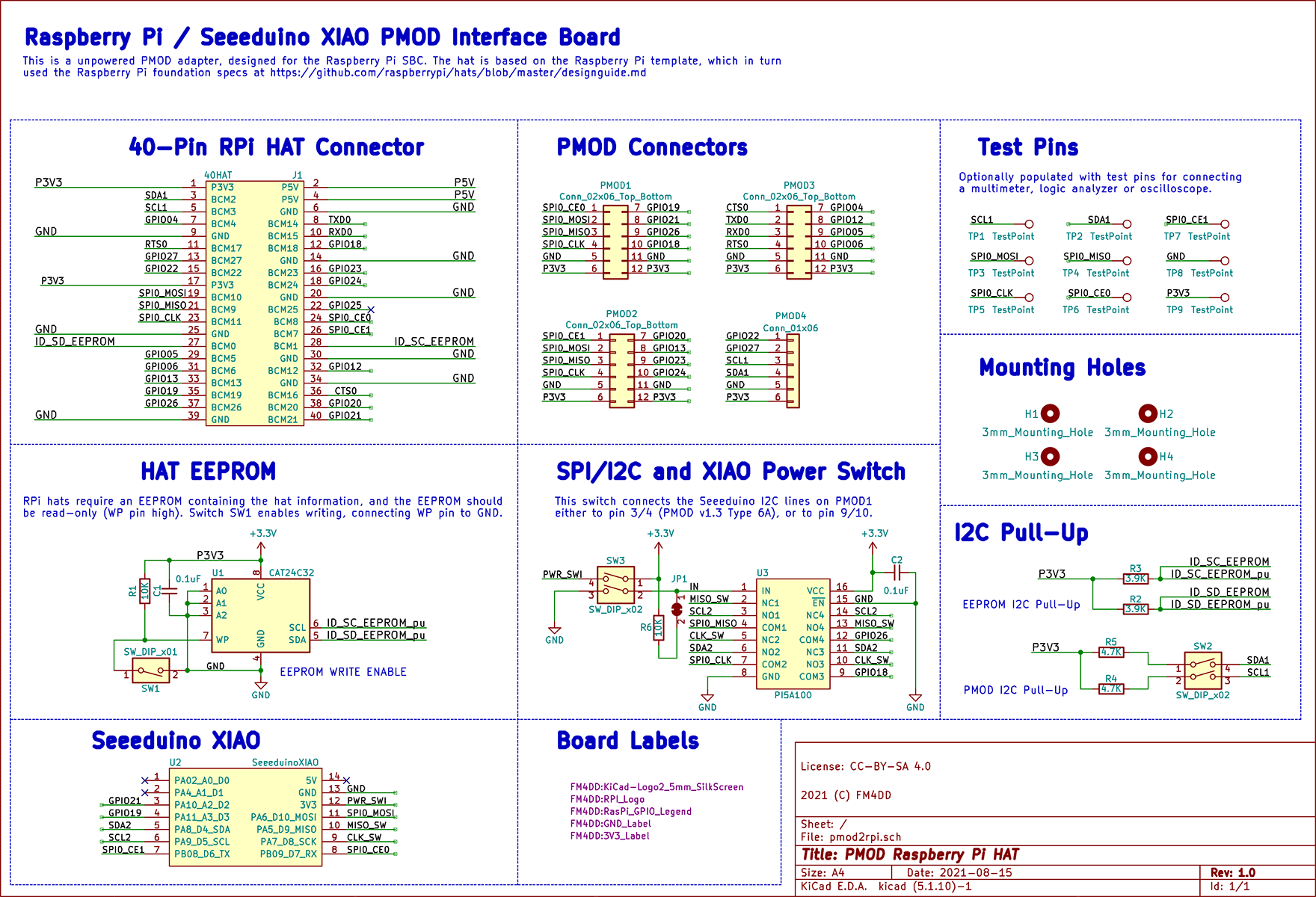

Main components on the Pmod2rpi
Pmod2rpi bill of materials (BOM)
36 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CAT24C32WI-GT3 CAT24C32 | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | SeeeduinoXIAO | SeeeduinoXIAO-14P-2.54-21X17.8MM | U2 |
| 1 | PI5A100QEX PI5A100 | QSOP-16_3.9x4.9mm_P0.635mm | U3 |
| 1 | 40HAT | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 4 | 3mm_Mounting_Hole | NPTH_3mm_ID | H1, H2, H3, H4 |
| 3 | Conn_02x06_Top_Bottom | PMODPinSocket_2x06_P2.54mm_Horizontal | PMOD1, PMOD2, PMOD3 |
| 1 | Conn_01x06 | PMODPinSocket_1x06_P2.54mm_Horizontal | PMOD4 |
| 1 | JLCPCB_serial_location | JLCPCB_Order_Number_Placeholder | SN1 |
| 1 | DSIC01LS-P SW_DIP_x01 | SW_DIP_SPSTx01_XKB_DSIC01LS | SW1 |
| 2 | DSIC02LS-P SW_DIP_x02 | SW_DIP_SPSTx02_XKB_DSIC02LS | SW2, SW3 |
| 9 | TestPoint | TestPoint_Keystone_5000-5004_Miniature | TP1, TP2, TP3, TP4, TP5, TP6, TP7, TP8 +1 |
| 1 | Pinout_RPI_GPIO | RasPi_GPIO_Legend | L3 |
| 1 | GND_Label | GND_Label | L4 |
| 1 | 3V3_Label | 3V3_Label | L5 |
| 2 | C0402C104K4RECAUTO 0.1uF | C_0402_1005Metric | C1, C2 |
| 2 | 0603WAF1002T5E 10K | R_0603_1608Metric | R1, R6 |
| 2 | 0603WAF3901T5E 3.9K | R_0603_1608Metric | R2, R3 |
| 2 | 0603WAF4701T5E 4.7K | R_0603_1608Metric | R4, R5 |
Pmod2rpi design files
The KiCad project lives in the fm4dd/pmod2rpi repository on GitHub; these links point at the commit this page was built from.
Pmod2rpi: common questions
How big is the Pmod2rpi PCB?
The Pmod2rpi measures 65 × 56 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pmod2rpi?
36 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Pmod2rpi design files?
From the fm4dd/pmod2rpi repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Pmod2rpi design in my own project?
Yes, under the terms of its CERN-OHL-1.2 license, which fm4dd chose for the repository.
