Universal-Teensy-4.0-Eurorack-Shield layout, top view — open source NXP board by Fora888

About the Universal-Teensy-4.0-Eurorack-Shield

Universal-Teensy-4.0-Eurorack-Shield is an open source NXP PCB design by Fora888, published on GitHub. It is a 2-layer board measuring 17.8 × 101.6 mm, with 41 components from 21 distinct parts.

Its main chip is the Teensy4.0_Pins_Right, from the NXP family. Other key parts include the PCM1754DBQ, PCM1808PW and LM1117-5.0. By type, the board carries 16 capacitors, 12 resistors, 5 connectors, 4 diodes and 3 ICs.

It belongs with the dev boards & breakouts and audio designs in this gallery.

From the project

Teensy 4.0 shield with ADC, DAC and breakouts for perfboard

The PCB can be ordered at a PCB manufacturer of your choice. I ordered mine at Aisler.

The headers on the teensy need to be on the same side as the USB port, so that the USB port faces towards the PCB when mounted. This is done to allow utilisation of the backside pins of the Teensy. There are also 5V and GND markings on the PCB to ensure correct orientation.

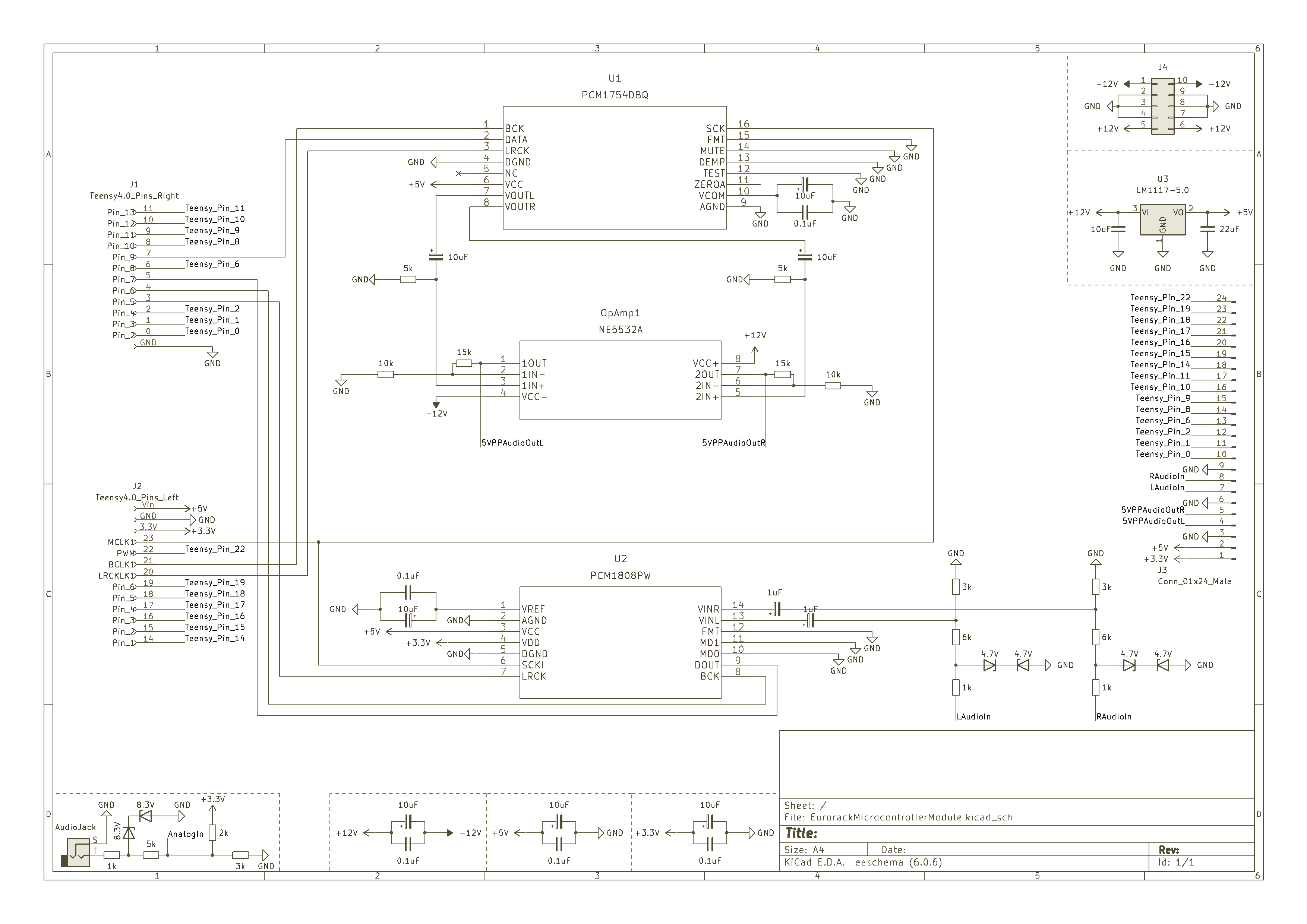

Universal-Teensy-4.0-Eurorack-Shield, from the project README
From the project README

Main components on the Universal-Teensy-4.0-Eurorack-Shield

PCM1754DBQPCM1808PWLM1117-5.0

Universal-Teensy-4.0-Eurorack-Shield bill of materials (BOM)

41 components, 21 distinct parts.

QtyPartRefs
1
PCM1754DBQ
U1
1
PCM1808PW
U2
1
LM1117-5.0
U3
1
Teensy4.0_Pins_Right
J1
1
Teensy4.0_Pins_Left
J2
1
Conn_01x24_Male
J3
1
Conn_02x05_Counter_Clockwise
J4
1
Teensy4.0_Pins_Top
J5
1
NE5532A
OpAmp1
4
4.7V
D1, D2, D3, D4
7
10uF
C1, C2, C4, C5, C7, C11, C15
5
0.1uF
C3, C6, C10, C12, C16
2
1uF
C8, C9
1
10uF
C13
1
22uF
C14
2
10k
R1, R3
2
15k
R2, R4
2
5k
R5, R6
2
3k
R7, R10
2
6k
R8, R11
Show 1 more
QtyPartRefs
2
1k
R9, R12

Universal-Teensy-4.0-Eurorack-Shield design files

The KiCad project lives in the Fora888/Universal-Teensy-4.0-Eurorack-Shield repository on GitHub; these links point at the commit this page was built from.

Universal-Teensy-4.0-Eurorack-Shield: common questions

What microcontroller does the Universal-Teensy-4.0-Eurorack-Shield use?

The Universal-Teensy-4.0-Eurorack-Shield is built around the Teensy4.0_Pins_Right, from the NXP family.

How big is the Universal-Teensy-4.0-Eurorack-Shield?

The Universal-Teensy-4.0-Eurorack-Shield measures 17.8 × 101.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Universal-Teensy-4.0-Eurorack-Shield?

41 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the Universal-Teensy-4.0-Eurorack-Shield design files?

From the Fora888/Universal-Teensy-4.0-Eurorack-Shield repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Universal-Teensy-4.0-Eurorack-Shield design in my own project?

The repository has no license, so all rights stay with Fora888. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Universal-Teensy-4.0-Eurorack-Shield without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
