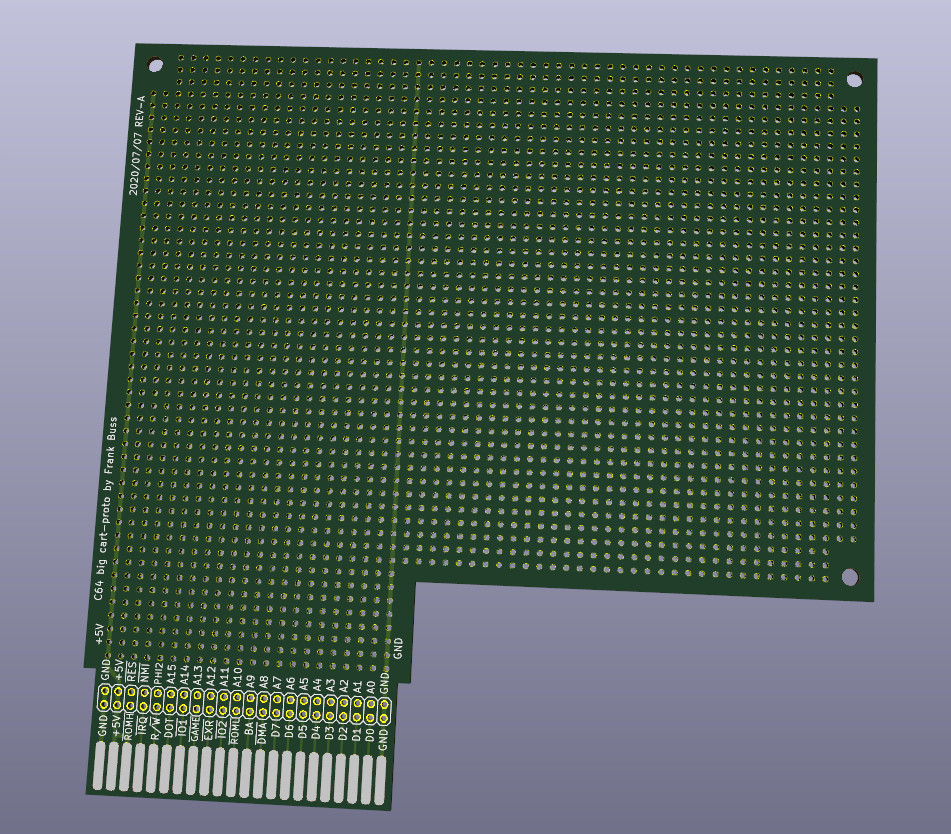

C64-cart proto
About the C64-cart proto PCB
C64-cart proto is an open source PCB design by FrankBuss, published on GitHub. It is a board measuring 148.2 × 148.2 mm, with 2 components from 2 distinct parts.
By type, the board carries 1 connector and 1 jumper.
It belongs with the retro computing designs in this gallery.
From the project
See here for the layout in PDF format. The project was done with KiCad, imported from an old Eagle project. All KiCad files are available in this repository. The Gerber files are here.
C64-cart proto bill of materials (BOM)
2 components, 2 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | EXPANSION-PORT | EXPANSION-PORT | CON1 |
| 1 | PINHD-2X22 | 2X22 | JP1 |
C64-cart proto design files
The KiCad project lives in the FrankBuss/c64-cart-proto repository on GitHub; these links point at the commit this page was built from.
- Layoutcart-proto.kicad_pcb
C64-cart proto: common questions
How big is the C64-cart proto PCB?
The C64-cart proto measures 148.2 × 148.2 mm and is 1.6 mm thick.
How many components are on the C64-cart proto?
2 components, from 2 distinct parts. The full bill of materials is listed on this page.
Where can I download the C64-cart proto design files?
From the FrankBuss/c64-cart-proto repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the C64-cart proto design in my own project?
The repository has no license, so all rights stay with FrankBuss. Use it as a reference, and ask the author before reusing the design.
