Jo Rabbit

frankyhub·KiCad-Loetuebung-02·Jo_Rabbit/kicad/Jo_Rabbit.kicad_pcb

Jo Rabbit PCB layout, top view — open source board by frankyhub

About the Jo Rabbit PCB

Jo Rabbit is an open source PCB design by frankyhub, published on GitHub under the MIT license. It is a 2-layer board measuring 74.9 × 101.8 mm, with 14 components from 12 distinct parts.

Other key parts include the BAT_HLD_SMD. By type, the board carries 5 resistors, 3 diodes, 2 transistors, 1 IC and 1 switch.

From the project

NE555 Platinen, zwei LEDs

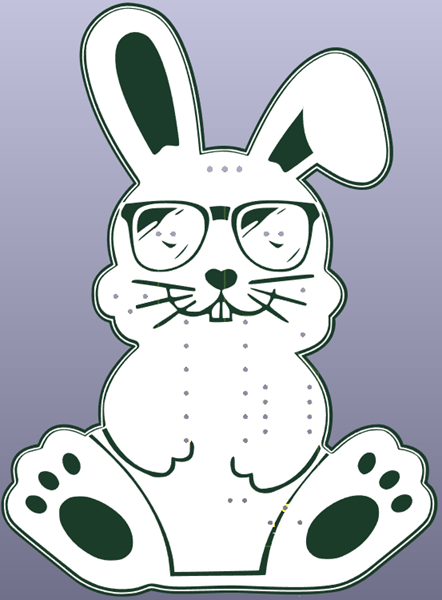

Jo Rabbit, from the project README
From the project README

Main components on the Jo Rabbit

BAT_HLD_SMD

Jo Rabbit bill of materials (BOM)

14 components, 12 distinct parts.

QtyPartRefs
1
BAT_HLD_SMD
U2
2
Q_NPN_EBC
Q1, Q2
1
47uF
47uF
1
NE555P
NE555
1
Micro_Schalter
S1
2
LED
D1, D2
1
1N4148
D3
1
12K
R1off1
1
390k
R4
1
4k7
R5
1
10R
R6
1
16K
R7

Jo Rabbit design files

The KiCad project lives in the frankyhub/KiCad-Loetuebung-02 repository on GitHub; these links point at the commit this page was built from.

Jo Rabbit: common questions

How big is the Jo Rabbit PCB?

The Jo Rabbit measures 74.9 × 101.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Jo Rabbit?

14 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Jo Rabbit design files?

From the frankyhub/KiCad-Loetuebung-02 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Jo Rabbit design in my own project?

Yes, under the terms of its MIT license, which frankyhub chose for the repository.
