RobiV4

frankyhub·KiCad-Loetuebung-02·Robi_I/kicad/RobiV4.kicad_pcb

RobiV4 PCB layout, top view — open source board by frankyhub

About the RobiV4 PCB

RobiV4 is an open source PCB design by frankyhub, published on GitHub under the MIT license. It is a 2-layer board measuring 67.7 × 95.3 mm, with 17 components from 14 distinct parts.

Other key parts include the NE555P and BAT_HLD_SMD. By type, the board carries 6 resistors, 4 transformers, 3 diodes, 2 ICs, 1 switch and 1 capacitor.

From the project

NE555 Platinen, zwei LEDs

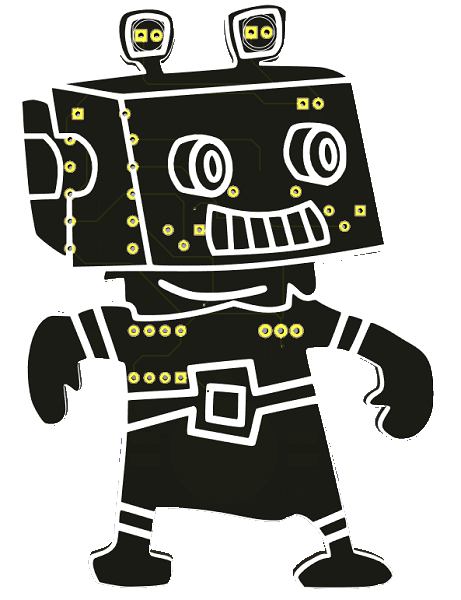

RobiV4, from the project README
From the project README

Main components on the RobiV4

NE555PBAT_HLD_SMD

RobiV4 bill of materials (BOM)

17 components, 14 distinct parts.

QtyPartRefs
1
NE555P
U1
1
BAT_HLD_SMD
U2
1
Micro_Schalter
S1
2
Q_NPN_EBC
T1, T2
2
LP_rund
T1-B, T2-B
2
LED
D1, D2
1
1N4148
D3
1
47uF
C1
1
12K
R1off1
1
16K
R1on1
1
560k
R3
1
390k
R4
1
4k7
R5
1
10R
R6

RobiV4 design files

The KiCad project lives in the frankyhub/KiCad-Loetuebung-02 repository on GitHub; these links point at the commit this page was built from.

RobiV4: common questions

How big is the RobiV4 PCB?

The RobiV4 measures 67.7 × 95.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RobiV4?

17 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the RobiV4 design files?

From the frankyhub/KiCad-Loetuebung-02 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the RobiV4 design in my own project?

Yes, under the terms of its MIT license, which frankyhub chose for the repository.
