Tiger PCB layout, top view — open source board by frankyhub

About the Tiger PCB

Tiger is an open source PCB design by frankyhub, published on GitHub under the MIT license. It is a 2-layer board measuring 87.2 × 99.9 mm, with 15 components from 13 distinct parts.

Other key parts include the NE555P and BAT_HLD_SMD. By type, the board carries 6 resistors, 3 diodes, 2 ICs, 2 transistors, 1 switch and 1 capacitor.

From the project

NE555 Platinen, zwei LEDs

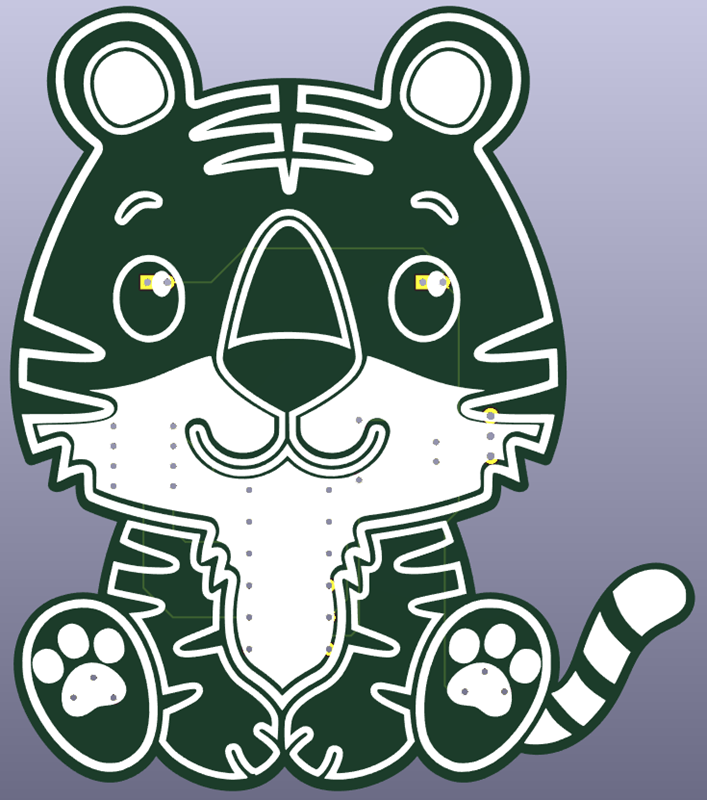

Tiger, from the project README
From the project README

Main components on the Tiger

NE555PBAT_HLD_SMD

Tiger bill of materials (BOM)

15 components, 13 distinct parts.

QtyPartRefs
1
NE555P
U1
1
BAT_HLD_SMD
U2
2
Q_NPN_EBC
Q1, Q2
1
Micro_Schalter
S1
2
LED
D1, D2
1
1N4148
D3
1
47uF
C1
1
560k
R1
1
390k
R2
1
4k7
R3
1
10R
R4
1
16K
R5
1
12K
R7

Tiger design files

The KiCad project lives in the frankyhub/KiCad-Loetuebung-02 repository on GitHub; these links point at the commit this page was built from.

Tiger: common questions

How big is the Tiger PCB?

The Tiger measures 87.2 × 99.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tiger?

15 components, from 13 distinct parts. The full bill of materials is listed on this page.

Where can I download the Tiger design files?

From the frankyhub/KiCad-Loetuebung-02 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Tiger design in my own project?

Yes, under the terms of its MIT license, which frankyhub chose for the repository.
