Easy pdk programmer hardware

free-pdk·easy-pdk-programmer-hardware·adapter-pcbs/kicad-source/programming-adapter.kicad_pcb

Easy pdk programmer hardware PCB layout, top view — open source board by free-pdk
Simulate this board

About the Easy pdk programmer hardware PCB

Easy pdk programmer hardware is an open source PCB design by free-pdk, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 26.7 × 21.6 mm, with 28 components from 1 distinct parts.

It belongs with the usb & debug tools designs in this gallery.

From the project

Easy PDK programmer for PADAUK microcontroller. EDA, schematic, gerber, bom, housing stl, firmware

This directory contains several adapter pcbs for programming Padauk ICs that don't have a pinout directly compatible with the easy-pdk-programmer hardware.

Since most programming sockets available on the market use a pin header spacing of 0.3" like the programmer itself, one pcb isn't enough for an adapter. So all adapters are built from 2 pcbs:

- a bottom pcb, which does the actual routing of the programmer pins to the pins needed for the Padauk microcontroller - a top pcb, which routes the pins through strait and allows to provide socket headers in the necessary spacing for the actual…

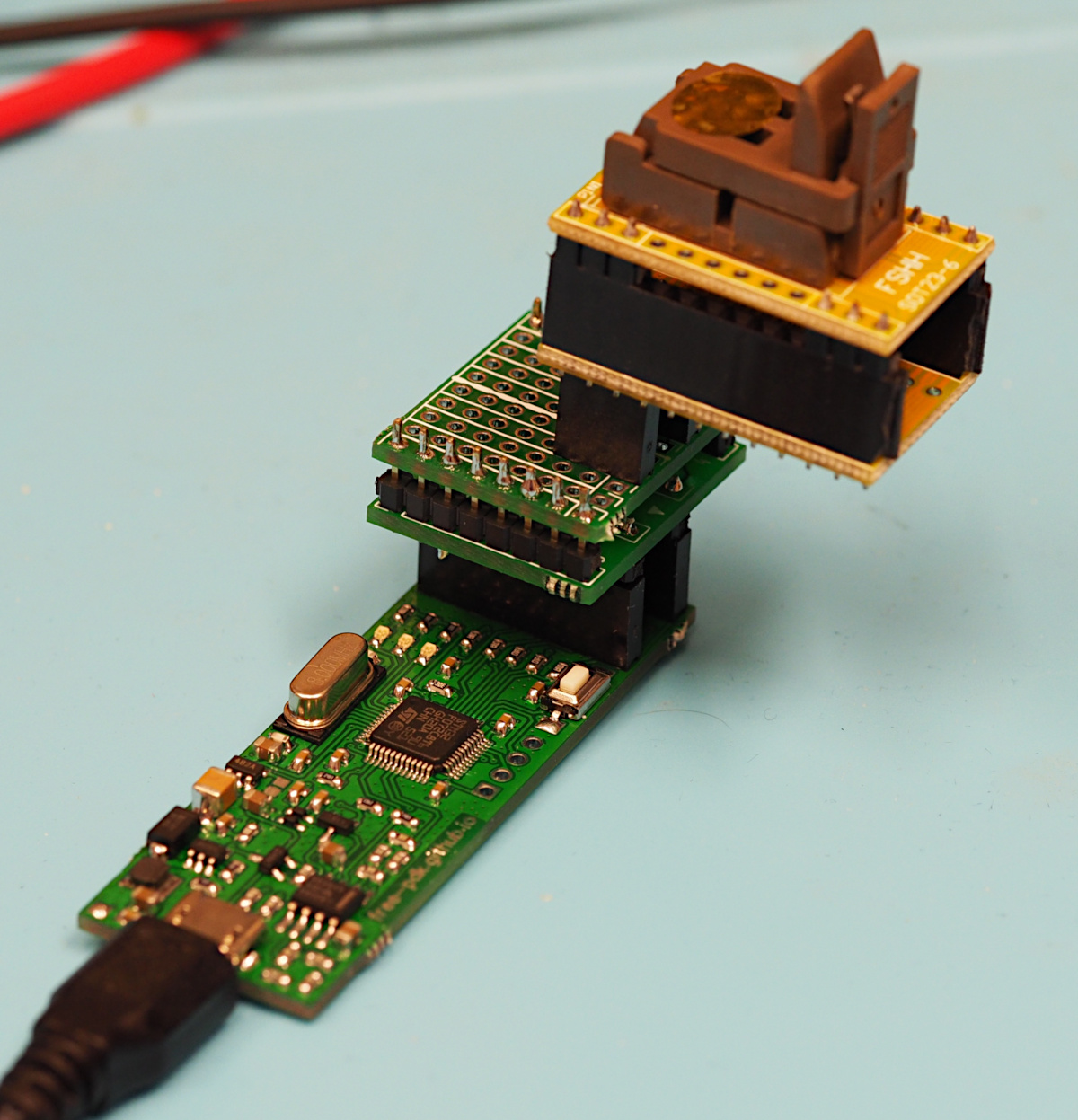

Easy pdk programmer hardware, from the project README
From the project README

Easy pdk programmer hardware bill of materials (BOM)

28 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
28
Conn_01x08
J1, J2, J3, J4, J5, J6, J7, J8 +20

Easy pdk programmer hardware design files

The KiCad project lives in the free-pdk/easy-pdk-programmer-hardware repository on GitHub; these links point at the commit this page was built from.

Easy pdk programmer hardware: common questions

How big is the Easy pdk programmer hardware PCB?

The Easy pdk programmer hardware measures 26.7 × 21.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Easy pdk programmer hardware?

28 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Easy pdk programmer hardware design files?

From the free-pdk/easy-pdk-programmer-hardware repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Easy pdk programmer hardware design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which free-pdk chose for the repository.
