FSC-BT1038B-Barebones-Breakout layout, top view — open source board by fsanzeni

About the FSC-BT1038B-Barebones-Breakout

FSC-BT1038B-Barebones-Breakout is an open source PCB design by fsanzeni, published on GitHub. It is a 4-layer board measuring 59.9 × 45.2 mm, with 29 components from 26 distinct parts.

Other key parts include the AMS1117-3.3. By type, the board carries 9 connectors, 6 capacitors, 6 resistors, 3 switches, 3 diodes and 2 ICs.

It belongs with the audio, iot & wireless and dev boards & breakouts designs in this gallery.

From the project

A breakout board designed using KiCad. AIM: test out Auracast protocols to (eventually) build a Bluetooth speaker.

A breakout board designed using KiCad. AIM: test out Auracast protocols to (eventually) build a Bluetooth speaker

This repository contains the design files for a custom breakout board created in KiCad. The board is intended for evaluating the Feasycom FSC-BT1038B module. All pins are broken out and grouped for your convenience.

- Modern IC: board based on the QCC3084 IC by Qualcomm. - (Relatively) Compact Design: ~60x45mm - Voltage Compatibility: it accepts 5v USB, stepped to 3.3v via an AMS1117. The FSC-BT1038B offers additional 1.8v out (TP1) and 3.3v out (~50mA max, TP2). - Pinout: all…

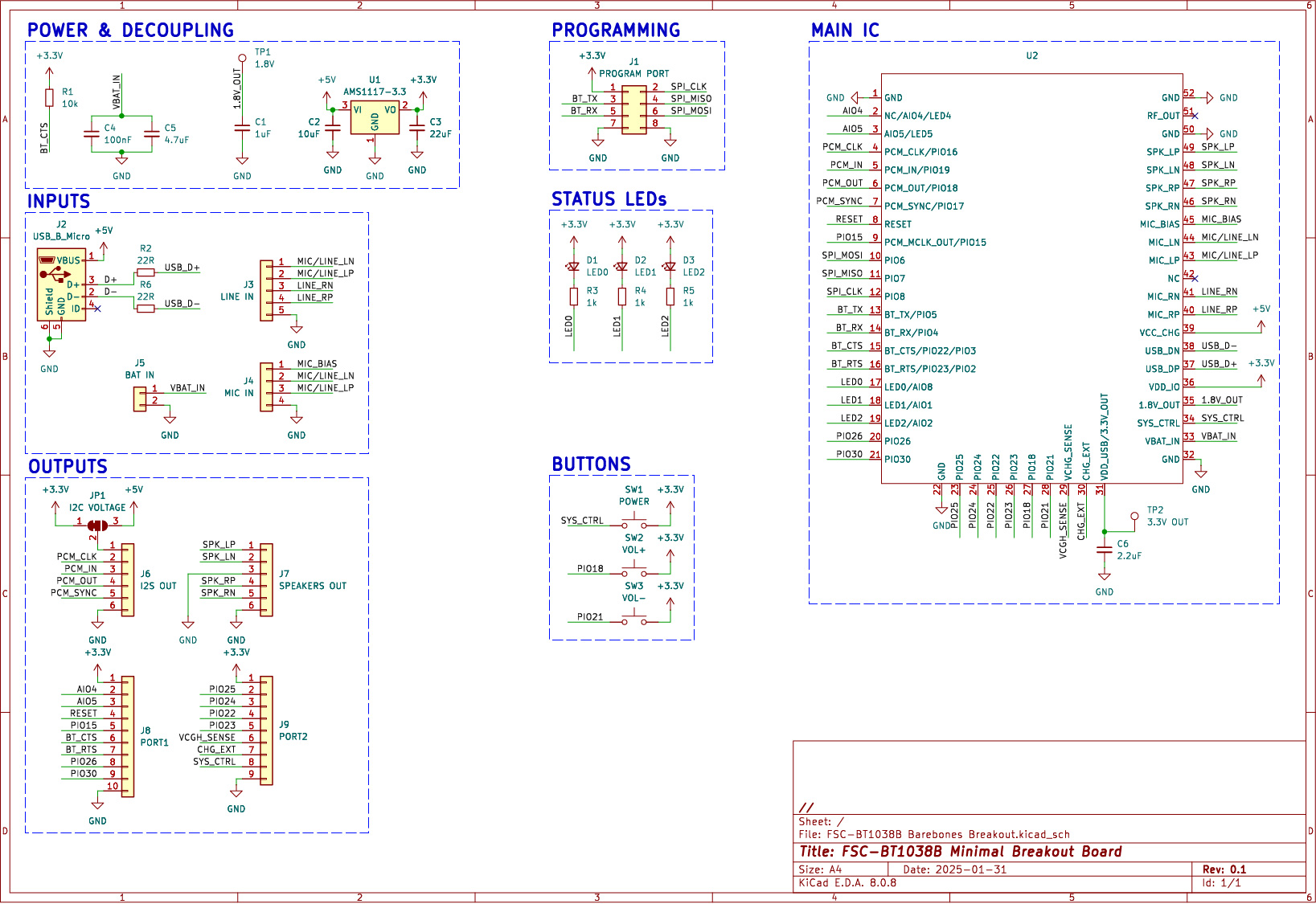

FSC-BT1038B-Barebones-Breakout, from the project README — From the project README

Main components on the FSC-BT1038B-Barebones-Breakout

FSC-BT1038B-Barebones-Breakout bill of materials (BOM)

29 components, 26 distinct parts.

Qty	Part	Footprint	Refs
1	AMS1117-3.3	SOT-223-3_TabPin2	U1
1	~	FSC-BT1038B	U2
1	PROGRAM PORT	PinSocket_2x04_P2.54mm_Vertical	J1
1	USB_B_Micro	KH-MICRO5P-JN	J2
1	LINE IN	PinSocket_1x05_P2.54mm_Vertical	J3
1	MIC IN	PinSocket_1x04_P2.54mm_Vertical	J4
1	BAT IN	PinSocket_1x02_P2.54mm_Vertical	J5
1	I2S OUT	PinSocket_1x06_P2.54mm_Vertical	J6
1	SPEAKERS OUT	PinSocket_1x06_P2.54mm_Vertical	J7
1	PORT1	PinSocket_1x10_P2.54mm_Vertical	J8
1	PORT2	PinSocket_1x09_P2.54mm_Vertical	J9
1	POWER	TS3425BA	SW1
1	VOL+	TS3425BA	SW2
1	VOL-	TS3425BA	SW3
1	LED0	LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder	D1
1	LED1	LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder	D2
1	LED2	LED_0603_1608Metric_Pad1.05x0.95mm_HandSolder	D3
1	1uF	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C1
1	10uF	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C2
1	22uF	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C3

Show 6 more

Qty	Part	Footprint	Refs
1	100nF	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C4
1	4.7uF	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C5
1	2.2uF	C_0603_1608Metric_Pad1.08x0.95mm_HandSolder	C6
1	10k	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	R1
2	22R	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	R2, R6
3	1k	R_0603_1608Metric_Pad0.98x0.95mm_HandSolder	R3, R4, R5

FSC-BT1038B-Barebones-Breakout design files

The KiCad project lives in the fsanzeni/FSC-BT1038B-Barebones-Breakout repository on GitHub; these links point at the commit this page was built from.

FSC-BT1038B-Barebones-Breakout: common questions

How big is the FSC-BT1038B-Barebones-Breakout?

The FSC-BT1038B-Barebones-Breakout measures 59.9 × 45.2 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the FSC-BT1038B-Barebones-Breakout?

29 components, from 26 distinct parts. The full bill of materials is listed on this page.

Where can I download the FSC-BT1038B-Barebones-Breakout design files?

From the fsanzeni/FSC-BT1038B-Barebones-Breakout repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the FSC-BT1038B-Barebones-Breakout design in my own project?

The repository has no license, so all rights stay with fsanzeni. Use it as a reference, and ask the author before reusing the design.
