DIN RAIL POE INJECTOR SLIM
About the DIN RAIL POE INJECTOR SLIM PCB
DIN RAIL POE INJECTOR SLIM is an open source PCB design by galopago, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 20 × 72 mm, with 6 components from 5 distinct parts.
By type, the board carries 3 connectors, 1 fuse, 1 diode and 1 resistor.
From the project
Collection of electronic circuits for DIN RAIL mount

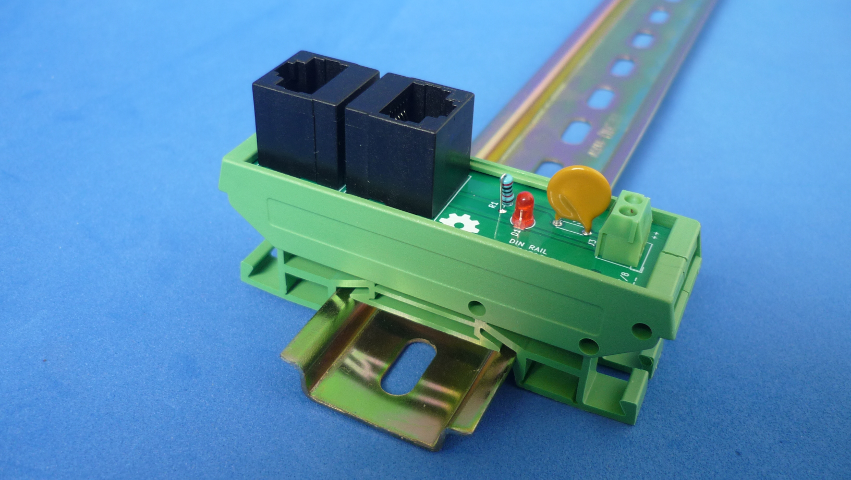

Passive PoE injector, din rail mountable. slim 20 x 72 mm aprox. Up to 48V, led indicator, 1.1 A 72V polyfuse protection.
Read this in other languages: Español ## How to use this repository
The root folder contains KiCad files: project, schematic and PCB gerber/single directory contains ready to manufacture files, for a single board. gerber/panel100mmx100mm directory contains ready to manufacture files that fits in a 100mm x 100mm panel (use Vcuts!). * docs additional files
DIN RAIL POE INJECTOR SLIM bill of materials (BOM)
6 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | RJ45 | RJ45_OST_PJ012-8P8CX_Vertical | J1, J2 |
| 1 | Conn_01x02_Female | TerminalBlock_4Ucon_1x02_P3.50mm_Horizontal | J3 |
| 1 | Polyfuse_Small | C_Disc_D4.3mm_W1.9mm_P5.00mm | F1 |
| 1 | LED_Small | LED_D3.0mm | D1 |
| 1 | R | R_Axial_DIN0204_L3.6mm_D1.6mm_P2.54mm_Vertical | R1 |
DIN RAIL POE INJECTOR SLIM design files
The KiCad project lives in the galopago/din-rail-circuits repository on GitHub; these links point at the commit this page was built from.
DIN RAIL POE INJECTOR SLIM: common questions
How big is the DIN RAIL POE INJECTOR SLIM PCB?
The DIN RAIL POE INJECTOR SLIM measures 20 × 72 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the DIN RAIL POE INJECTOR SLIM?
6 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the DIN RAIL POE INJECTOR SLIM design files?
From the galopago/din-rail-circuits repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the DIN RAIL POE INJECTOR SLIM design in my own project?
Yes, under the terms of its CC-BY-4.0 license, which galopago chose for the repository.
