INRUSH CURRENT LIMITER

galopago·din-rail-circuits·INRUSH_CURRENT_LIMITER_SLIM/INRUSH_CURRENT_LIMITER_SLIM.kicad_pcb

INRUSH CURRENT LIMITER PCB layout, top view — open source board by galopago

About the INRUSH CURRENT LIMITER PCB

INRUSH CURRENT LIMITER is an open source PCB design by galopago, published on GitHub under the CC-BY-4.0 license. It is a 2-layer board measuring 72 × 20 mm, with 7 components from 5 distinct parts.

From the project

Collection of electronic circuits for DIN RAIL mount

Inrush current limiter, din rail mountable. slim 20 x 72 mm aprox. Compatible with NTC 20D and 15D.

Read this in other languages: Español ## How to use this repository

The root folder contains KiCad files: project, schematic and PCB gerber/single directory contains ready to manufacture files, for a single board. gerber/panel100mmx100mm directory contains ready to manufacture files that fits in a 100mm x 100mm panel (use Vcuts!). * docs additional files

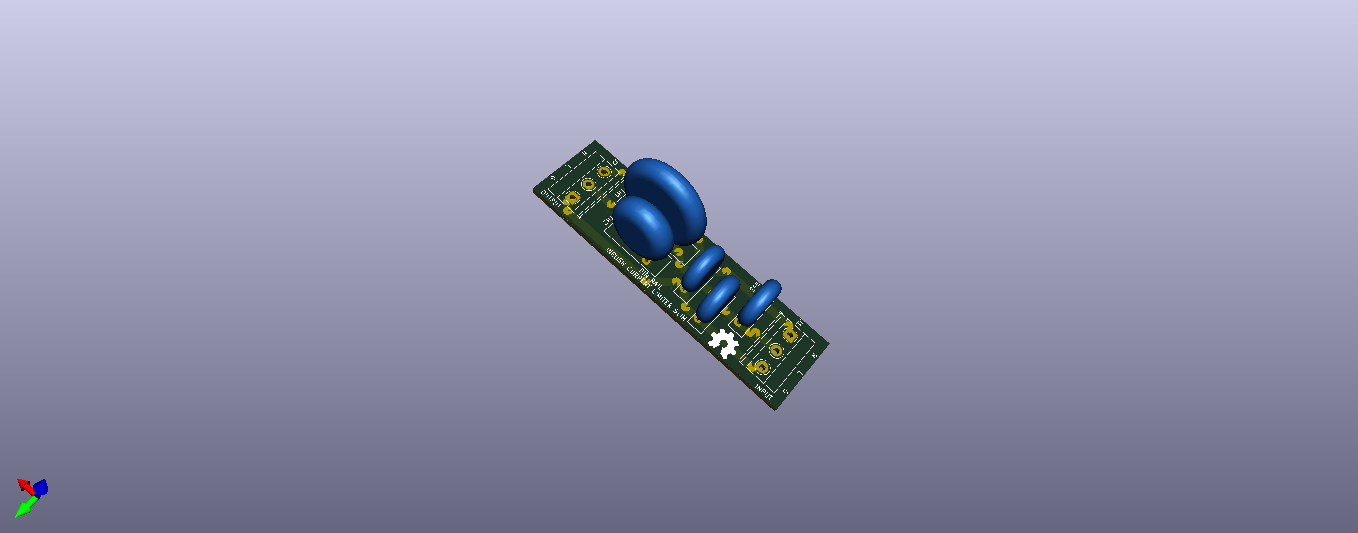

INRUSH CURRENT LIMITER, from the project README
From the project README

INRUSH CURRENT LIMITER bill of materials (BOM)

7 components, 5 distinct parts.

QtyPartRefs
1
IN
J1
1
OUT
J2
3
10D241K
RV1, RV2, RV3
1
NTC 20D-20
TH1
1
NTC 15D-15
TH2

INRUSH CURRENT LIMITER design files

The KiCad project lives in the galopago/din-rail-circuits repository on GitHub; these links point at the commit this page was built from.

INRUSH CURRENT LIMITER: common questions

How big is the INRUSH CURRENT LIMITER PCB?

The INRUSH CURRENT LIMITER measures 72 × 20 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the INRUSH CURRENT LIMITER?

7 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the INRUSH CURRENT LIMITER design files?

From the galopago/din-rail-circuits repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the INRUSH CURRENT LIMITER design in my own project?

Yes, under the terms of its CC-BY-4.0 license, which galopago chose for the repository.
