028INCH 8DIGIT

galopago·panel-mount-7-segment-display·028-inch-8-digit/028INCH_8DIGIT.kicad_pcb

028INCH 8DIGIT PCB layout, top view — open source board by galopago
Simulate this board

About the 028INCH 8DIGIT PCB

028INCH 8DIGIT is an open source PCB design by galopago, published on GitHub under the MIT license. It is a 2-layer board measuring 43.8 × 21 mm, with 6 components from 5 distinct parts.

Other key parts include the MAX7219 and CC56-12CGKWA. By type, the board carries 3 ICs, 2 connectors and 1 resistor.

It belongs with the displays & leds designs in this gallery.

From the project

Open source 7 segment serially controlled led display that fits inside a generic 45x26mm panel mount plastic enclosure. Upgrade your function specific panel meter PCB with a new one controllable by your preferred MCU.

Open source 7 segment serially controlled led display that fits inside a generic 45x26mm panel mount plastic enclosure. Based on MAX7219 chip. This IC is controlled by a serial SPI bus.

PCB FRONT | PCB BACK ----------------------------------------------|---------------------------------------------- |

The display can be now controlled by Arduino (or any other) boards via serial bus, using a library written for led display modules based on MAX7219 chip.

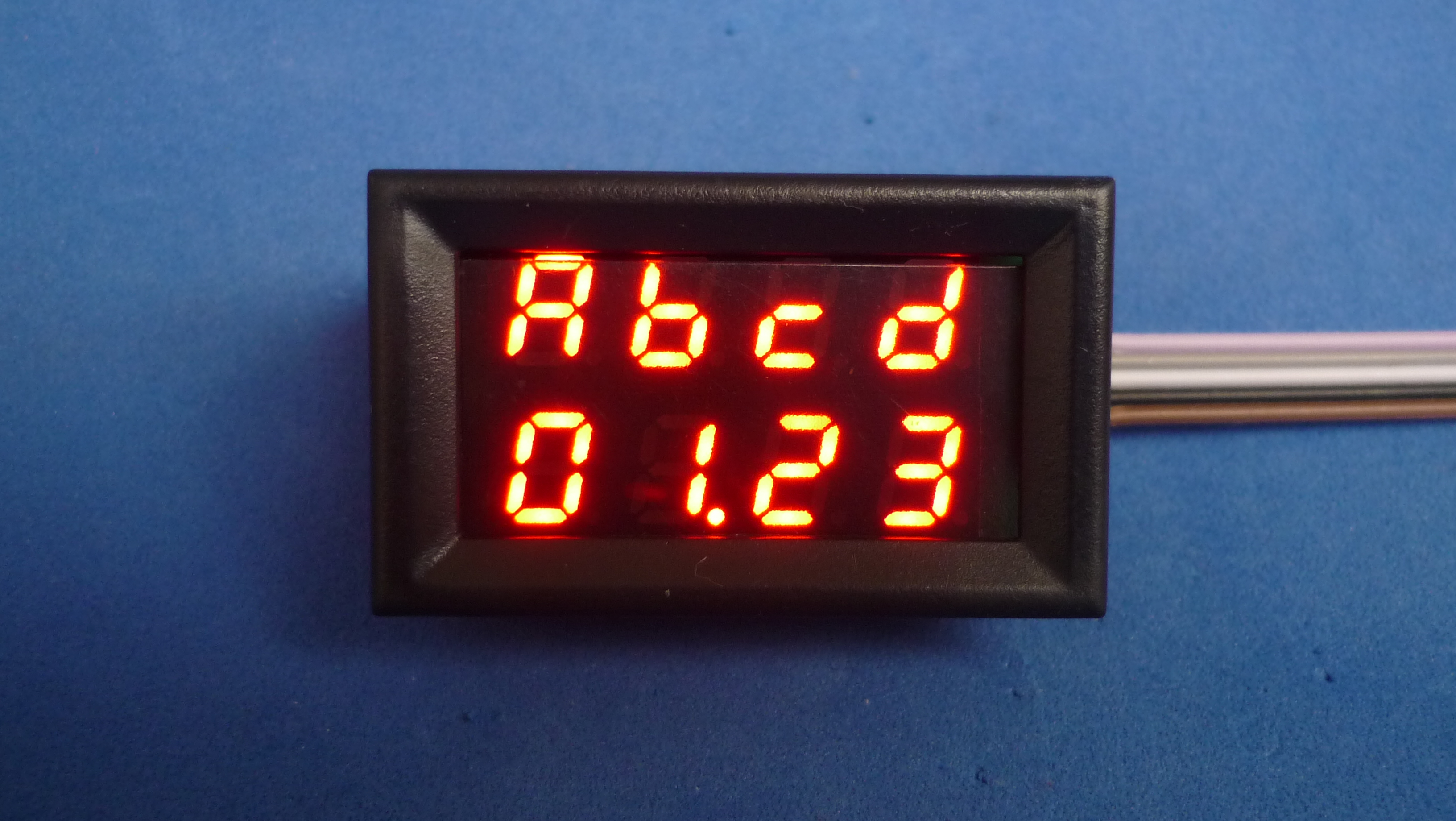

028INCH 8DIGIT, from the project README
From the project README

Main components on the 028INCH 8DIGIT

MAX7219CC56-12CGKWA

028INCH 8DIGIT bill of materials (BOM)

6 components, 5 distinct parts.

QtyPartRefs
1
MAX7219
U1
2
CC56-12CGKWA
U2, U3
1
Conn_01x05_Female
J1
1
Conn_01x05_Male
J2
1
10k
R1

028INCH 8DIGIT design files

The KiCad project lives in the galopago/panel-mount-7-segment-display repository on GitHub; these links point at the commit this page was built from.

028INCH 8DIGIT: common questions

How big is the 028INCH 8DIGIT PCB?

The 028INCH 8DIGIT measures 43.8 × 21 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 028INCH 8DIGIT?

6 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the 028INCH 8DIGIT design files?

From the galopago/panel-mount-7-segment-display repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 028INCH 8DIGIT design in my own project?

Yes, under the terms of its MIT license, which galopago chose for the repository.
