Panel mount oled display display board

galopago·panel-mount-oled-display·display-board/panel-mount-oled-display-display-board.kicad_pcb

Panel mount oled display display board layout, top view — open source board by galopago
Simulate this board

About the Panel mount oled display display board

Panel mount oled display display board is an open source PCB design by galopago, published on GitHub. It is a 2-layer board measuring 40.2 × 21.1 mm, with 32 components from 7 distinct parts.

Other key parts include the XC6206PxxxMR. By type, the board carries 12 resistors, 9 capacitors, 7 diodes, 2 connectors, 1 IC and 1 LED.

It belongs with the displays & leds designs in this gallery.

From the project

Open-source KiCad designs for a two-board stack that drives a bare 0.96" I2C OLED (128×64) with screw terminals. The boards are meant to fit a 48×29 mm panel-mount enclosure; this repository contains the PCB sources and Gerbers only.

Open-source KiCad designs for a two-board stack that drives a bare 0.96" I2C OLED (128×64) with screw terminals. The boards are meant to fit a 48×29 mm panel-mount enclosure; this repository contains the PCB sources and Gerbers only.

Full project guide (assembly, enclosure, BOM with buy links, practical notes): Panel-mount 0.96" bare OLED with screw terminals

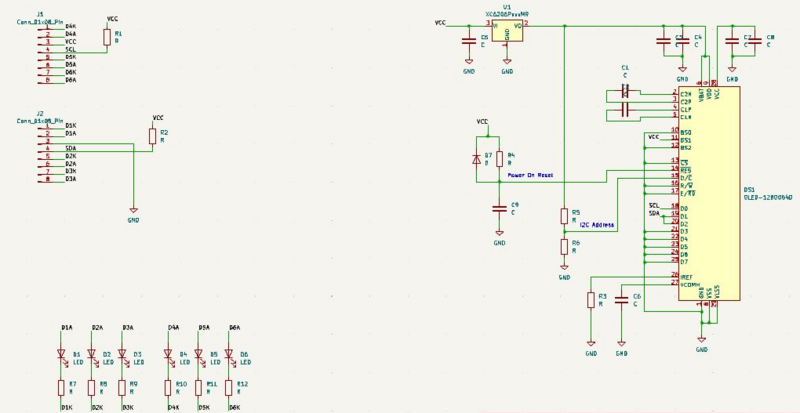

Panel mount oled display display board, from the project README
From the project README

Main components on the Panel mount oled display display board

XC6206PxxxMR

Panel mount oled display display board bill of materials (BOM)

32 components, 7 distinct parts.

QtyPartRefs
1
XC6206PxxxMR
U1
2
Conn_01x08_Pin
J1, J2
1
OLED-128O064D
DS1
6
LED
D1, D2, D3, D4, D5, D6
1
D
D7
9
C
C1, C2, C3, C4, C5, C6, C7, C8 +1
12
R
R1, R2, R3, R4, R5, R6, R7, R8 +4

Panel mount oled display display board design files

The KiCad project lives in the galopago/panel-mount-oled-display repository on GitHub; these links point at the commit this page was built from.

Panel mount oled display display board: common questions

How big is the Panel mount oled display display board?

The Panel mount oled display display board measures 40.2 × 21.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Panel mount oled display display board?

32 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Panel mount oled display display board design files?

From the galopago/panel-mount-oled-display repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Panel mount oled display display board design in my own project?

The repository has no license, so all rights stay with galopago. Use it as a reference, and ask the author before reusing the design.
