KFDToolSW NET4.0 PCB layout, top view — open source AVR/Arduino board by gatekeep

About the KFDToolSW NET4.0 PCB

KFDToolSW NET4.0 is an open source AVR/Arduino PCB design by gatekeep, published on GitHub under the MIT license. It is a 2-layer board measuring 68.6 × 53.3 mm, with 34 components from 21 distinct parts.

Its main chip is the Arduino_1pin, from the AVR/Arduino family. By type, the board carries 12 resistors, 11 connectors, 5 diodes, 4 switches and 2 transistors.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Quick test to see feasibility to downgrade the KFDTool GUI to .NET 4.0

A fork of the amazing KFDTool software for an Arduino, plus schematics and board files for a shield.

Completed shields can be purchased from the online store

Note: You must use the build of the KFDTool software attached to this GitHub repo in order for your homebrew adapter to work. The stock KFDTool software will not find your Arduino.

Currently, the following boards have been tested and confirmed to work:

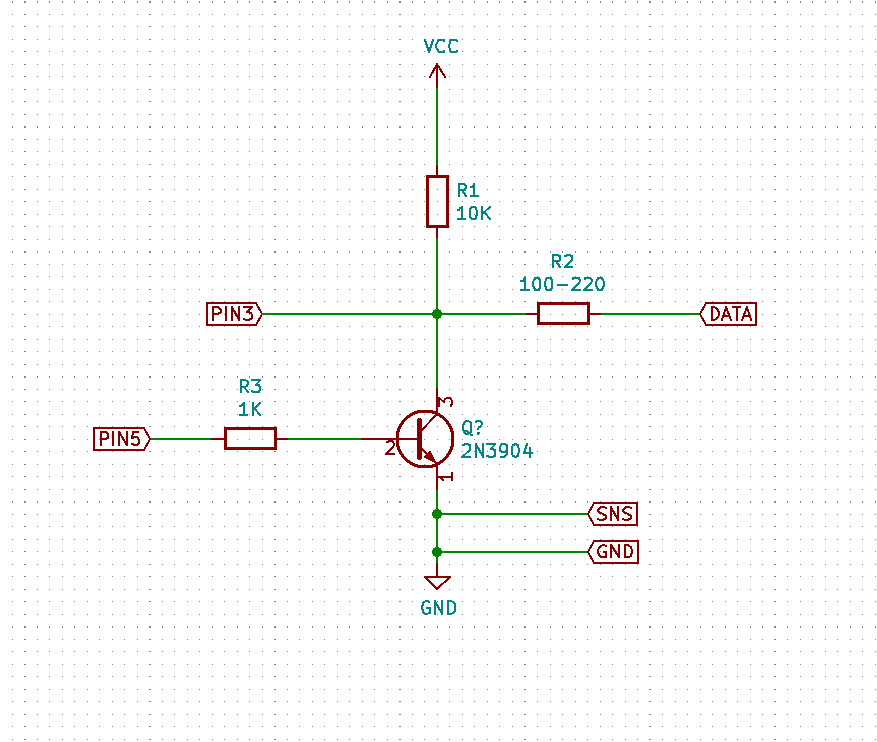

KFDToolSW NET4.0, from the project README
From the project README

KFDToolSW NET4.0 bill of materials (BOM)

34 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
MMBT3904LT1G
Central Semiconductor Corp
Q1, Q2
1
1844223
MR_Block
Molex
J1
1
OLED
None
J2
1
MR_Jack
J3
1
RS1-08-G-.561-A11596
Power
P1
1
RS1-06-G-.561-A11596
Analog
P2
1
RS1-10-G-.561-A11598
Digital
P3
1
RS1-08-G-.561-A11597
Digital
P4
4
CONN_01X01
P5, P6, P7, P8
1
TL3301AF160QG
SW_Push
SW1
1
1TS002B-2600-5000-CT
Up
SW2
1
1TS002B-2600-5000-CT
Down
SW3
1
1TS002B-2600-5000-CT
Enter
SW4
2
MMSZ5232BS_R1_00001
D_Zener
D1, D2
1
SML-D12P8WT86
PWR
D3
1
SML-D12U1WT86
ACT
D4
1
SML-D12Y1WT86
SNS
D5
5
RMCF0603FT10K0
10K
YAGEO
R1, R4, R10, R11, R12
2
RMCF0603JT220R
220
YAGEO
R2, R5
2
RMCF0603FT1K00
1K
YAGEO
R3, R6
Show 1 more
QtyPartRefs
3
RMCF0603JT470R
470
YAGEO
R7, R8, R9

KFDToolSW NET4.0 design files

The KiCad project lives in the gatekeep/KFDToolSW_NET4.0 repository on GitHub; these links point at the commit this page was built from.

KFDToolSW NET4.0: common questions

What microcontroller does the KFDToolSW NET4.0 use?

The KFDToolSW NET4.0 is built around the Arduino_1pin, from the AVR/Arduino family.

How big is the KFDToolSW NET4.0 PCB?

The KFDToolSW NET4.0 measures 68.6 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KFDToolSW NET4.0?

34 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the KFDToolSW NET4.0 design files?

From the gatekeep/KFDToolSW_NET4.0 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the KFDToolSW NET4.0 design in my own project?

Yes, under the terms of its MIT license, which gatekeep chose for the repository.

Can I test firmware for the KFDToolSW NET4.0 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
